R161332000

Active

Radiall USA, Inc.

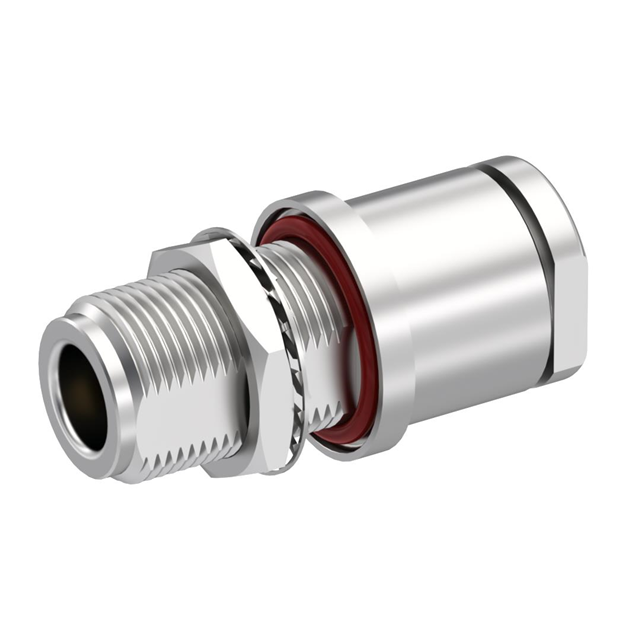

N F ST BHDP CL 10+11/50+75 C50

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R161332000

Body Material	Brass
Cable Group	214, 393, RG-213
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Includes	1 Connector, 1 Lockwasher, 1 Gaskets, 1 Nut, 1 Clamp Nut, 1 Braid Clamp, 1 Contact
Ingress Protection	IP67 - Dust Tight, Waterproof
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Clamp
Voltage Rating	1400 V

R16133 Series

Part	Body Material	Mounting Feature	Shield Termination	Center Contact Material	Connector Style	Cable Group	Housing Color	Insertion Loss	Body Finish	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]	Ingress Protection	Contact Termination	Dielectric Material	Center Contact Plating	Connector Type	Voltage Rating	Number of Ports	Mating Cycles	Impedance	Cable Group	Includes
Radiall USA, Inc. R161331200W	Brass	Bulkhead - Front Side Nut	Crimp	Beryllium Copper	N Type	225 RG-214	Silver	0.15 dB	White Bronze	155 °C	-55 °C	11 GHz	IP67 - Dust Tight Waterproof	Crimp	Polytetrafluoroethylene (PTFE)	Gold	Female Socket Jack	1400 V	1	500	50 Ohms
Radiall USA, Inc. R161337200	Brass	Bulkhead - Front Side Nut	Solder	Beryllium Copper	N Type	RG-401	Silver	0.15 dB	White Bronze	105 ░C	-55 °C	11 GHz		Solder	Polytetrafluoroethylene (PTFE)	Gold	Female Socket Jack	1400 V	1	500	50 Ohms	0.25 in
Radiall USA, Inc. R161336000W	Brass	Bulkhead - Front Side Nut	Solder	Beryllium Copper	N Type		Silver	0.15 dB	White Bronze	105 ░C	-55 °C	11 GHz	IP67 - Dust Tight Waterproof	Solder	Polytetrafluoroethylene (PTFE)	Gold	Female Socket Jack	335 V	1	500	50 Ohms
Radiall USA, Inc. R161336200	Brass	Bulkhead - Rear Side Nut	Solder	Beryllium Copper	N Type		Silver	0.15 dB	White Bronze	105 ░C	-55 °C	11 GHz	IP67 - Dust Tight Waterproof	Solder	Polytetrafluoroethylene (PTFE)	Gold	Female Socket Jack	335 V	1	500	50 Ohms
Radiall USA, Inc. R161332000	Brass	Bulkhead - Front Side Nut	Clamp	Beryllium Copper	N Type	214 393 RG-213				155 °C	-55 °C	11 GHz	IP67 - Dust Tight Waterproof	Solder	Polytetrafluoroethylene (PTFE)	Gold	Female Socket Jack	1400 V	1	500	50 Ohms		1 Braid Clamp 1 Clamp Nut 1 Connector 1 Contact 1 Gaskets 1 Lockwasher 1 Nut
Radiall USA, Inc. R161336200W	Brass	Bulkhead - Rear Side Nut	Solder	Beryllium Copper	N Type		Silver	0.15 dB	White Bronze	105 ░C	-55 °C	11 GHz	IP67 - Dust Tight Waterproof	Solder	Polytetrafluoroethylene (PTFE)	Gold	Female Socket Jack	335 V	1	500	50 Ohms
Radiall USA, Inc. R161337200W	Brass	Bulkhead - Front Side Nut	Solder	Beryllium Copper	N Type	RG-401	Silver	0.15 dB	White Bronze	105 ░C	-55 °C	11 GHz		Solder	Polytetrafluoroethylene (PTFE)	Gold	Female Socket Jack	1400 V	1	500	50 Ohms	0.25 in
Radiall USA, Inc. R161335200W	Brass	Bulkhead - Front Side Nut	Solder	Beryllium Copper	N Type	RG-405 (.085" Semi Rigid)	Silver	0.15 dB	White Bronze	155 °C	-55 °C	11 GHz	IP67 - Dust Tight Waterproof	Solder	Polytetrafluoroethylene (PTFE)	Gold	Female Socket Jack	335 V	1	500	50 Ohms
Radiall USA, Inc. R161331060	Brass	Bulkhead - Front Side Nut	Crimp		N Type	LMR-400	Silver	0.15 dB	White Bronze	155 °C	-55 °C	11 GHz	IP67 - Dust Tight Waterproof	Crimp	Polytetrafluoroethylene (PTFE)	Gold	Female Socket Jack	1000 VDC	1	500	50 Ohms
Radiall USA, Inc. R161335200	Brass	Bulkhead - Front Side Nut	Solder	Beryllium Copper	N Type	RG-405 (.085" Semi Rigid)	Silver	0.15 dB	White Bronze	155 °C	-55 °C	11 GHz	IP67 - Dust Tight Waterproof	Solder	Polytetrafluoroethylene (PTFE)	Gold	Female Socket Jack	335 V	1	500	50 Ohms
