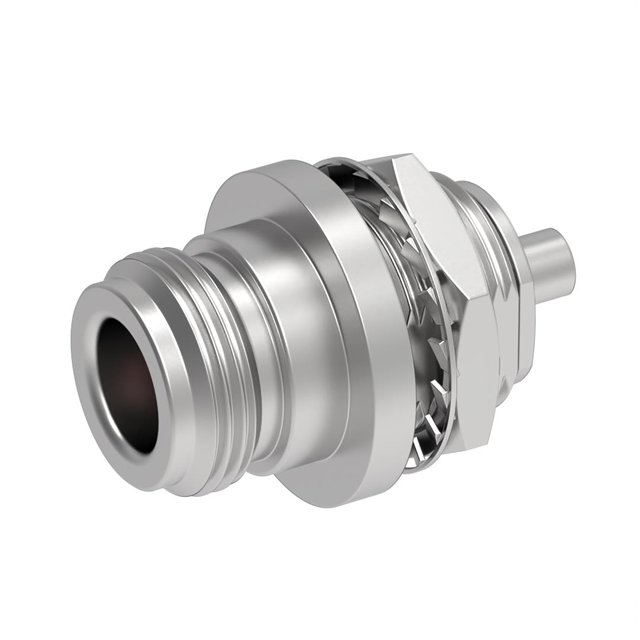

Specification	R161336200

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-402
Cable Group Diameter (Semi Rigid)	0.141 in
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Jack, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	11 GHz
Housing Color	Silver
Impedance	50 Ohm
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insertion Loss	0.15 dB
Mating Cycles	500 cycles
Mounting Feature	Rear Side Nut, Bulkhead
Mounting Type	Panel Mount
Number of Ports	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Shield Termination	Solder
Voltage Rating	335 V

R16133 Series

Part	Mounting Type	Connector Type	Ingress Protection Description	Ingress Protection IP Rating	Mounting Feature	Shield Termination	Impedance	Cable Group	Fastening Type	Contact Termination	Center Contact Material	Frequency - Max	Connector Style	Number of Ports	Housing Color	Mating Cycles	Operating Temperature (Max)	Operating Temperature (Min)	Center Contact Plating	Body Finish	Dielectric Material	Insertion Loss	Body Material	Voltage Rating	Cable Group Diameter (Semi Rigid)	Includes	Includes Total Count
Radiall USA, Inc. R161331200W	Panel Mount	Female Socket Jack	Dust Tight Waterproof	IP67	Bulkhead Front Side Nut	Crimp	50 Ohm	225 RG-214	Threaded	Crimp	Beryllium Copper	11 GHz	N Type	1	Silver	500 cycles	155 °C	-55 °C	Gold	White Bronze	Polytetrafluoroethylene (PTFE)	0.15 dB	Brass	1400 V
Radiall USA, Inc. R161337200	Panel Mount	Female Socket Jack			Bulkhead Front Side Nut	Solder	50 Ohm	RG-401	Threaded	Solder	Beryllium Copper	11 GHz	N Type	1	Silver	500 cycles	105 °C	-55 °C	Gold	White Bronze	Polytetrafluoroethylene (PTFE)	0.15 dB	Brass	1400 V	0.25 in
Radiall USA, Inc. R161336000W	Panel Mount	Female Socket Jack	Dust Tight Waterproof	IP67	Bulkhead Front Side Nut	Solder	50 Ohm	RG-402	Threaded	Solder	Beryllium Copper	11 GHz	N Type	1	Silver	500 cycles	105 °C	-55 °C	Gold	White Bronze	Polytetrafluoroethylene (PTFE)	0.15 dB	Brass	335 V	0.141 in
Radiall USA, Inc. R161336200	Panel Mount	Female Socket Jack	Dust Tight Waterproof	IP67	Bulkhead Rear Side Nut	Solder	50 Ohm	RG-402	Threaded	Solder	Beryllium Copper	11 GHz	N Type	1	Silver	500 cycles	105 °C	-55 °C	Gold	White Bronze	Polytetrafluoroethylene (PTFE)	0.15 dB	Brass	335 V	0.141 in
Radiall USA, Inc. R161332000	Panel Mount	Female Socket Jack	Dust Tight Waterproof	IP67	Bulkhead Front Side Nut	Clamp	50 Ohm	214 393 RG-213	Threaded	Solder	Beryllium Copper	11 GHz	N Type	1		500 cycles	155 °C	-55 °C	Gold		Polytetrafluoroethylene (PTFE)		Brass	1400 V		Braid Clamp Clamp Nut Connector Contact Gaskets Lockwasher Nut	7 pcs
Radiall USA, Inc. R161336200W	Panel Mount	Female Socket Jack	Dust Tight Waterproof	IP67	Bulkhead Rear Side Nut	Solder	50 Ohm	RG-402	Threaded	Solder	Beryllium Copper	11 GHz	N Type	1	Silver	500 cycles	105 °C	-55 °C	Gold	White Bronze	Polytetrafluoroethylene (PTFE)	0.15 dB	Brass	335 V	0.141 in
Radiall USA, Inc. R161337200W	Panel Mount	Female Socket Jack			Bulkhead Front Side Nut	Solder	50 Ohm	RG-401	Threaded	Solder	Beryllium Copper	11 GHz	N Type	1	Silver	500 cycles	105 °C	-55 °C	Gold	White Bronze	Polytetrafluoroethylene (PTFE)	0.15 dB	Brass	1400 V	0.25 in
Radiall USA, Inc. R161335200W	Panel Mount	Female Socket Jack	Dust Tight Waterproof	IP67	Bulkhead Front Side Nut	Solder	50 Ohm	RG-405	Threaded	Solder	Beryllium Copper	11 GHz	N Type	1	Silver	500 cycles	155 °C	-55 °C	Gold	White Bronze	Polytetrafluoroethylene (PTFE)	0.15 dB	Brass	335 V	0.085 in
Radiall USA, Inc. R161331060	Panel Mount	Female Socket Jack	Dust Tight Waterproof	IP67	Bulkhead Front Side Nut	Crimp	50 Ohm	LMR-400	Threaded	Crimp		11 GHz	N Type	1	Silver	500 cycles	155 °C	-55 °C	Gold	White Bronze	Polytetrafluoroethylene (PTFE)	0.15 dB	Brass	1000 V
Radiall USA, Inc. R161335200	Panel Mount	Female Socket Jack	Dust Tight Waterproof	IP67	Bulkhead Front Side Nut	Solder	50 Ohm	RG-405	Threaded	Solder	Beryllium Copper	11 GHz	N Type	1	Silver	500 cycles	155 °C	-55 °C	Gold	White Bronze	Polytetrafluoroethylene (PTFE)	0.15 dB	Brass	335 V	0.085 in
