R161337200

Active

Radiall USA, Inc.

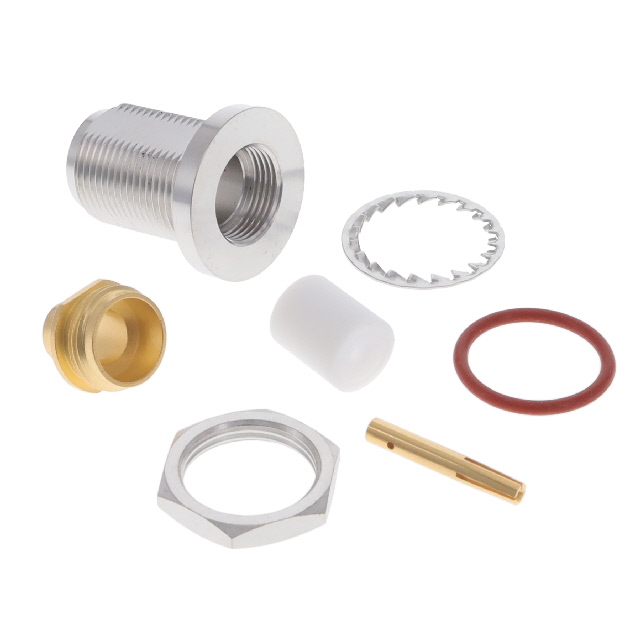

N / STRAIGHT BULKHEAD JACK PANEL

Deep-Dive with AI

Search across all available documentation for this part.

R161337200

Active

Radiall USA, Inc.

N / STRAIGHT BULKHEAD JACK PANEL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R161337200

Body Finish	White Bronze
Body Material	Brass
Cable Group	0.25 in
Cable Group	RG-401
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	1400 V

R16133 Series

Part	Body Material	Mounting Feature	Shield Termination	Center Contact Material	Connector Style	Cable Group	Housing Color	Insertion Loss	Body Finish	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]	Ingress Protection	Contact Termination	Dielectric Material	Center Contact Plating	Connector Type	Voltage Rating	Number of Ports	Mating Cycles	Impedance	Cable Group	Includes
Radiall USA, Inc. R161331200W	Brass	Bulkhead - Front Side Nut	Crimp	Beryllium Copper	N Type	225 RG-214	Silver	0.15 dB	White Bronze	155 °C	-55 °C	11 GHz	IP67 - Dust Tight Waterproof	Crimp	Polytetrafluoroethylene (PTFE)	Gold	Female Socket Jack	1400 V	1	500	50 Ohms
Radiall USA, Inc. R161337200	Brass	Bulkhead - Front Side Nut	Solder	Beryllium Copper	N Type	RG-401	Silver	0.15 dB	White Bronze	105 ░C	-55 °C	11 GHz		Solder	Polytetrafluoroethylene (PTFE)	Gold	Female Socket Jack	1400 V	1	500	50 Ohms	0.25 in
Radiall USA, Inc. R161336000W	Brass	Bulkhead - Front Side Nut	Solder	Beryllium Copper	N Type		Silver	0.15 dB	White Bronze	105 ░C	-55 °C	11 GHz	IP67 - Dust Tight Waterproof	Solder	Polytetrafluoroethylene (PTFE)	Gold	Female Socket Jack	335 V	1	500	50 Ohms
Radiall USA, Inc. R161336200	Brass	Bulkhead - Rear Side Nut	Solder	Beryllium Copper	N Type		Silver	0.15 dB	White Bronze	105 ░C	-55 °C	11 GHz	IP67 - Dust Tight Waterproof	Solder	Polytetrafluoroethylene (PTFE)	Gold	Female Socket Jack	335 V	1	500	50 Ohms
Radiall USA, Inc. R161332000	Brass	Bulkhead - Front Side Nut	Clamp	Beryllium Copper	N Type	214 393 RG-213				155 °C	-55 °C	11 GHz	IP67 - Dust Tight Waterproof	Solder	Polytetrafluoroethylene (PTFE)	Gold	Female Socket Jack	1400 V	1	500	50 Ohms		1 Braid Clamp 1 Clamp Nut 1 Connector 1 Contact 1 Gaskets 1 Lockwasher 1 Nut
Radiall USA, Inc. R161336200W	Brass	Bulkhead - Rear Side Nut	Solder	Beryllium Copper	N Type		Silver	0.15 dB	White Bronze	105 ░C	-55 °C	11 GHz	IP67 - Dust Tight Waterproof	Solder	Polytetrafluoroethylene (PTFE)	Gold	Female Socket Jack	335 V	1	500	50 Ohms
Radiall USA, Inc. R161337200W	Brass	Bulkhead - Front Side Nut	Solder	Beryllium Copper	N Type	RG-401	Silver	0.15 dB	White Bronze	105 ░C	-55 °C	11 GHz		Solder	Polytetrafluoroethylene (PTFE)	Gold	Female Socket Jack	1400 V	1	500	50 Ohms	0.25 in
Radiall USA, Inc. R161335200W	Brass	Bulkhead - Front Side Nut	Solder	Beryllium Copper	N Type	RG-405 (.085" Semi Rigid)	Silver	0.15 dB	White Bronze	155 °C	-55 °C	11 GHz	IP67 - Dust Tight Waterproof	Solder	Polytetrafluoroethylene (PTFE)	Gold	Female Socket Jack	335 V	1	500	50 Ohms
Radiall USA, Inc. R161331060	Brass	Bulkhead - Front Side Nut	Crimp		N Type	LMR-400	Silver	0.15 dB	White Bronze	155 °C	-55 °C	11 GHz	IP67 - Dust Tight Waterproof	Crimp	Polytetrafluoroethylene (PTFE)	Gold	Female Socket Jack	1000 VDC	1	500	50 Ohms
Radiall USA, Inc. R161335200	Brass	Bulkhead - Front Side Nut	Solder	Beryllium Copper	N Type	RG-405 (.085" Semi Rigid)	Silver	0.15 dB	White Bronze	155 °C	-55 °C	11 GHz	IP67 - Dust Tight Waterproof	Solder	Polytetrafluoroethylene (PTFE)	Gold	Female Socket Jack	335 V	1	500	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 37.30
		10	$ 32.66
		25	$ 31.25
		50	$ 30.24
		100	$ 29.23
		250	$ 27.62

Description

General part information

R16133 Series

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder
