45120-010030-7700/20-F-36
Unknown3M (TC)

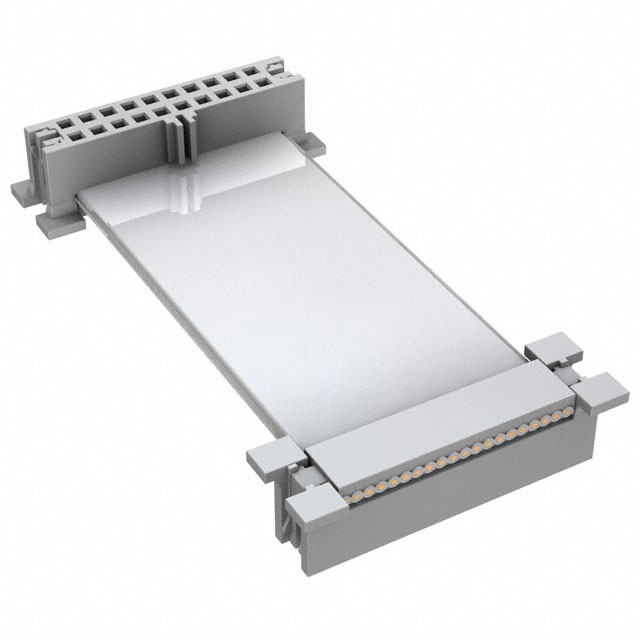

CABLE ASSY 20 POS 36" PINOUT-F
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
45120-010030-7700/20-F-36
Unknown3M (TC)
CABLE ASSY 20 POS 36" PINOUT-F
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 45120-010030-7700/20-F-36 |
|---|---|
| Cable Termination | IDC |
| Connector Type | Socket to Socket, Reversed |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Polarizing Key |
| Length [x] | 3 ft |
| Length [x] | 914.4 mm |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Pitch - Cable | 0.64 mm |
| Pitch - Cable [x] | 0.025 in |
| Pitch - Connector | 0.05 in |
| Pitch - Connector | 1.27 mm |
| Shielding | Unshielded |
45120 Series
| Part | Pitch - Connector | Pitch - Connector | Features | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Length | Length | Number of Positions | Shielding | Number of Rows | Connector Type | Pitch - Cable [x] | Pitch - Cable | Cable Termination | Pitch [x] | Pitch [x] | Mounting Type | Wire Gauge | Row Spacing | Row Spacing | Wire Type | Contact Type | Length [x] | Length [x] | Length | Length | Fastening Type | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | 0.05 in | 1.27 mm | Polarizing Key | 0.76 Ám | 30 Áin | Gold | 1 ft | 304.8 mm | 20 | Unshielded | 2 | Socket to Socket | 0.025 in | 0.64 mm | IDC | ||||||||||||||
3M (TC) | Feed Through Polarizing Key | 0.76 Ám | 30 Áin | Gold | 20 | 2 | Receptacle | IDC | 0.05 in | 1.27 mm | Free Hanging (In-Line) | 30 AWG | 1.27 mm | 0.05 in | Ribbon Cable | Female Socket | |||||||||||||
3M (TC) | 0.05 in | 1.27 mm | Polarizing Key | 0.76 Ám | 30 Áin | Gold | 20 | Unshielded | 2 | Socket to Socket | 0.025 in | 0.64 mm | IDC | 2 ' | 609.6 mm | ||||||||||||||
3M (TC) | 0.05 in | 1.27 mm | Polarizing Key | 0.76 Ám | 30 Áin | Gold | 20 | Unshielded | 2 | Socket to Socket | 0.025 in | 0.64 mm | IDC | 2 ' | 609.6 mm | ||||||||||||||
3M (TC) | 0.05 in | 1.27 mm | Polarizing Key | 0.76 Ám | 30 Áin | Gold | 1 ft | 304.8 mm | 20 | Unshielded | 2 | Socket to Socket | 0.025 in | 0.64 mm | IDC | ||||||||||||||
3M (TC) | 0.05 in | 1.27 mm | Polarizing Key | 0.76 Ám | 30 Áin | Gold | 152.4 mm | 20 | Unshielded | 2 | Socket to Socket | 0.025 in | 0.64 mm | IDC | 6 " | 0.5 ' | |||||||||||||
3M (TC) | 0.05 in | 1.27 mm | Polarizing Key | 0.76 Ám | 30 Áin | Gold | 152.4 mm | 20 | Unshielded | 2 | Socket to Socket Reversed | 0.025 in | 0.64 mm | IDC | 6 " | 0.5 ' | |||||||||||||
3M (TC) | 0.05 in | 1.27 mm | Polarizing Key | 0.76 Ám | 30 Áin | Gold | 20 | Unshielded | 2 | Socket to Socket Reversed | 0.025 in | 0.64 mm | IDC | 3 ft | 914.4 mm | ||||||||||||||
3M (TC) | Feed Through Polarizing Key | Gold | 20 | 2 | Receptacle | IDC | 0.05 in | 1.27 mm | Free Hanging (In-Line) | 30 AWG | 1.27 mm | 0.05 in | Ribbon Cable | Female Socket | Friction Lock | Flash | |||||||||||||
3M (TC) | 0.05 in | 1.27 mm | Polarizing Key | 0.76 Ám | 30 Áin | Gold | 1 ft | 304.8 mm | 20 | Unshielded | 2 | Socket to Socket Reversed | 0.025 in | 0.64 mm | IDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 21.77 | |
| 10 | $ 16.77 | |||
| 25 | $ 15.18 | |||
| 50 | $ 14.10 | |||
| 100 | $ 13.13 | |||
| 250 | $ 11.98 | |||
| 500 | $ 11.21 | |||
Description
General part information
45120 Series
20 Position Cable Assembly Rectangular Socket to Socket, Reversed 3.00' (914.40mm)
