45120-010030-7700/20-G-12

Unknown

3M (TC)

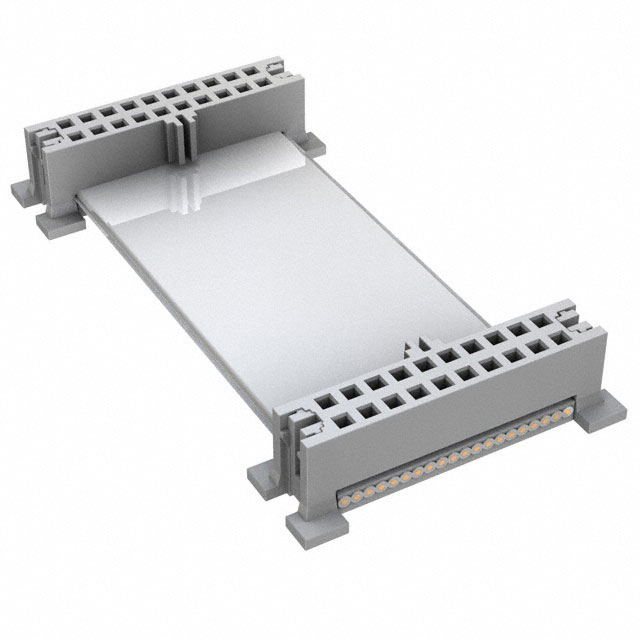

CABLE ASSY 20 POS 12" PINOUT-G

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

45120-010030-7700/20-G-12

Unknown

3M (TC)

CABLE ASSY 20 POS 12" PINOUT-G

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	45120-010030-7700/20-G-12

Cable Termination	IDC
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Polarizing Key
Length	1 ft
Length	304.8 mm
Number of Positions	20
Number of Rows	2
Pitch - Cable	0.64 mm
Pitch - Cable [x]	0.025 in
Pitch - Connector	0.05 in
Pitch - Connector	1.27 mm
Shielding	Unshielded

45120 Series

Part	Pitch - Connector	Pitch - Connector	Features	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Length	Length	Number of Positions	Shielding	Number of Rows	Connector Type	Pitch - Cable [x]	Pitch - Cable	Cable Termination	Pitch [x]	Pitch [x]	Mounting Type	Wire Gauge	Row Spacing	Row Spacing	Wire Type	Contact Type	Length [x]	Length [x]	Length	Length	Fastening Type	Contact Finish Thickness
3M (TC) 45120-010030-7700/20-H-12	0.05 in	1.27 mm	Polarizing Key	0.76 Ám	30 Áin	Gold	1 ft	304.8 mm	20	Unshielded	2	Socket to Socket	0.025 in	0.64 mm	IDC
3M (TC) 45120-010030			Feed Through Polarizing Key	0.76 Ám	30 Áin	Gold			20		2	Receptacle			IDC	0.05 in	1.27 mm	Free Hanging (In-Line)	30 AWG	1.27 mm	0.05 in	Ribbon Cable	Female Socket
3M (TC) 45120-010030-7700/20-H-24	0.05 in	1.27 mm	Polarizing Key	0.76 Ám	30 Áin	Gold			20	Unshielded	2	Socket to Socket	0.025 in	0.64 mm	IDC									2 '	609.6 mm
3M (TC) 45120-010030-7700/20-G-24	0.05 in	1.27 mm	Polarizing Key	0.76 Ám	30 Áin	Gold			20	Unshielded	2	Socket to Socket	0.025 in	0.64 mm	IDC									2 '	609.6 mm
3M (TC) 45120-010030-7700/20-G-12	0.05 in	1.27 mm	Polarizing Key	0.76 Ám	30 Áin	Gold	1 ft	304.8 mm	20	Unshielded	2	Socket to Socket	0.025 in	0.64 mm	IDC
3M (TC) 45120-010030-3749/20-D-6	0.05 in	1.27 mm	Polarizing Key	0.76 Ám	30 Áin	Gold		152.4 mm	20	Unshielded	2	Socket to Socket	0.025 in	0.64 mm	IDC											6 "	0.5 '
3M (TC) 45120-010030-7700/20-D-06	0.05 in	1.27 mm	Polarizing Key	0.76 Ám	30 Áin	Gold		152.4 mm	20	Unshielded	2	Socket to Socket Reversed	0.025 in	0.64 mm	IDC											6 "	0.5 '
3M (TC) 45120-010030-7700/20-F-36	0.05 in	1.27 mm	Polarizing Key	0.76 Ám	30 Áin	Gold			20	Unshielded	2	Socket to Socket Reversed	0.025 in	0.64 mm	IDC									3 ft	914.4 mm
3M (TC) 45120-020000			Feed Through Polarizing Key			Gold			20		2	Receptacle			IDC	0.05 in	1.27 mm	Free Hanging (In-Line)	30 AWG	1.27 mm	0.05 in	Ribbon Cable	Female Socket					Friction Lock	Flash
3M (TC) 45120-010030-7700/20-D-12	0.05 in	1.27 mm	Polarizing Key	0.76 Ám	30 Áin	Gold	1 ft	304.8 mm	20	Unshielded	2	Socket to Socket Reversed	0.025 in	0.64 mm	IDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.59
		10	$ 11.22
		25	$ 10.14
		50	$ 9.41
		100	$ 8.75
		250	$ 7.97
		500	$ 7.45
		1000	$ 6.98

Description

General part information

45120 Series

20 Position Cable Assembly Rectangular Socket to Socket 1.00' (304.80mm)
