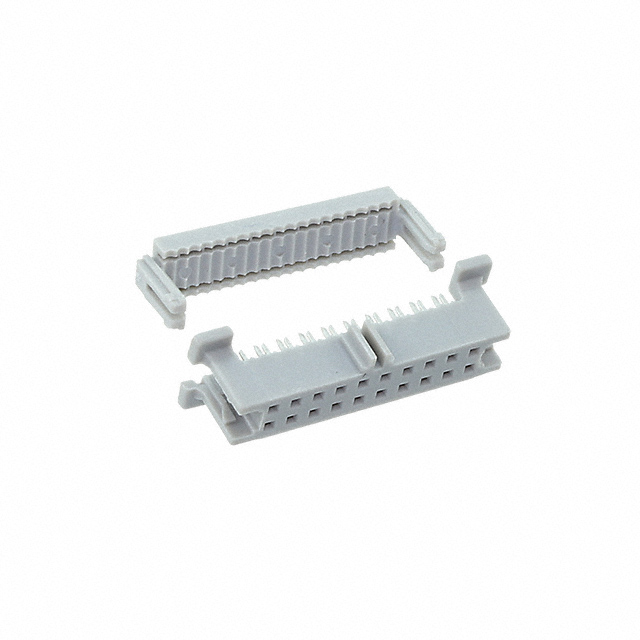

45120-010030

Active

3M (TC)

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 1.27 MM, 2 ROW, 20 CONTACTS, CABLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

Documents451 Ribbon Cable Socket Series Drawing 451, 452 Series Product Spec +2

45120-010030

Active

3M (TC)

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 1.27 MM, 2 ROW, 20 CONTACTS, CABLE MOUNT

Deep-Dive with AI

Documents451 Ribbon Cable Socket Series Drawing 451, 452 Series Product Spec +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	45120-010030

Cable Termination	IDC
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Type	Female Socket
Features	Polarizing Key, Feed Through
Mounting Type	Free Hanging (In-Line)
Number of Positions	20
Number of Rows	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Row Spacing	1.27 mm
Row Spacing	0.05 in
Wire Gauge	30 AWG
Wire Type	Ribbon Cable

45120 Series

Part	Pitch - Connector	Pitch - Connector	Features	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Length	Length	Number of Positions	Shielding	Number of Rows	Connector Type	Pitch - Cable [x]	Pitch - Cable	Cable Termination	Pitch [x]	Pitch [x]	Mounting Type	Wire Gauge	Row Spacing	Row Spacing	Wire Type	Contact Type	Length [x]	Length [x]	Length	Length	Fastening Type	Contact Finish Thickness
3M (TC) 45120-010030-7700/20-H-12	0.05 in	1.27 mm	Polarizing Key	0.76 Ám	30 Áin	Gold	1 ft	304.8 mm	20	Unshielded	2	Socket to Socket	0.025 in	0.64 mm	IDC
3M (TC) 45120-010030			Feed Through Polarizing Key	0.76 Ám	30 Áin	Gold			20		2	Receptacle			IDC	0.05 in	1.27 mm	Free Hanging (In-Line)	30 AWG	1.27 mm	0.05 in	Ribbon Cable	Female Socket
3M (TC) 45120-010030-7700/20-H-24	0.05 in	1.27 mm	Polarizing Key	0.76 Ám	30 Áin	Gold			20	Unshielded	2	Socket to Socket	0.025 in	0.64 mm	IDC									2 '	609.6 mm
3M (TC) 45120-010030-7700/20-G-24	0.05 in	1.27 mm	Polarizing Key	0.76 Ám	30 Áin	Gold			20	Unshielded	2	Socket to Socket	0.025 in	0.64 mm	IDC									2 '	609.6 mm
3M (TC) 45120-010030-7700/20-G-12	0.05 in	1.27 mm	Polarizing Key	0.76 Ám	30 Áin	Gold	1 ft	304.8 mm	20	Unshielded	2	Socket to Socket	0.025 in	0.64 mm	IDC
3M (TC) 45120-010030-3749/20-D-6	0.05 in	1.27 mm	Polarizing Key	0.76 Ám	30 Áin	Gold		152.4 mm	20	Unshielded	2	Socket to Socket	0.025 in	0.64 mm	IDC											6 "	0.5 '
3M (TC) 45120-010030-7700/20-D-06	0.05 in	1.27 mm	Polarizing Key	0.76 Ám	30 Áin	Gold		152.4 mm	20	Unshielded	2	Socket to Socket Reversed	0.025 in	0.64 mm	IDC											6 "	0.5 '
3M (TC) 45120-010030-7700/20-F-36	0.05 in	1.27 mm	Polarizing Key	0.76 Ám	30 Áin	Gold			20	Unshielded	2	Socket to Socket Reversed	0.025 in	0.64 mm	IDC									3 ft	914.4 mm
3M (TC) 45120-020000			Feed Through Polarizing Key			Gold			20		2	Receptacle			IDC	0.05 in	1.27 mm	Free Hanging (In-Line)	30 AWG	1.27 mm	0.05 in	Ribbon Cable	Female Socket					Friction Lock	Flash
3M (TC) 45120-010030-7700/20-D-12	0.05 in	1.27 mm	Polarizing Key	0.76 Ám	30 Áin	Gold	1 ft	304.8 mm	20	Unshielded	2	Socket to Socket Reversed	0.025 in	0.64 mm	IDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 7.07
		10	$ 6.39
		25	$ 6.04
		40	$ 5.89
		216	$ 5.60
		432	$ 5.01
		648	$ 4.72
		1080	$ 4.13
Newark	Each	1	$ 7.17
		10	$ 6.87
		25	$ 6.34
		50	$ 5.99
		100	$ 5.72
		250	$ 5.04
		500	$ 4.90
		1000	$ 4.16

Description

General part information

45120 Series

20 Position Rectangular Receptacle Connector IDC Gold 30 AWG
