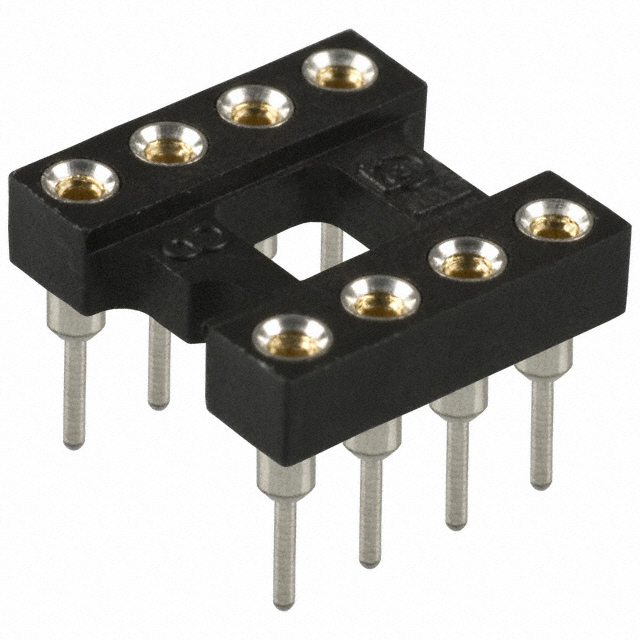

08-3518-10

Active

Aries Electronics

CONN IC DIP SOCKET 8POS GOLD

Search across all available documentation for this part.

Active

Aries Electronics

CONN IC DIP SOCKET 8POS GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	08-3518-10

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post [custom]	Brass
Current Rating (Amps)	3 A
Features	Open Frame
Housing Material	Glass Filled, Polyamide (PA46), Nylon 4/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	8
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in
Type	0.3 "
Type	7.62 mm
Type	DIP

Part	Housing Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions or Pins (Grid)	Contact Material - Post [custom]	Pitch - Mating	Pitch - Mating	Pitch - Post	Pitch - Post	Mounting Type	Termination	Current Rating (Amps)	Material Flammability Rating	Termination Post Length	Termination Post Length	Contact Material - Mating	Type	Type	Type	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Finish - Post
Aries Electronics 08-3518-10E	Glass Filled Nylon 4/6 Polyamide (PA46)	200 µin	5.08 µm	8	Brass	0.1 in	2.54 mm	2.54 mm	0.1 in	Through Hole	Solder	3 A	UL94 V-0	3.18 mm	0.125 in	Beryllium Copper	0.3 "	7.62 mm	DIP	Open Frame	10 çin	0.25 çm	Gold	Tin
Aries Electronics 08-3518-11H	Glass Filled Nylon 4/6 Polyamide (PA46)	10 çin	0.25 çm	8	Brass	0.1 in	2.54 mm	2.54 mm	0.1 in	Through Hole	Solder	3 A	UL94 V-0	3.18 mm	0.125 in	Beryllium Copper	0.3 "	7.62 mm	DIP	Open Frame	10 çin	0.25 çm	Gold	Gold
Aries Electronics 08-3518-10	Glass Filled Nylon 4/6 Polyamide (PA46)	200 µin	5.08 µm	8	Brass	0.1 in	2.54 mm	2.54 mm	0.1 in	Through Hole	Solder	3 A	UL94 V-0	3.18 mm	0.125 in	Beryllium Copper	0.3 "	7.62 mm	DIP	Open Frame	10 çin	0.25 çm	Gold	Tin
Aries Electronics 08-3518-00	Glass Filled Nylon 4/6 Polyamide (PA46)	200 µin	5.08 µm	8	Brass	0.1 in	2.54 mm	2.54 mm	0.1 in	Surface Mount	Solder	3 A	UL94 V-0	3.18 mm	0.125 in	Beryllium Copper	0.3 "	7.62 mm	DIP	Open Frame	10 çin	0.25 çm	Gold	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 (2 x 4) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
