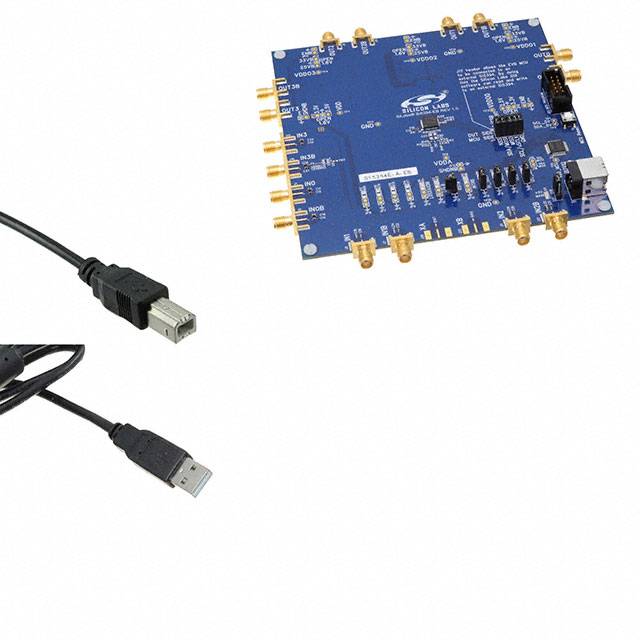

SI5394E-A-EVB

Active

Skyworks Solutions Inc.

BOARD EVALUATION SI5394

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Si5395, Si5394, Si5392

SI5394E-A-EVB

Active

Skyworks Solutions Inc.

BOARD EVALUATION SI5394

Deep-Dive with AI

DocumentsDatasheet Si5395, Si5394, Si5392

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SI5394E-A-EVB

Contents	Board(s)
Function	PLL
Supplied Contents	Board(s)
Type	Timing
Utilized IC / Part	Si5394E

SI5394 Series

Part	Frequency - Max [Max]	Output	Supplier Device Package	Type	Divider/Multiplier	Voltage - Supply [Max]	Voltage - Supply [Min]	Input	Number of Circuits	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Ratio - Input:Output	Utilized IC / Part	Supplied Contents	Contents	Function
Skyworks Solutions Inc. SI5394K-A-GMR	350 MHz	CML HCSL LVCMOS LVDS LVPECL	44-LGA (7x7)	Clock Multiplier Jitter Attenuator	Yes/No	1.89 V 3.47 V	1.71 V 3.14 V	LVCMOS	1	Surface Mount	44-TFLGA Exposed Pad	85 °C	-40 °C	4:4
Skyworks Solutions Inc. SI5394C-A-GM
Skyworks Solutions Inc. SI5394P-A-GM	200 MHz	CML HCSL LVCMOS LVDS LVPECL	44-QFN 7x7	Clock Multiplier Jitter Attenuator	Yes/No	1.89 V 3.47 V	1.71 V 3.14 V	LVCMOS	1	Surface Mount	44-VFQFN Exposed Pad	85 °C	-40 °C	4:4
Skyworks Solutions Inc. SI5394E-A-EVB				Timing											Si5394E	Board(s)	Board(s)	PLL
Skyworks Solutions Inc. SI5394L-A-GMR	1.028 GHz	CML HCSL LVCMOS LVDS LVPECL	44-LGA (7x7)	Clock Multiplier Jitter Attenuator	Yes/No	1.89 V 3.47 V	1.71 V 3.14 V	LVCMOS	1	Surface Mount	44-TFLGA Exposed Pad	85 °C	-40 °C	4:4
Skyworks Solutions Inc. SI5394M-A-GMR	350 MHz	CML HCSL LVCMOS LVDS LVPECL	44-LGA (7x7)	Clock Multiplier Jitter Attenuator	Yes/No	1.89 V 3.47 V	1.71 V 3.14 V	LVCMOS	1	Surface Mount	44-TFLGA Exposed Pad	85 °C	-40 °C	4:4
Skyworks Solutions Inc. SI5394A-A-GM	1.028 GHz	CML HCSL LVCMOS LVDS LVPECL	44-QFN 7x7	Clock Multiplier Jitter Attenuator	Yes/No	1.89 V 3.47 V	1.71 V 3.14 V	LVCMOS	1	Surface Mount	44-VFQFN Exposed Pad	85 °C	-40 °C	4:4
Skyworks Solutions Inc. SI5394J-A-GMR	1.028 GHz	CML HCSL LVCMOS LVDS LVPECL	44-LGA (7x7)	Clock Multiplier Jitter Attenuator	Yes/No	1.89 V 3.47 V	1.71 V 3.14 V	LVCMOS	1	Surface Mount	44-TFLGA Exposed Pad	85 °C	-40 °C	4:4
Skyworks Solutions Inc. SI5394K-A-GM
Skyworks Solutions Inc. SI5394P-A-GMR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 286.56

Description

General part information

SI5394 Series

Si5394E PLL Timing Evaluation Board

Documents

Technical documentation and resources

Datasheet

Si5395, Si5394, Si5392

Datasheet
