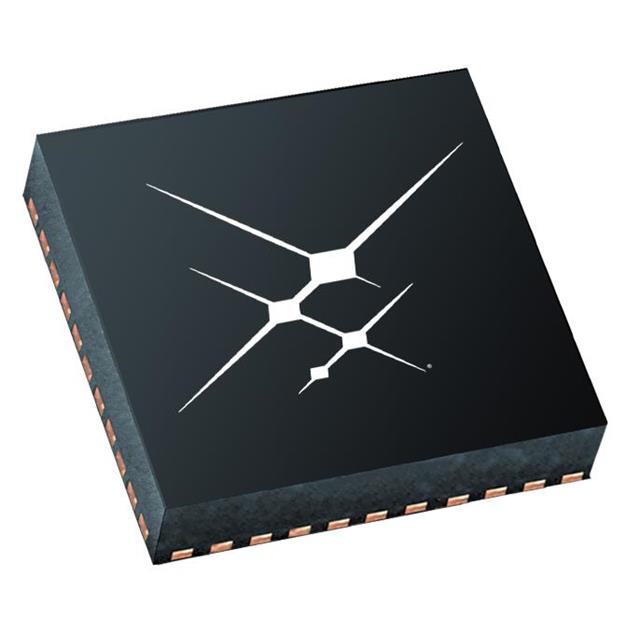

Specification	SI5394K-A-GMR

Differential Input	Yes
Differential Output	Yes
Divider	Yes
Frequency - Max	350 MHz
Input	LVCMOS
Input Ratio	4
Mounting Type	Surface Mount
Multiplier	No
Number of Circuits	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Output	HCSL, LVCMOS, LVPECL, LVDS, CML
Output Ratio	4
Package / Case	44-TFLGA Exposed Pad
Package Length	7 mm
Package Name	44-LGA
Package Width	7 mm
PLL	Yes
Type	Clock Multiplier, Jitter Attenuator
Voltage - Supply (Range 1 Maximum)	1.89 V
Voltage - Supply (Range 1 Minimum)	1.71 V
Voltage - Supply (Range 2 Maximum)	3.47 V
Voltage - Supply (Range 2 Minimum)	3.14 V

Si5394 Series

Part	Package / Case	Package Length	Package Name	Package Width	Mounting Type	Differential Input	Differential Output	Frequency - Max	Type	Operating Temperature (Max)	Operating Temperature (Min)	Number of Circuits	Input Ratio	Output Ratio	Input	Multiplier	Divider	Output	PLL	Voltage - Supply (Range 1 Minimum)	Voltage - Supply (Range 2 Minimum)	Voltage - Supply (Range 1 Maximum)	Voltage - Supply (Range 2 Maximum)	Supplied Contents	Function	Contents	Utilized IC / Part
Skyworks Solutions Inc. SI5394C-A-GM	44-VFQFN Exposed Pad	7 mm	44-QFN	7 mm	Surface Mount
Skyworks Solutions Inc. SI5394P-A-GM	44-VFQFN Exposed Pad	7 mm	44-QFN	7 mm	Surface Mount	Yes	Yes	200 MHz	Clock Multiplier Jitter Attenuator	85 °C	-40 °C	1	4	4	LVCMOS	No	Yes	CML HCSL LVCMOS LVDS LVPECL	Yes	1.71 V	3.14 V	1.89 V	3.47 V
Skyworks Solutions Inc. SI5394E-A-EVB									Timing															Board(s)	PLL	Board	Si5394E
Skyworks Solutions Inc. SI5394L-A-GMR	44-TFLGA Exposed Pad	7 mm	44-LGA	7 mm	Surface Mount	Yes	Yes	1.028 GHz	Clock Multiplier Jitter Attenuator	85 °C	-40 °C	1	4	4	LVCMOS	No	Yes	CML HCSL LVCMOS LVDS LVPECL	Yes	1.71 V	3.14 V	1.89 V	3.47 V
Skyworks Solutions Inc. SI5394M-A-GMR	44-TFLGA Exposed Pad	7 mm	44-LGA	7 mm	Surface Mount	Yes	Yes	350 MHz	Clock Multiplier Jitter Attenuator	85 °C	-40 °C	1	4	4	LVCMOS	No	Yes	CML HCSL LVCMOS LVDS LVPECL	Yes	1.71 V	3.14 V	1.89 V	3.47 V
Skyworks Solutions Inc. SI5394A-A-GM	44-VFQFN Exposed Pad	7 mm	44-QFN	7 mm	Surface Mount	Yes	Yes	1.028 GHz	Clock Multiplier Jitter Attenuator	85 °C	-40 °C	1	4	4	LVCMOS	No	Yes	CML HCSL LVCMOS LVDS LVPECL	Yes	1.71 V	3.14 V	1.89 V	3.47 V
Skyworks Solutions Inc. SI5394J-A-GMR	44-TFLGA Exposed Pad	7 mm	44-LGA	7 mm	Surface Mount	Yes	Yes	1.028 GHz	Clock Multiplier Jitter Attenuator	85 °C	-40 °C	1	4	4	LVCMOS	No	Yes	CML HCSL LVCMOS LVDS LVPECL	Yes	1.71 V	3.14 V	1.89 V	3.47 V
Skyworks Solutions Inc. SI5394K-A-GM	44-TFLGA Exposed Pad	7 mm	44-LGA	7 mm	Surface Mount
Skyworks Solutions Inc. SI5394P-A-GMR	44-VFQFN Exposed Pad	7 mm	44-QFN	7 mm	Surface Mount
Skyworks Solutions Inc. SI5394J-A-EVB									Timing															Board(s)	PLL	Board	Si5394J

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

SI5394K-A-GMR | Datasheet
