SI5394A-A-GM

Active

Skyworks Solutions Inc.

IC CLOCK MULTIPLIER 44QFN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SI5394A-A-GM

Active

Skyworks Solutions Inc.

IC CLOCK MULTIPLIER 44QFN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SI5394A-A-GM

Differential - Input:Output [custom]	True
Differential - Input:Output [custom]	True
Divider/Multiplier	Yes/No
Frequency - Max [Max]	1.028 GHz
Input	LVCMOS
Mounting Type	Surface Mount
Number of Circuits	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	LVCMOS, CML, LVDS, HCSL, LVPECL

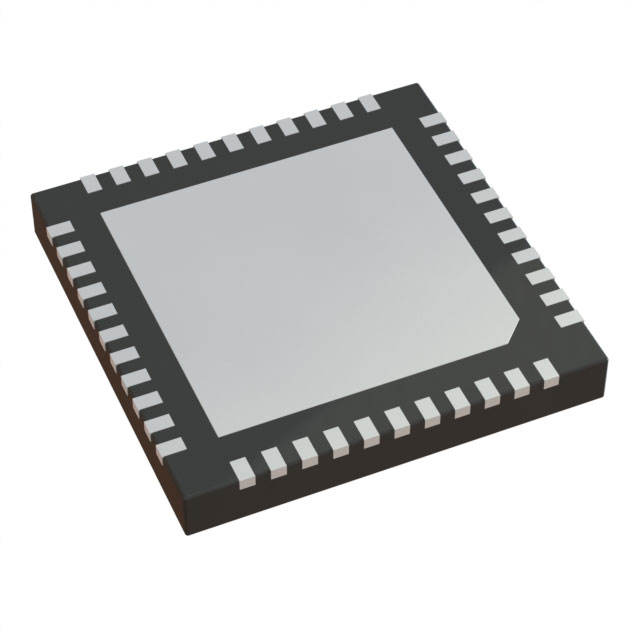

Package / Case	44-VFQFN Exposed Pad
PLL	True
Ratio - Input:Output	4:4
Supplier Device Package	44-QFN, 7x7
Type	Jitter Attenuator, Clock Multiplier
Voltage - Supply [Max]	3.47 V, 1.89 V
Voltage - Supply [Min]	3.14 V, 1.71 V

SI5394 Series

Part	Frequency - Max [Max]	Output	Supplier Device Package	Type	Divider/Multiplier	Voltage - Supply [Max]	Voltage - Supply [Min]	Input	Number of Circuits	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Ratio - Input:Output	Utilized IC / Part	Supplied Contents	Contents	Function
Skyworks Solutions Inc. SI5394K-A-GMR	350 MHz	CML HCSL LVCMOS LVDS LVPECL	44-LGA (7x7)	Clock Multiplier Jitter Attenuator	Yes/No	1.89 V 3.47 V	1.71 V 3.14 V	LVCMOS	1	Surface Mount	44-TFLGA Exposed Pad	85 °C	-40 °C	4:4
Skyworks Solutions Inc. SI5394C-A-GM
Skyworks Solutions Inc. SI5394P-A-GM	200 MHz	CML HCSL LVCMOS LVDS LVPECL	44-QFN 7x7	Clock Multiplier Jitter Attenuator	Yes/No	1.89 V 3.47 V	1.71 V 3.14 V	LVCMOS	1	Surface Mount	44-VFQFN Exposed Pad	85 °C	-40 °C	4:4
Skyworks Solutions Inc. SI5394E-A-EVB				Timing											Si5394E	Board(s)	Board(s)	PLL
Skyworks Solutions Inc. SI5394L-A-GMR	1.028 GHz	CML HCSL LVCMOS LVDS LVPECL	44-LGA (7x7)	Clock Multiplier Jitter Attenuator	Yes/No	1.89 V 3.47 V	1.71 V 3.14 V	LVCMOS	1	Surface Mount	44-TFLGA Exposed Pad	85 °C	-40 °C	4:4
Skyworks Solutions Inc. SI5394M-A-GMR	350 MHz	CML HCSL LVCMOS LVDS LVPECL	44-LGA (7x7)	Clock Multiplier Jitter Attenuator	Yes/No	1.89 V 3.47 V	1.71 V 3.14 V	LVCMOS	1	Surface Mount	44-TFLGA Exposed Pad	85 °C	-40 °C	4:4
Skyworks Solutions Inc. SI5394A-A-GM	1.028 GHz	CML HCSL LVCMOS LVDS LVPECL	44-QFN 7x7	Clock Multiplier Jitter Attenuator	Yes/No	1.89 V 3.47 V	1.71 V 3.14 V	LVCMOS	1	Surface Mount	44-VFQFN Exposed Pad	85 °C	-40 °C	4:4
Skyworks Solutions Inc. SI5394J-A-GMR	1.028 GHz	CML HCSL LVCMOS LVDS LVPECL	44-LGA (7x7)	Clock Multiplier Jitter Attenuator	Yes/No	1.89 V 3.47 V	1.71 V 3.14 V	LVCMOS	1	Surface Mount	44-TFLGA Exposed Pad	85 °C	-40 °C	4:4
Skyworks Solutions Inc. SI5394K-A-GM
Skyworks Solutions Inc. SI5394P-A-GMR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 35.28
		10	$ 32.54
		25	$ 31.08
		80	$ 27.79
		260	$ 26.51

Description

General part information

SI5394 Series

Clock Multiplier, Jitter Attenuator IC 1.028GHz 1 44-VFQFN Exposed Pad
