STB30N65DM6AG

Active

STMicroelectronics

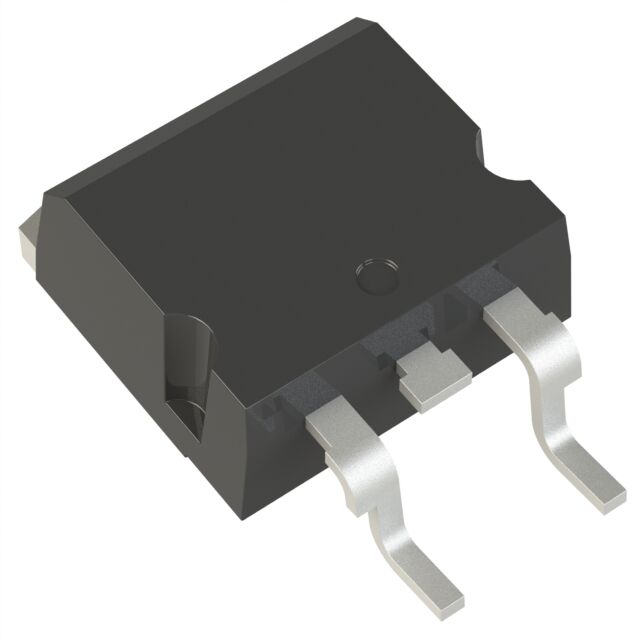

AUTOMOTIVE-GRADE N-CHANNEL 650 V, 102 MOHM TYP., 28 A MDMESH DM6 POWER MOSFET IN A D2PAK PACKAGE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

STB30N65DM6AG

Active

STMicroelectronics

AUTOMOTIVE-GRADE N-CHANNEL 650 V, 102 MOHM TYP., 28 A MDMESH DM6 POWER MOSFET IN A D2PAK PACKAGE

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	STB30N65DM6AG

Current - Continuous Drain (Id) @ 25°C	28 A
Drain to Source Voltage (Vdss)	650 V
Drive Voltage (Max Rds On, Min Rds On)	10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	46 nC
Grade	Automotive
Input Capacitance (Ciss) (Max) @ Vds	2000 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	D2PAK (2 Leads + Tab), TO-263AB, TO-263-3
Power Dissipation (Max) [Max]	223 W
Qualification	AEC-Q101
Rds On (Max) @ Id, Vgs	115 mOhm
Supplier Device Package	TO-263 (D2PAK)
Technology	MOSFET (Metal Oxide)
Vgs (Max)	25 V
Vgs(th) (Max) @ Id	4.75 V

STB30N65DM6AG Series

Automotive-grade N-channel 650 V, 102 mOhm typ., 28 A MDmesh DM6 Power MOSFET in a D2PAK package

Part	Technology	Supplier Device Package	Input Capacitance (Ciss) (Max) @ Vds	Current - Continuous Drain (Id) @ 25°C	Operating Temperature [Min]	Operating Temperature [Max]	Vgs(th) (Max) @ Id	Drain to Source Voltage (Vdss)	Rds On (Max) @ Id, Vgs	Vgs (Max)	Drive Voltage (Max Rds On, Min Rds On)	Power Dissipation (Max) [Max]	Package / Case	Mounting Type	FET Type	Gate Charge (Qg) (Max) @ Vgs	Grade	Gate Charge (Qg) (Max) @ Vgs [Max]	Qualification	Power Dissipation (Max)	Input Capacitance (Ciss) (Max) @ Vds [Max]
STMicroelectronics STB30N80K5	MOSFET (Metal Oxide)	TO-263 (D2PAK)	1530 pF	24 A	-55 °C	150 °C	5 V	800 V	180 mOhm	30 V	10 V	250 W	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Surface Mount	N-Channel	43 nC
STMicroelectronics STB30NF20L	MOSFET (Metal Oxide)	D2PAK	1990 pF	30 A	-55 °C	175 ░C	3 V	200 V	75 mOhm	20 V	10 V		D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Surface Mount	N-Channel		Automotive	65 nC	AEC-Q101	150 W
STMicroelectronics STB30N65DM6AG	MOSFET (Metal Oxide)	TO-263 (D2PAK)	2000 pF	28 A	-55 °C	150 °C	4.75 V	650 V	115 mOhm	25 V	10 V	223 W	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Surface Mount	N-Channel	46 nC	Automotive		AEC-Q101
STMicroelectronics STB30N65M2AG	MOSFET (Metal Oxide)	TO-263 (D2PAK)		20 A	-55 °C	150 °C	4 V	650 V	180 mOhm	25 V	10 V	190 W	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	Surface Mount	N-Channel	30.8 nC	Automotive		AEC-Q101		1440 pF
