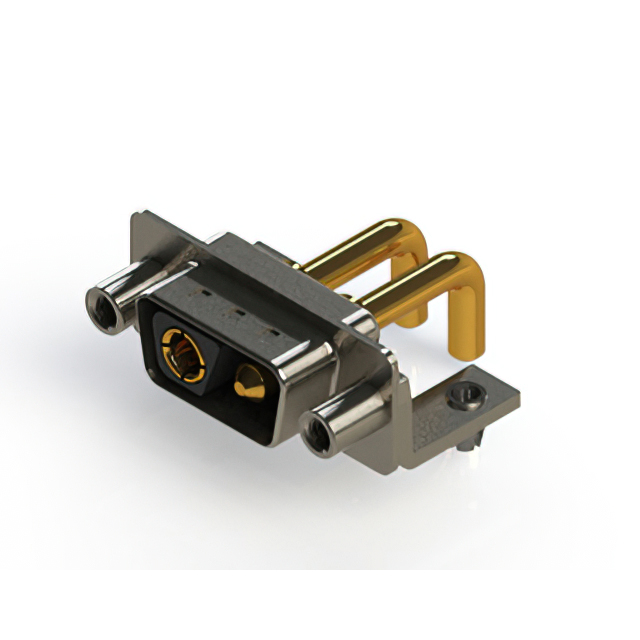

COMBINATION LAYOUT D SUB CONNECTOR, 629C SERIES, DE-2WK2, PLUG, 2 CONTACTS, 2 POWER, SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

629-2WK2250-3TD

Active

EDAC Inc.

COMBINATION LAYOUT D SUB CONNECTOR, 629C SERIES, DE-2WK2, PLUG, 2 CONTACTS, 2 POWER, SOLDER

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629-2WK2250-3TD

Backset Spacing	13.2 mm
Backset Spacing	0.52 "
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Male Pins, Plug, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Power
Current Rating (Amps)	30 A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Mounting Brackets, Board Lock
Flange Feature	M3
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2WK2, 1 (DE, E), 2V2, 2W2C, 2W2
Termination	Solder
Voltage Rating	125 VDC

629-2WK Series

...

Part	Flange Feature	Number of Positions	Contact Finish Thickness	Material Flammability Rating	Voltage Rating	Current Rating (Amps)	Contact Type	Termination	Color	Backset Spacing	Backset Spacing	Connector Type	Number of Rows	Mounting Type	Shell Size, Connector Layout	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish	Connector Style	Features	Dielectric Material	Shell Material, Finish	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 629-2WK2240-4T6	4-40	2	Flash	UL94 V-0	125 VDC	40 A	Power	Solder	Black	13.2 mm	0.52 "	Female Sockets Male Pins Plug	2	Through Hole Right Angle	1 (DE E) 2V2 2W2 2W2C 2WK2	-55 °C	125 °C	Copper Alloy	Gold	Combo D-Sub	Board Lock Grounding Indents	Polyester Thermoplastic
EDAC Inc. 629-2WK2250-3N2	Housing/Shell (4-40)	2	Flash	UL94 V-0	125 VDC	30 A	Power	Solder	Black	13.2 mm	0.52 "	Female Sockets Male Pins Plug	2	Through Hole Right Angle	1 (DE E) 2V2 2W2 2W2C 2WK2	-55 °C	125 °C	Copper Alloy	Gold	Combo D-Sub		Polyester Thermoplastic	Nickel Plated Steel
EDAC Inc. 629-2WK2250-2NB	Housing/Shell (M3)	2	Flash	UL94 V-0	125 VDC	20 A	Power	Solder	Black	13.2 mm	0.52 "	Female Sockets Male Pins Plug	2	Through Hole Right Angle	1 (DE E) 2V2 2W2 2W2C 2WK2	-55 °C	125 °C	Copper Alloy	Gold	Combo D-Sub	Board Lock Grounding Indents Mounting Brackets	Polyester Thermoplastic	Nickel Plated Steel
EDAC Inc. 629-2WK2650-4NB	Housing/Shell (M3)	2		UL94 V-0	125 VDC	40 A	Power	Solder	Black	13.2 mm	0.52 "	Female Sockets Male Pins Plug	2	Through Hole Right Angle	1 (DE E) 2V2 2W2 2W2C 2WK2	-55 °C	125 °C	Copper Alloy	Gold	Combo D-Sub	Board Lock Grounding Indents Mounting Brackets	Polyester Thermoplastic	Nickel Plated Steel	0.76 Ám	30 Áin
EDAC Inc. 629-2WK2250-2TC	Housing/Shell (M3)	2	Flash	UL94 V-0	125 VDC	20 A	Power	Solder	Black	13.2 mm	0.52 "	Female Sockets Male Pins Plug	2	Through Hole Right Angle	1 (DE E) 2V2 2W2 2W2C 2WK2	-55 °C	125 °C	Copper Alloy	Gold	Combo D-Sub	Grounding Indents Mounting Brackets	Polyester Thermoplastic
EDAC Inc. 629-2WK2640-7NA	Board Side (M3)	2		UL94 V-0	125 VDC		Coax	Solder	Black	9.4 mm	0.37 in	Female Sockets Male Pins Plug	1	Through Hole Right Angle	1 (DE E) 2V2 2W2 2W2C 2WK2	-55 °C	125 °C	Copper Alloy	Gold	Combo D-Sub	Grounding Indents	Polyester Thermoplastic	Nickel Plated Steel	0.76 Ám	30 Áin
EDAC Inc. 629-2WK2240-5T2	Housing/Shell (4-40)	2	Flash	UL94 V-0	125 VDC		Coax	Solder	Black	9.4 mm	0.37 in	Female Sockets Male Pins Plug	1	Through Hole Right Angle	1 (DE E) 2V2 2W2 2W2C 2WK2	-55 °C	125 °C	Copper Alloy	Gold	Combo D-Sub		Polyester Thermoplastic
EDAC Inc. 629-2WK2250-3TD	M3	2	Flash	UL94 V-0	125 VDC	30 A	Power	Solder	Black	13.2 mm	0.52 "	Female Sockets Male Pins Plug	2	Through Hole Right Angle	1 (DE E) 2V2 2W2 2W2C 2WK2	-55 °C	125 °C	Copper Alloy	Gold	Combo D-Sub	Board Lock Grounding Indents Mounting Brackets	Polyester Thermoplastic
EDAC Inc. 629-2WK2250-4ND	M3	2	Flash	UL94 V-0	125 VDC	40 A	Power	Solder	Black	13.2 mm	0.52 "	Female Sockets Male Pins Plug	2	Through Hole Right Angle	1 (DE E) 2V2 2W2 2W2C 2WK2	-55 °C	125 °C	Copper Alloy	Gold	Combo D-Sub	Board Lock Grounding Indents Mounting Brackets	Polyester Thermoplastic	Nickel Plated Steel
EDAC Inc. 629-2WK2650-4N3	Housing/Shell (4-40)	2		UL94 V-0	125 VDC	40 A	Power	Solder	Black	13.2 mm	0.52 "	Female Sockets Male Pins Plug	2	Through Hole Right Angle	1 (DE E) 2V2 2W2 2W2C 2WK2	-55 °C	125 °C	Copper Alloy	Gold	Combo D-Sub	Board Lock Grounding Indents Mounting Brackets	Polyester Thermoplastic	Nickel Plated Steel	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2000	$ 4.98
Newark	Each	500	$ 6.98

Description

General part information

629-2WK Series

2 (Power) Position D-Sub, Combo Plug, Female Sockets and Male Pins Connector
