629-2WK2250-2NB

Active

EDAC Inc.

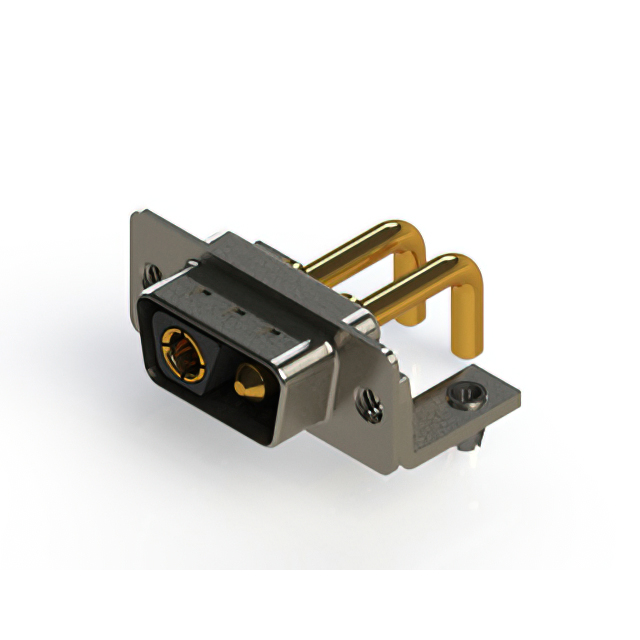

CONN D-SUB PLUG 2POS R/A SLDR

629-2WK2250-2NB

Active

EDAC Inc.

CONN D-SUB PLUG 2POS R/A SLDR

Description Specifications Series Pricing CAD Documents

Description

General part information

629-2WK Series

2 (Power) Position D-Sub, Combo Plug, Female Sockets and Male Pins Connector

Technical Specifications

Parameters and characteristics for this part

Specification	629-2WK2250-2NB

Backset Spacing	0.52 in
Color	Black
Connector Layout	2WK2, 2W2C, DE, E
Connector Style	Combo, D-Sub
Connector Type	Male Pins, Female Sockets, Plug
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Material	Copper Alloy
Contact Type	Power
Current Rating	20 A
Dielectric Material	Polyester Thermoplastic
Features	Mounting Brackets, Grounding Indents, Board Lock
Finish	Nickel Plated
Flange Feature	Shell (M3), Housing
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	2
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Part Code	2W2, 2V2
Position Types	Power
Shell Material	Steel
Shell Size	1
Termination	Solder
Voltage Rating	125 V

629-2WK Series

...

Part	Material Flammability Rating	Features	Mounting Type	Backset Spacing	Contact Finish	Contact Type	Flange Feature	Number of Rows	Connector Style	Termination	Contact Finish Thickness	Shell Material	Finish	Shell Size	Connector Layout	Part Code	Number of Positions	Position Types	Connector Type	Current Rating	Voltage Rating	Color	Dielectric Material	Contact Material	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish Thickness (string set options)	Contact Finish Thickness
EDAC Inc. 629-2WK2650-4N1	UL94 V-0	Grounding Indents Shielded	Right Angle Through Hole	0.52 in	Gold	Power	Housing Shell (Unthreaded)	2	Combo D-Sub	Solder	30 µin	Steel	Nickel Plated	1	2W2C 2WK2 DE E	2V2 2W2	2	Power	Female Sockets Male Pins Plug	40 A	125 V	Black	Polyester Thermoplastic	Copper Alloy	125 °C	-55 °C
EDAC Inc. 629-2WK2240-4T6	UL94 V-0	Board Lock Grounding Indents	Right Angle Through Hole	0.52 in	Gold	Power	Mating Side (4-40)	2	Combo D-Sub	Solder	0	Steel	Tin Plated	1	2W2C 2WK2 DE E	2V2 2W2	2	Power	Female Sockets Male Pins Plug	40 A	125 V	Black	Polyester Thermoplastic	Copper Alloy	125 °C	-55 °C	Flash	Flash
EDAC Inc. 629-2WK2250-3N2	UL94 V-0		Right Angle Through Hole	0.52 in	Gold	Power	Housing Shell (4-40)	2	Combo D-Sub	Solder	0	Steel	Nickel Plated	1	2W2C 2WK2 DE E	2V2 2W2	2	Power	Female Sockets Male Pins Plug	30 A	125 V	Black	Polyester Thermoplastic	Copper Alloy	125 °C	-55 °C	Flash	Flash
EDAC Inc. 629-2WK2250-2NB	UL94 V-0	Board Lock Grounding Indents Mounting Brackets	Right Angle Through Hole	0.52 in	Gold	Power	Housing Shell (M3)	2	Combo D-Sub	Solder	0	Steel	Nickel Plated	1	2W2C 2WK2 DE E	2V2 2W2	2	Power	Female Sockets Male Pins Plug	20 A	125 V	Black	Polyester Thermoplastic	Copper Alloy	125 °C	-55 °C	Flash	Flash
EDAC Inc. 629-2WK2650-4NB	UL94 V-0	Board Lock Grounding Indents Mounting Brackets	Right Angle Through Hole	0.52 in	Gold	Power	Housing Shell (M3)	2	Combo D-Sub	Solder	30 µin	Steel	Nickel Plated	1	2W2C 2WK2 DE E	2V2 2W2	2	Power	Female Sockets Male Pins Plug	40 A	125 V	Black	Polyester Thermoplastic	Copper Alloy	125 °C	-55 °C
EDAC Inc. 629-2WK2640-7TC	UL94 V-0	Grounding Indents Mounting Brackets	Right Angle Through Hole	0.37 in	Gold	Coax	Housing Shell (M3)	1	Combo D-Sub	Solder	30 µin	Steel	Tin Plated	1	2W2C 2WK2 DE E	2V2 2W2	2	Coax	Female Sockets Male Pins Plug		125 V	Black	Polyester Thermoplastic	Copper Alloy	125 °C	-55 °C
EDAC Inc. 629-2WK2250-2TC	UL94 V-0	Grounding Indents Mounting Brackets	Right Angle Through Hole	0.52 in	Gold	Power	Housing Shell (M3)	2	Combo D-Sub	Solder	0	Steel	Tin Plated	1	2W2C 2WK2 DE E	2V2 2W2	2	Power	Female Sockets Male Pins Plug	20 A	125 V	Black	Polyester Thermoplastic	Copper Alloy	125 °C	-55 °C	Flash	Flash
EDAC Inc. 629-2WK2640-7NA	UL94 V-0	Grounding Indents	Right Angle Through Hole	0.37 in	Gold	Coax	Board Side (M3)	1	Combo D-Sub	Solder	30 µin	Steel	Nickel Plated	1	2W2C 2WK2 DE E	2V2 2W2	2	Coax	Female Sockets Male Pins Plug		125 V	Black	Polyester Thermoplastic	Copper Alloy	125 °C	-55 °C
EDAC Inc. 629-2WK2240-5T2	UL94 V-0		Right Angle Through Hole	0.37 in	Gold	Coax	Housing Shell (4-40)	1	Combo D-Sub	Solder	0	Steel	Tin Plated	1	2W2C 2WK2 DE E	2V2 2W2	2	Coax	Female Sockets Male Pins Plug		125 V	Black	Polyester Thermoplastic	Copper Alloy	125 °C	-55 °C	Flash	Flash
EDAC Inc. 629-2WK2250-3TD	UL94 V-0	Board Lock Grounding Indents Mounting Brackets	Right Angle Through Hole	0.52 in	Gold	Power	Mating Side (M3)	2	Combo D-Sub	Solder	0	Steel	Tin Plated	1	2W2C 2WK2 DE E	2V2 2W2	2	Power	Female Sockets Male Pins Plug	30 A	125 V	Black	Polyester Thermoplastic	Copper Alloy	125 °C	-55 °C	Flash	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

629-2WK2250-2NB | Datasheet
