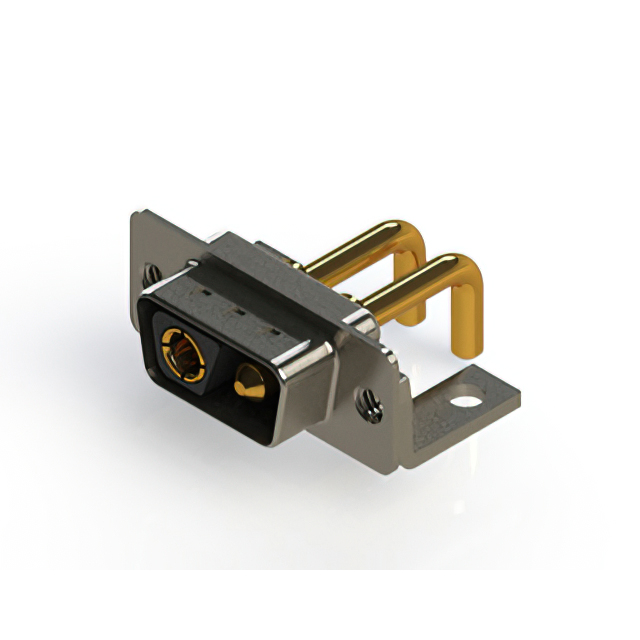

COMBINATION LAYOUT D SUB CONNECTOR, 629C SERIES, DE-2WK2, PLUG, 2 CONTACTS, 2 POWER, SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
629-2WK2250-2TC
ActiveEDAC Inc.
COMBINATION LAYOUT D SUB CONNECTOR, 629C SERIES, DE-2WK2, PLUG, 2 CONTACTS, 2 POWER, SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 629-2WK2250-2TC |
|---|---|
| Backset Spacing | 13.2 mm |
| Backset Spacing | 0.52 " |
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Male Pins, Plug, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Power |
| Current Rating (Amps) | 20 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Grounding Indents, Mounting Brackets |
| Flange Feature | Housing/Shell (M3) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout | 2WK2, 1 (DE, E), 2V2, 2W2C, 2W2 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
629-2WK Series
...
| Part | Flange Feature | Number of Positions | Contact Finish Thickness | Material Flammability Rating | Voltage Rating | Current Rating (Amps) | Contact Type | Termination | Color | Backset Spacing | Backset Spacing | Connector Type | Number of Rows | Mounting Type | Shell Size, Connector Layout | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Contact Finish | Connector Style | Features | Dielectric Material | Shell Material, Finish | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 4-40 | 2 | Flash | UL94 V-0 | 125 VDC | 40 A | Power | Solder | Black | 13.2 mm | 0.52 " | Female Sockets Male Pins Plug | 2 | Through Hole Right Angle | 1 (DE E) 2V2 2W2 2W2C 2WK2 | -55 °C | 125 °C | Copper Alloy | Gold | Combo D-Sub | Board Lock Grounding Indents | Polyester Thermoplastic | |||
EDAC Inc. | Housing/Shell (4-40) | 2 | Flash | UL94 V-0 | 125 VDC | 30 A | Power | Solder | Black | 13.2 mm | 0.52 " | Female Sockets Male Pins Plug | 2 | Through Hole Right Angle | 1 (DE E) 2V2 2W2 2W2C 2WK2 | -55 °C | 125 °C | Copper Alloy | Gold | Combo D-Sub | Polyester Thermoplastic | Nickel Plated Steel | |||
EDAC Inc. | Housing/Shell (M3) | 2 | Flash | UL94 V-0 | 125 VDC | 20 A | Power | Solder | Black | 13.2 mm | 0.52 " | Female Sockets Male Pins Plug | 2 | Through Hole Right Angle | 1 (DE E) 2V2 2W2 2W2C 2WK2 | -55 °C | 125 °C | Copper Alloy | Gold | Combo D-Sub | Board Lock Grounding Indents Mounting Brackets | Polyester Thermoplastic | Nickel Plated Steel | ||
EDAC Inc. | Housing/Shell (M3) | 2 | UL94 V-0 | 125 VDC | 40 A | Power | Solder | Black | 13.2 mm | 0.52 " | Female Sockets Male Pins Plug | 2 | Through Hole Right Angle | 1 (DE E) 2V2 2W2 2W2C 2WK2 | -55 °C | 125 °C | Copper Alloy | Gold | Combo D-Sub | Board Lock Grounding Indents Mounting Brackets | Polyester Thermoplastic | Nickel Plated Steel | 0.76 Ám | 30 Áin | |
EDAC Inc. | Housing/Shell (M3) | 2 | Flash | UL94 V-0 | 125 VDC | 20 A | Power | Solder | Black | 13.2 mm | 0.52 " | Female Sockets Male Pins Plug | 2 | Through Hole Right Angle | 1 (DE E) 2V2 2W2 2W2C 2WK2 | -55 °C | 125 °C | Copper Alloy | Gold | Combo D-Sub | Grounding Indents Mounting Brackets | Polyester Thermoplastic | |||
EDAC Inc. | Board Side (M3) | 2 | UL94 V-0 | 125 VDC | Coax | Solder | Black | 9.4 mm | 0.37 in | Female Sockets Male Pins Plug | 1 | Through Hole Right Angle | 1 (DE E) 2V2 2W2 2W2C 2WK2 | -55 °C | 125 °C | Copper Alloy | Gold | Combo D-Sub | Grounding Indents | Polyester Thermoplastic | Nickel Plated Steel | 0.76 Ám | 30 Áin | ||
EDAC Inc. | Housing/Shell (4-40) | 2 | Flash | UL94 V-0 | 125 VDC | Coax | Solder | Black | 9.4 mm | 0.37 in | Female Sockets Male Pins Plug | 1 | Through Hole Right Angle | 1 (DE E) 2V2 2W2 2W2C 2WK2 | -55 °C | 125 °C | Copper Alloy | Gold | Combo D-Sub | Polyester Thermoplastic | |||||
EDAC Inc. | M3 | 2 | Flash | UL94 V-0 | 125 VDC | 30 A | Power | Solder | Black | 13.2 mm | 0.52 " | Female Sockets Male Pins Plug | 2 | Through Hole Right Angle | 1 (DE E) 2V2 2W2 2W2C 2WK2 | -55 °C | 125 °C | Copper Alloy | Gold | Combo D-Sub | Board Lock Grounding Indents Mounting Brackets | Polyester Thermoplastic | |||
EDAC Inc. | M3 | 2 | Flash | UL94 V-0 | 125 VDC | 40 A | Power | Solder | Black | 13.2 mm | 0.52 " | Female Sockets Male Pins Plug | 2 | Through Hole Right Angle | 1 (DE E) 2V2 2W2 2W2C 2WK2 | -55 °C | 125 °C | Copper Alloy | Gold | Combo D-Sub | Board Lock Grounding Indents Mounting Brackets | Polyester Thermoplastic | Nickel Plated Steel | ||
EDAC Inc. | Housing/Shell (4-40) | 2 | UL94 V-0 | 125 VDC | 40 A | Power | Solder | Black | 13.2 mm | 0.52 " | Female Sockets Male Pins Plug | 2 | Through Hole Right Angle | 1 (DE E) 2V2 2W2 2W2C 2WK2 | -55 °C | 125 °C | Copper Alloy | Gold | Combo D-Sub | Board Lock Grounding Indents Mounting Brackets | Polyester Thermoplastic | Nickel Plated Steel | 0.76 Ám | 30 Áin |
