M39029/58-360
ActiveAmphenol Aerospace Operations

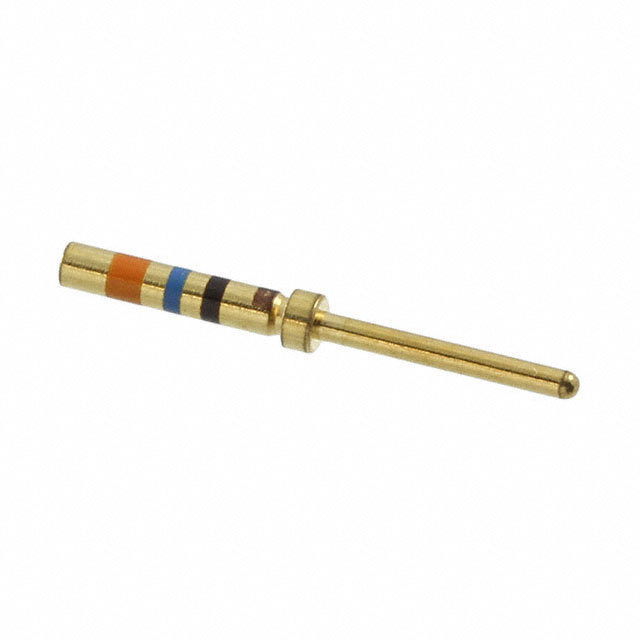

CONTACT PIN 22-28AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
M39029/58-360
ActiveAmphenol Aerospace Operations
CONTACT PIN 22-28AWG CRIMP GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M39029/58-360 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Copper Alloy |
| Contact Size | 22D |
| Contact Termination | Crimp |
| Contact Type | Pin |
| Grade | Military |
| Qualification | MIL-C-39029 |
| Type | Signal, Machined |
| Wire Gauge or Range - AWG [Max] | 28 AWG |
| Wire Gauge or Range - AWG [Min] | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.42 | |
| 1 | $ 0.47 | |||
| 1 | $ 0.66 | |||
| 1 | $ 15.19 | |||
| 10 | $ 0.50 | |||
| 10 | $ 0.40 | |||
| 10 | $ 0.37 | |||
| 25 | $ 0.34 | |||
| 25 | $ 0.45 | |||
| 25 | $ 0.35 | |||
| 50 | $ 0.41 | |||
| 50 | $ 0.32 | |||
| 50 | $ 0.32 | |||
| 100 | $ 0.38 | |||
| 100 | $ 0.30 | |||
| 100 | $ 0.31 | |||
| 250 | $ 0.35 | |||
| 250 | $ 0.28 | |||
| 250 | $ 0.28 | |||
| 500 | $ 0.27 | |||
| 500 | $ 0.27 | |||
| 500 | $ 0.32 | |||
| 1000 | $ 0.30 | |||
| 1000 | $ 0.22 | |||
| 1000 | $ 0.22 | |||
| 2500 | $ 0.20 | |||
| 2500 | $ 0.27 | |||
| 2500 | $ 0.20 | |||
Description
General part information
M39029/58 Series
Pin Contact 22-28 AWG Size 22D Crimp Gold
