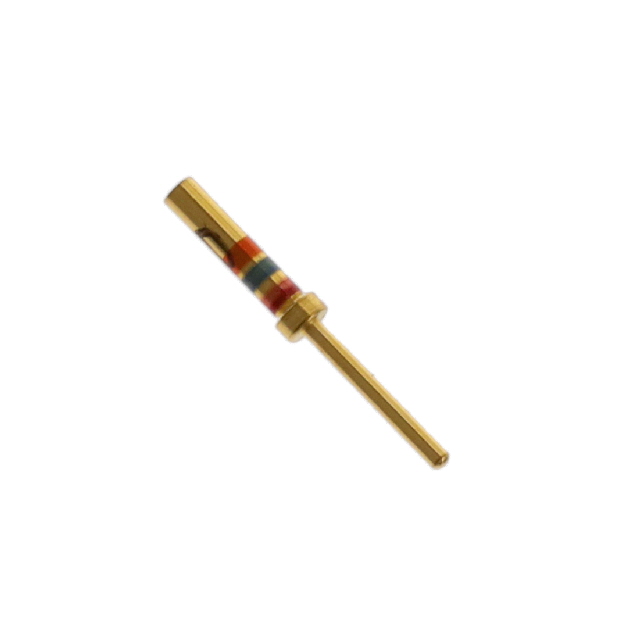

M39029/58-362
ActiveAmphenol Aerospace Operations
CONTACT PIN 22-26AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M39029/58-362
ActiveAmphenol Aerospace Operations
CONTACT PIN 22-26AWG CRIMP GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M39029/58-362 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Copper Alloy |
| Contact Size | 22 |
| Contact Termination | Crimp |
| Contact Type | Pin |
| Grade | Military |
| Qualification | MIL-C-39029 |
| Type | Signal |
| Wire Gauge or Range - AWG [Max] | 26 AWG |
| Wire Gauge or Range - AWG [Min] | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.64 | |
| 100 | $ 0.63 | |||
| 250 | $ 0.61 | |||
| 500 | $ 0.60 | |||
| 1000 | $ 0.58 | |||
| 2500 | $ 0.50 | |||
| 5000 | $ 0.45 | |||
| 10000 | $ 0.44 | |||
| Bulk | 1 | $ 0.79 | ||
| 10 | $ 0.60 | |||
| 25 | $ 0.54 | |||
| 50 | $ 0.50 | |||
| 100 | $ 0.46 | |||
| 250 | $ 0.42 | |||
| 500 | $ 0.39 | |||
| 1000 | $ 0.36 | |||
| 2500 | $ 0.33 | |||
Description
General part information
M39029/58 Series
Pin Contact 22-26 AWG Size 22 Crimp Gold
