M39029/58-364
ActiveAmphenol Aerospace Operations

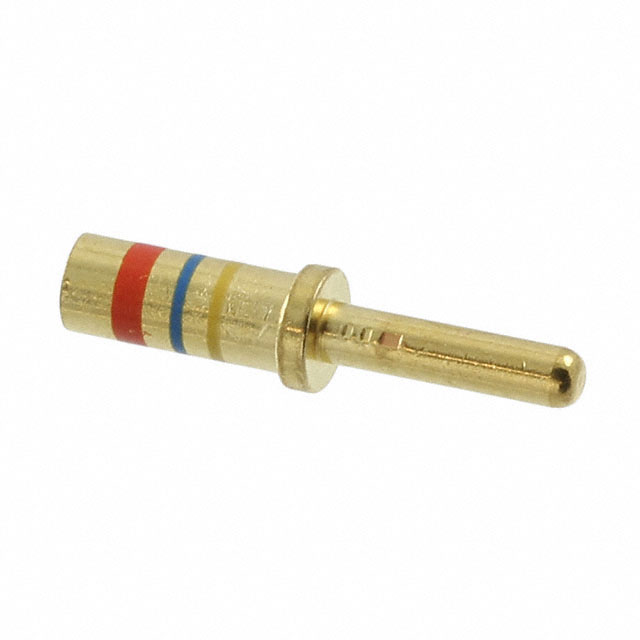

CONTACT PIN 16-20AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M39029/58-364
ActiveAmphenol Aerospace Operations
CONTACT PIN 16-20AWG CRIMP GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M39029/58-364 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Copper Alloy |
| Contact Size | 16 |
| Contact Termination | Crimp |
| Contact Type | Pin |
| Grade | Military |
| Qualification | MIL-C-39029 |
| Type | Signal, Machined |
| Wire Gauge or Range - AWG [Max] | 20 AWG |
| Wire Gauge or Range - AWG [Min] | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.76 | |
| 1 | $ 1.73 | |||
| 10 | $ 1.32 | |||
| 25 | $ 1.19 | |||
| 50 | $ 1.10 | |||
| 100 | $ 1.01 | |||
| 250 | $ 0.92 | |||
| 500 | $ 0.85 | |||
| 1000 | $ 0.79 | |||
| 2500 | $ 0.72 | |||
Description
General part information
M39029/58 Series
Pin Contact 16-20 AWG Size 16 Crimp Gold
