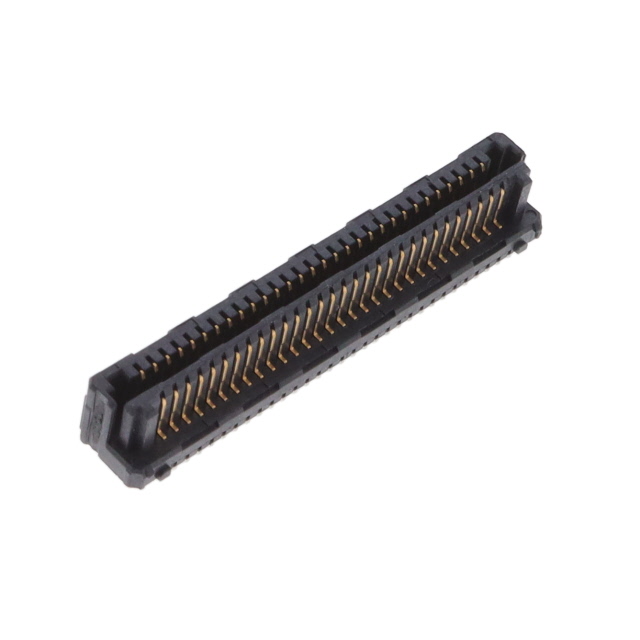

LSEM-130-03.0-F-DV-A-N-TR

Active

Samtec Inc.

.8MM HERMAPHRODITIC HORIZONTAL F

Search across all available documentation for this part.

Active

Samtec Inc.

.8MM HERMAPHRODITIC HORIZONTAL F

Technical Specifications

Parameters and characteristics for this part

Specification	LSEM-130-03.0-F-DV-A-N-TR

Connector Type	Self Mating, Non-Gendered, Hermaphroditic
Contact Finish	Gold
Contact Finish Thickness	Flash
Features	Board Guide
Height Above Board	0.175 in
Height Above Board	4.45 mm
Mated Stacking Heights	7 mm, 6 mm, 9 mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Mated Stacking Heights	Mounting Type	Number of Positions	Features	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Height Above Board	Height Above Board	Number of Rows	Contact Finish	Pitch [x]	Pitch [x]	Contact Finish Thickness	Height Above Board
Samtec Inc. LSEM-130-03.0-L-DV-A-N-K-TR	6 mm 7 mm 9 mm	Surface Mount	60	Board Guide Pick and Place	10 Áin	0.25 Ám	Self Mating Non-Gendered Hermaphroditic	0.175 in	4.45 mm	2	Gold	0.8 mm	0.031 in
Samtec Inc. LSEM-130-01-L-DH-A-N-TR		Surface Mount Right Angle	60	Board Guide	10 Áin	0.25 Ám	Self Mating Non-Gendered Hermaphroditic	0.202 in	5.13 mm	2	Gold	0.8 mm	0.031 in
Samtec Inc. LSEM-130-03.0-F-DV-A-N-TR	6 mm 7 mm 9 mm	Surface Mount	60	Board Guide			Self Mating Non-Gendered Hermaphroditic	0.175 in	4.45 mm	2	Gold	0.8 mm	0.031 in	Flash
Samtec Inc. LSEM-130-04.0-L-DV-A-N-TR	7 mm 8 mm 10 mm	Surface Mount	60	Board Guide	10 Áin	0.25 Ám	Self Mating Non-Gendered Hermaphroditic		0.215 in	2	Gold	0.8 mm	0.031 in		5.46 mm
Samtec Inc. LSEM-130-01-F-DH-A-N-TR		Surface Mount Right Angle	60	Board Guide			Self Mating Non-Gendered Hermaphroditic	0.202 in	5.13 mm	2	Gold	0.8 mm	0.031 in	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

60 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount Gold
