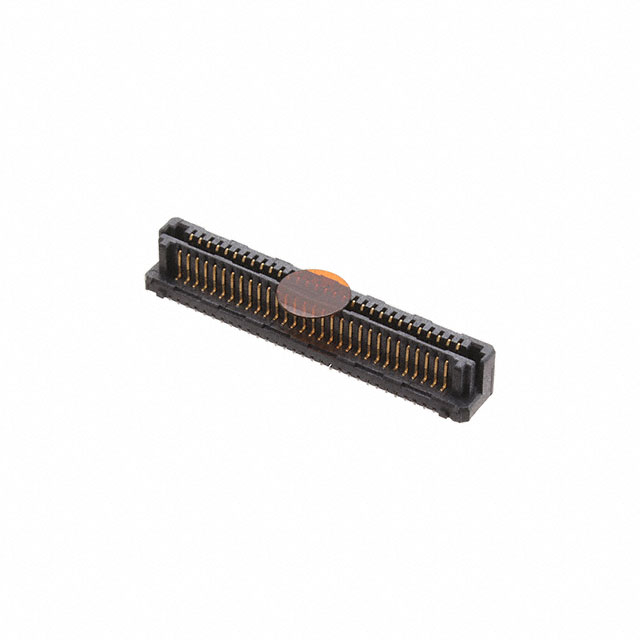

LSEM-130-03.0-L-DV-A-N-K-TR
ActiveSamtec Inc.
CONN SELF-MATE 60POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
LSEM-130-03.0-L-DV-A-N-K-TR
ActiveSamtec Inc.
CONN SELF-MATE 60POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LSEM-130-03.0-L-DV-A-N-K-TR |
|---|---|
| Connector Type | Self Mating, Non-Gendered, Hermaphroditic |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Features | Pick and Place, Board Guide |
| Height Above Board | 0.175 in |
| Height Above Board | 4.45 mm |
| Mated Stacking Heights | 7 mm, 6 mm, 9 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.93 | |
| 10 | $ 6.41 | |||
| 25 | $ 6.06 | |||
| 50 | $ 5.84 | |||
| 100 | $ 4.70 | |||
| Digi-Reel® | 1 | $ 6.93 | ||
| 10 | $ 6.41 | |||
| 25 | $ 6.06 | |||
| 50 | $ 5.84 | |||
| 100 | $ 4.70 | |||
| Tape & Reel (TR) | 575 | $ 4.33 | ||
| 1150 | $ 4.16 | |||
Description
General part information
LSEM-130 Series
60 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount Gold
