LSEM-130 Series

Catalog

CONN SELF-MATE 60POS SMD GOLD

Part	Mated Stacking Heights	Mounting Type	Number of Positions	Features	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Height Above Board	Height Above Board	Number of Rows	Contact Finish	Pitch [x]	Pitch [x]	Contact Finish Thickness	Height Above Board

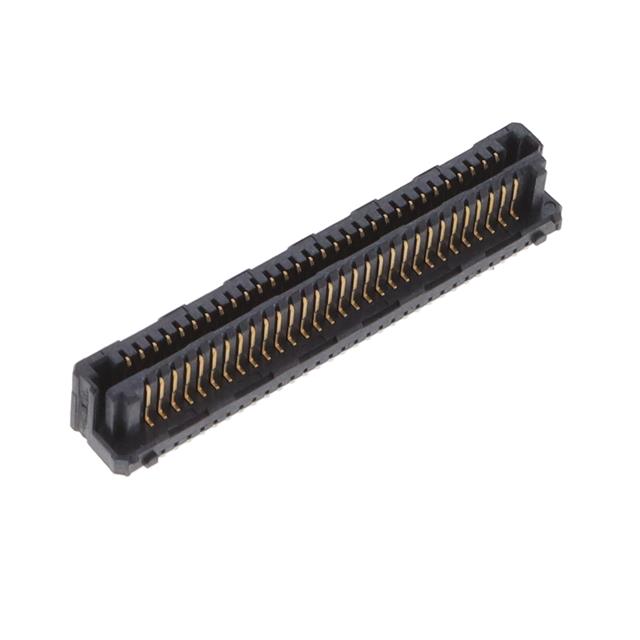

Samtec Inc. LSEM-130-03.0-L-DV-A-N-K-TR	6 mm 7 mm 9 mm	Surface Mount	60	Board Guide Pick and Place	10 Áin	0.25 Ám	Self Mating Non-Gendered Hermaphroditic	0.175 in	4.45 mm	2	Gold	0.8 mm	0.031 in
Samtec Inc. LSEM-130-01-L-DH-A-N-TR		Surface Mount Right Angle	60	Board Guide	10 Áin	0.25 Ám	Self Mating Non-Gendered Hermaphroditic	0.202 in	5.13 mm	2	Gold	0.8 mm	0.031 in
Samtec Inc. LSEM-130-03.0-F-DV-A-N-TR	6 mm 7 mm 9 mm	Surface Mount	60	Board Guide			Self Mating Non-Gendered Hermaphroditic	0.175 in	4.45 mm	2	Gold	0.8 mm	0.031 in	Flash
Samtec Inc. LSEM-130-04.0-L-DV-A-N-TR	7 mm 8 mm 10 mm	Surface Mount	60	Board Guide	10 Áin	0.25 Ám	Self Mating Non-Gendered Hermaphroditic		0.215 in	2	Gold	0.8 mm	0.031 in		5.46 mm
Samtec Inc. LSEM-130-01-F-DH-A-N-TR		Surface Mount Right Angle	60	Board Guide			Self Mating Non-Gendered Hermaphroditic	0.202 in	5.13 mm	2	Gold	0.8 mm	0.031 in	Flash
