929974-01-19-RK

Active

3M (TC)

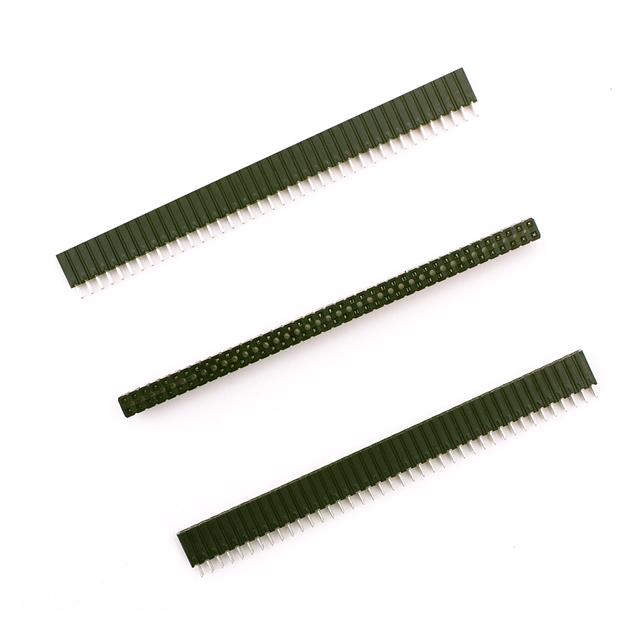

PCB RECEPTACLE, BOARD-TO-BOARD, 2.54 MM, 1 ROWS, 19 CONTACTS, THROUGH HOLE STRAIGHT, 929 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

929974-01-19-RK

Active

3M (TC)

PCB RECEPTACLE, BOARD-TO-BOARD, 2.54 MM, 1 ROWS, 19 CONTACTS, THROUGH HOLE STRAIGHT, 929 SERIES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	929974-01-19-RK

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	8.25 mm
Insulation Height	0.325 in
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	19
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder
Voltage Rating	1500 V

929974 Series

Part	Connector Type	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Termination	Number of Positions	Current Rating (Amps)	Voltage Rating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Insulation Color	Contact Type	Insulation Height	Insulation Height	Fastening Type	Insulation Material	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Contact Material	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post
3M (TC) 929974-01-26	Receptacle	Tin-Lead	2.54 µm	100 µin	UL94 V-0	Solder	26	2 A	1500 V	All	-40 °C	105 ░C	1	Black	Forked	8.25 mm	0.325 in	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Through Hole	2.54 çm	100 çin	Square	Copper Alloy	0.1 in	2.54 mm	3.18 mm	0.125 in	Tin-Lead
3M (TC) 929974-01-23	Receptacle	Tin-Lead	2.54 µm	100 µin	UL94 V-0	Solder	23	2 A	1500 V	All	-40 °C	105 ░C	1	Black	Forked	8.25 mm	0.325 in	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Through Hole	2.54 çm	100 çin	Square	Copper Alloy	0.1 in	2.54 mm	3.18 mm	0.125 in	Tin-Lead
3M (TC) 929974-01-19-RK	Receptacle		2.54 µm	100 µin	UL94 V-0	Solder	19	2 A	1500 V	All	-40 °C	105 ░C	1	Black	Forked	8.25 mm	0.325 in	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Through Hole	2.54 çm	100 çin	Square	Copper Alloy	0.1 in	2.54 mm	3.18 mm	0.125 in	Tin
3M (TC) 929974-01-31-RK	Receptacle		2.54 µm	100 µin	UL94 V-0	Solder	31	2 A	1500 V	All	-40 °C	105 ░C	1	Black	Forked	8.25 mm	0.325 in	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Through Hole	2.54 çm	100 çin	Square	Copper Alloy	0.1 in	2.54 mm	3.18 mm	0.125 in	Tin
3M (TC) 929974-01-13-RK	Receptacle		2.54 µm	100 µin	UL94 V-0	Solder	13	2 A	1500 V	All	-40 °C	105 ░C	1	Black	Forked	8.25 mm	0.325 in	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Through Hole	2.54 çm	100 çin	Square	Copper Alloy	0.1 in	2.54 mm	3.18 mm	0.125 in	Tin
3M (TC) 929974-01-34-RK	Receptacle		2.54 µm	100 µin	UL94 V-0	Solder	34	2 A	1500 V	All	-40 °C	105 ░C	1	Black	Forked	8.25 mm	0.325 in	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Through Hole	2.54 çm	100 çin	Square	Copper Alloy	0.1 in	2.54 mm	3.18 mm	0.125 in	Tin
3M (TC) 929974-01-35	Receptacle	Tin-Lead	2.54 µm	100 µin	UL94 V-0	Solder	35	2 A	1500 V	All	-40 °C	105 ░C	1	Black	Forked	8.25 mm	0.325 in	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Through Hole	2.54 çm	100 çin	Square	Copper Alloy	0.1 in	2.54 mm	3.18 mm	0.125 in	Tin-Lead
3M (TC) 929974-01-29-RK	Receptacle		2.54 µm	100 µin	UL94 V-0	Solder	29	2 A	1500 V	All	-40 °C	105 ░C	1	Black	Forked	8.25 mm	0.325 in	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Through Hole	2.54 çm	100 çin	Square	Copper Alloy	0.1 in	2.54 mm	3.18 mm	0.125 in	Tin
3M (TC) 929974-01-21-RK	Receptacle		2.54 µm	100 µin	UL94 V-0	Solder	21	2 A	1500 V	All	-40 °C	105 ░C	1	Black	Forked	8.25 mm	0.325 in	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Through Hole	2.54 çm	100 çin	Square	Copper Alloy	0.1 in	2.54 mm	3.18 mm	0.125 in	Tin
3M (TC) 929974-01-03-RK	Receptacle		2.54 µm	100 µin	UL94 V-0	Solder		2 A	1500 V	All	-40 °C	105 ░C	1	Black	Forked	8.25 mm	0.325 in	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Through Hole	2.54 çm	100 çin	Square	Copper Alloy	0.1 in	2.54 mm	3.18 mm	0.125 in	Tin
