Technical Specifications
Parameters and characteristics for this part
| Specification | 929974-01-03-RK |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 2.54 çm |
| Contact Finish Thickness - Mating | 100 çin |
| Contact Finish Thickness - Post | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin |
| Contact Length - Post [x] | 3.18 mm |
| Contact Length - Post [x] | 0.125 in |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Forked |
| Current Rating (Amps) | 2 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 8.25 mm |
| Insulation Height | 0.325 in |
| Insulation Material | Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Termination | Solder |
| Voltage Rating | 1500 V |
929974 Series
| Part | Connector Type | Contact Finish - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Material Flammability Rating | Termination | Number of Positions | Current Rating (Amps) | Voltage Rating | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Insulation Color | Contact Type | Insulation Height | Insulation Height | Fastening Type | Insulation Material | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Shape | Contact Material | Pitch - Mating | Pitch - Mating | Contact Length - Post [x] | Contact Length - Post [x] | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | Receptacle | Tin-Lead | 2.54 µm | 100 µin | UL94 V-0 | Solder | 26 | 2 A | 1500 V | All | -40 °C | 105 ░C | 1 | Black | Forked | 8.25 mm | 0.325 in | Push-Pull | Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled | Through Hole | 2.54 çm | 100 çin | Square | Copper Alloy | 0.1 in | 2.54 mm | 3.18 mm | 0.125 in | Tin-Lead |
3M (TC) | Receptacle | Tin-Lead | 2.54 µm | 100 µin | UL94 V-0 | Solder | 23 | 2 A | 1500 V | All | -40 °C | 105 ░C | 1 | Black | Forked | 8.25 mm | 0.325 in | Push-Pull | Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled | Through Hole | 2.54 çm | 100 çin | Square | Copper Alloy | 0.1 in | 2.54 mm | 3.18 mm | 0.125 in | Tin-Lead |
3M (TC) | Receptacle | 2.54 µm | 100 µin | UL94 V-0 | Solder | 19 | 2 A | 1500 V | All | -40 °C | 105 ░C | 1 | Black | Forked | 8.25 mm | 0.325 in | Push-Pull | Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled | Through Hole | 2.54 çm | 100 çin | Square | Copper Alloy | 0.1 in | 2.54 mm | 3.18 mm | 0.125 in | Tin | |
3M (TC) | Receptacle | 2.54 µm | 100 µin | UL94 V-0 | Solder | 31 | 2 A | 1500 V | All | -40 °C | 105 ░C | 1 | Black | Forked | 8.25 mm | 0.325 in | Push-Pull | Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled | Through Hole | 2.54 çm | 100 çin | Square | Copper Alloy | 0.1 in | 2.54 mm | 3.18 mm | 0.125 in | Tin | |
3M (TC) | Receptacle | 2.54 µm | 100 µin | UL94 V-0 | Solder | 13 | 2 A | 1500 V | All | -40 °C | 105 ░C | 1 | Black | Forked | 8.25 mm | 0.325 in | Push-Pull | Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled | Through Hole | 2.54 çm | 100 çin | Square | Copper Alloy | 0.1 in | 2.54 mm | 3.18 mm | 0.125 in | Tin | |
3M (TC) | Receptacle | 2.54 µm | 100 µin | UL94 V-0 | Solder | 34 | 2 A | 1500 V | All | -40 °C | 105 ░C | 1 | Black | Forked | 8.25 mm | 0.325 in | Push-Pull | Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled | Through Hole | 2.54 çm | 100 çin | Square | Copper Alloy | 0.1 in | 2.54 mm | 3.18 mm | 0.125 in | Tin | |
3M (TC) | Receptacle | Tin-Lead | 2.54 µm | 100 µin | UL94 V-0 | Solder | 35 | 2 A | 1500 V | All | -40 °C | 105 ░C | 1 | Black | Forked | 8.25 mm | 0.325 in | Push-Pull | Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled | Through Hole | 2.54 çm | 100 çin | Square | Copper Alloy | 0.1 in | 2.54 mm | 3.18 mm | 0.125 in | Tin-Lead |
3M (TC) | Receptacle | 2.54 µm | 100 µin | UL94 V-0 | Solder | 29 | 2 A | 1500 V | All | -40 °C | 105 ░C | 1 | Black | Forked | 8.25 mm | 0.325 in | Push-Pull | Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled | Through Hole | 2.54 çm | 100 çin | Square | Copper Alloy | 0.1 in | 2.54 mm | 3.18 mm | 0.125 in | Tin | |
3M (TC) | Receptacle | 2.54 µm | 100 µin | UL94 V-0 | Solder | 21 | 2 A | 1500 V | All | -40 °C | 105 ░C | 1 | Black | Forked | 8.25 mm | 0.325 in | Push-Pull | Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled | Through Hole | 2.54 çm | 100 çin | Square | Copper Alloy | 0.1 in | 2.54 mm | 3.18 mm | 0.125 in | Tin | |
3M (TC) | Receptacle | 2.54 µm | 100 µin | UL94 V-0 | Solder | 2 A | 1500 V | All | -40 °C | 105 ░C | 1 | Black | Forked | 8.25 mm | 0.325 in | Push-Pull | Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled | Through Hole | 2.54 çm | 100 çin | Square | Copper Alloy | 0.1 in | 2.54 mm | 3.18 mm | 0.125 in | Tin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.49 | |
| 10 | $ 0.43 | |||
| 100 | $ 0.35 | |||
| 500 | $ 0.31 | |||
| 1000 | $ 0.25 | |||
| 5000 | $ 0.22 | |||
| 10000 | $ 0.21 | |||
Description
General part information
929974 Series

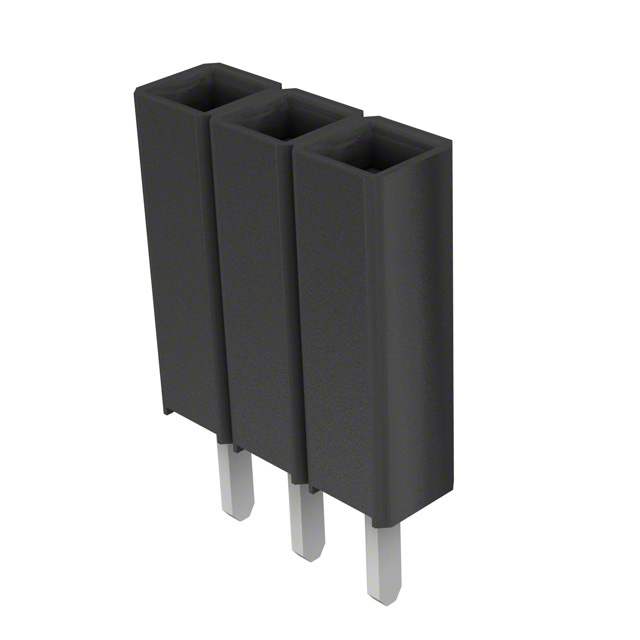

3 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin
