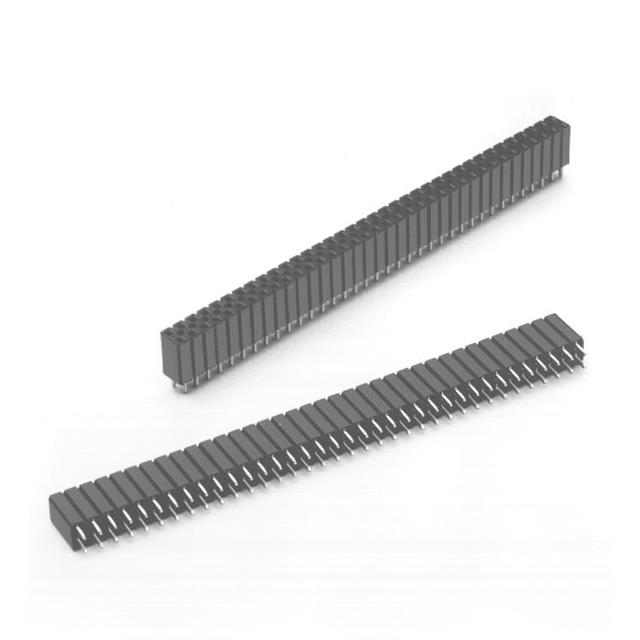

929974-01-21-RK

Active

3M (TC)

80000909616 929974-01-21-RK=21/.100/STR/SKT/1R/.125/BM/TIN/ROHS

Deep-Dive with AI

Search across all available documentation for this part.

929974-01-21-RK

Active

3M (TC)

80000909616 929974-01-21-RK=21/.100/STR/SKT/1R/.125/BM/TIN/ROHS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	929974-01-21-RK

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	8.25 mm
Insulation Height	0.325 in
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	21
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder
Voltage Rating	1500 V

929974 Series

Part	Connector Type	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Termination	Number of Positions	Current Rating (Amps)	Voltage Rating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Insulation Color	Contact Type	Insulation Height	Insulation Height	Fastening Type	Insulation Material	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Contact Material	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post
3M (TC) 929974-01-26	Receptacle	Tin-Lead	2.54 µm	100 µin	UL94 V-0	Solder	26	2 A	1500 V	All	-40 °C	105 ░C	1	Black	Forked	8.25 mm	0.325 in	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Through Hole	2.54 çm	100 çin	Square	Copper Alloy	0.1 in	2.54 mm	3.18 mm	0.125 in	Tin-Lead
3M (TC) 929974-01-23	Receptacle	Tin-Lead	2.54 µm	100 µin	UL94 V-0	Solder	23	2 A	1500 V	All	-40 °C	105 ░C	1	Black	Forked	8.25 mm	0.325 in	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Through Hole	2.54 çm	100 çin	Square	Copper Alloy	0.1 in	2.54 mm	3.18 mm	0.125 in	Tin-Lead
3M (TC) 929974-01-19-RK	Receptacle		2.54 µm	100 µin	UL94 V-0	Solder	19	2 A	1500 V	All	-40 °C	105 ░C	1	Black	Forked	8.25 mm	0.325 in	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Through Hole	2.54 çm	100 çin	Square	Copper Alloy	0.1 in	2.54 mm	3.18 mm	0.125 in	Tin
3M (TC) 929974-01-31-RK	Receptacle		2.54 µm	100 µin	UL94 V-0	Solder	31	2 A	1500 V	All	-40 °C	105 ░C	1	Black	Forked	8.25 mm	0.325 in	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Through Hole	2.54 çm	100 çin	Square	Copper Alloy	0.1 in	2.54 mm	3.18 mm	0.125 in	Tin
3M (TC) 929974-01-13-RK	Receptacle		2.54 µm	100 µin	UL94 V-0	Solder	13	2 A	1500 V	All	-40 °C	105 ░C	1	Black	Forked	8.25 mm	0.325 in	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Through Hole	2.54 çm	100 çin	Square	Copper Alloy	0.1 in	2.54 mm	3.18 mm	0.125 in	Tin
3M (TC) 929974-01-34-RK	Receptacle		2.54 µm	100 µin	UL94 V-0	Solder	34	2 A	1500 V	All	-40 °C	105 ░C	1	Black	Forked	8.25 mm	0.325 in	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Through Hole	2.54 çm	100 çin	Square	Copper Alloy	0.1 in	2.54 mm	3.18 mm	0.125 in	Tin
3M (TC) 929974-01-35	Receptacle	Tin-Lead	2.54 µm	100 µin	UL94 V-0	Solder	35	2 A	1500 V	All	-40 °C	105 ░C	1	Black	Forked	8.25 mm	0.325 in	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Through Hole	2.54 çm	100 çin	Square	Copper Alloy	0.1 in	2.54 mm	3.18 mm	0.125 in	Tin-Lead
3M (TC) 929974-01-29-RK	Receptacle		2.54 µm	100 µin	UL94 V-0	Solder	29	2 A	1500 V	All	-40 °C	105 ░C	1	Black	Forked	8.25 mm	0.325 in	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Through Hole	2.54 çm	100 çin	Square	Copper Alloy	0.1 in	2.54 mm	3.18 mm	0.125 in	Tin
3M (TC) 929974-01-21-RK	Receptacle		2.54 µm	100 µin	UL94 V-0	Solder	21	2 A	1500 V	All	-40 °C	105 ░C	1	Black	Forked	8.25 mm	0.325 in	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Through Hole	2.54 çm	100 çin	Square	Copper Alloy	0.1 in	2.54 mm	3.18 mm	0.125 in	Tin
3M (TC) 929974-01-03-RK	Receptacle		2.54 µm	100 µin	UL94 V-0	Solder		2 A	1500 V	All	-40 °C	105 ░C	1	Black	Forked	8.25 mm	0.325 in	Push-Pull	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	Through Hole	2.54 çm	100 çin	Square	Copper Alloy	0.1 in	2.54 mm	3.18 mm	0.125 in	Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	324	$ 2.16
Newark	Each	250	$ 2.74
		500	$ 2.54
		1000	$ 2.39

Description

General part information

929974 Series

21 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin
