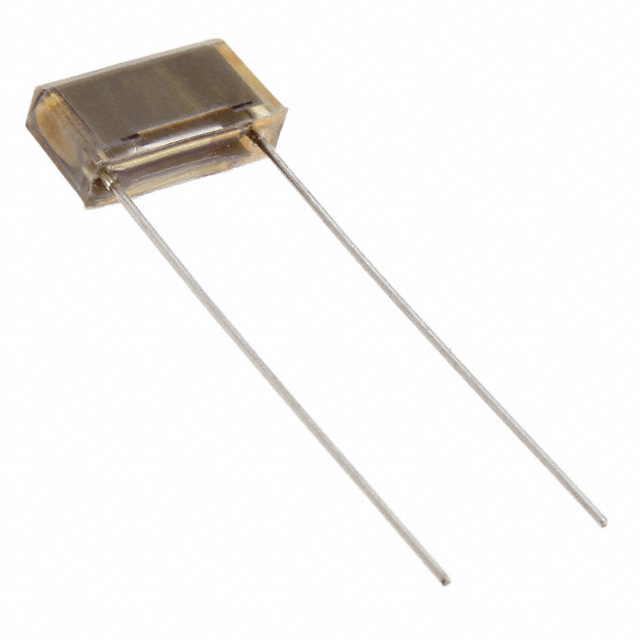

PME271Y410MR19T0

Active

KEMET

CAP FILM 1000PF 20% 1KVDC RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPME271Y410MR19T0 Spec KEM_F3016_PME271Y_Y2_250.pdf

PME271Y410MR19T0

Active

KEMET

CAP FILM 1000PF 20% 1KVDC RADIAL

Deep-Dive with AI

DocumentsPME271Y410MR19T0 Spec KEM_F3016_PME271Y_Y2_250.pdf

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PME271Y410MR19T0

Applications	EMI, RFI Suppression
Capacitance	0.001 µF
Dielectric Material	Paper, Metallized
Height - Seated (Max) [Max] [z]	0.295 in
Height - Seated (Max) [Max] [z]	7.5 mm
Mounting Type	Through Hole
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Ratings	Y2
Size / Dimension [x]	0.531 in
Size / Dimension [x]	13.5 mm
Size / Dimension [y]	0.154 in
Size / Dimension [y]	3.9 mm
Termination	PC Pins
Tolerance	20 %
Voltage Rating - AC	250 V
Voltage Rating - DC	1 kVDC
Voltage Rating - DC	1 kV

PME271 Series

Part	Height - Seated (Max)	Height - Seated (Max) [Max]	Tolerance	Ratings	Capacitance	Voltage Rating - AC	Dielectric Material	Applications	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Package / Case	Lead Spacing	Lead Spacing	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Voltage Rating - DC	Voltage Rating - DC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET PME271MB6100KR30	14.3 mm	0.563 in	10 %	X2	100000 pF	275 V	Paper Metallized	EMI RFI Suppression	Through Hole	-40 °C	110 °C	PC Pins	Radial	0.598 in	15.2 mm	8.5 mm	0.728 in	0.335 in	18.5 mm
KEMET PME271M510MR30		0.413 in	20 %	X2	10000 pF	275 V	Paper Metallized	EMI RFI Suppression	Through Hole	-40 °C	110 °C	PC Pins	Radial	0.598 in	15.2 mm		0.728 in	0.205 "	18.5 mm	5.2 mm	10.5 mm
KEMET PME271Y522MR19T0			20 %	Y2	0.022 µF	250 V	Paper Metallized	EMI RFI Suppression	Through Hole	-40 °C	100 °C	PC Pins	Radial	0.598 in	15.2 mm	7.3 mm	0.728 in	0.287 in	18.5 mm			1 kVDC	1 kV	13 mm	0.512 "
KEMET PME271E522MR30			20 %	X1	0.022 µF	300 V	Paper Metallized	EMI RFI Suppression	Through Hole	-40 °C	110 °C	PC Pins	Radial	0.598 in	15.2 mm	7.3 mm	0.748 in	0.287 in	19 mm					13 mm	0.512 "
KEMET PME271M547MR04		0.492 in	20 %	X2		275 V	Paper Metallized	EMI RFI Suppression	Through Hole	-40 °C	110 °C	PC Pins	Radial	0.598 in	15.2 mm	6 mm	0.728 in	0.236 in	18.5 mm		12.5 mm
KEMET PME271M610KR30	14 mm	0.551 "	10 %	X2	100000 pF	275 V	Paper Metallized	EMI RFI Suppression	Through Hole	-40 °C	110 °C	PC Pins	Radial	0.799 in	20.3 mm	7.6 mm	0.945 in	0.299 in	24 mm
KEMET PME271M447MR30		0.413 in	20 %	X2	4700 pF	275 V	Paper Metallized	EMI RFI Suppression	Through Hole	-40 °C	110 °C	PC Pins	Radial			5.1 mm	0.531 in	0.201 "	13.5 mm		10.5 mm
KEMET PME271Y410MR19T0			20 %	Y2	0.001 µF	250 V	Paper Metallized	EMI RFI Suppression	Through Hole	-40 °C	100 °C	PC Pins	Radial			3.9 mm	0.531 in	0.154 in	13.5 mm			1 kVDC	1 kV	7.5 mm	0.295 in
KEMET PME271M410MR30			20 %	X2	0.001 µF	275 V	Paper Metallized	EMI RFI Suppression	Through Hole	-40 °C	110 °C	PC Pins	Radial			3.9 mm	0.531 in	0.154 in	13.5 mm					7.5 mm	0.295 in
KEMET PME271MB6100MR30	14.3 mm	0.563 in	20 %	X2	100000 pF	275 V	Paper Metallized	EMI RFI Suppression	Through Hole	-40 °C	110 °C	PC Pins	Radial	0.598 in	15.2 mm	8.5 mm	0.728 in	0.335 in	18.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.35
		10	$ 0.85
		50	$ 0.64
		100	$ 0.58
	Tape & Reel (TR)	700	$ 0.46
		1400	$ 0.43
		2100	$ 0.41
		3500	$ 0.39
		4900	$ 0.38
		7000	$ 0.37
		17500	$ 0.35

Description

General part information

PME271 Series

1000 pF Film Capacitor 250V 1000V (1kV) Paper, Metallized Radial

Documents

Technical documentation and resources

PME271Y410MR19T0 Spec

Datasheet

KEM_F3016_PME271Y_Y2_250.pdf

Datasheet
