PME271E522MR30

Obsolete

KEMET

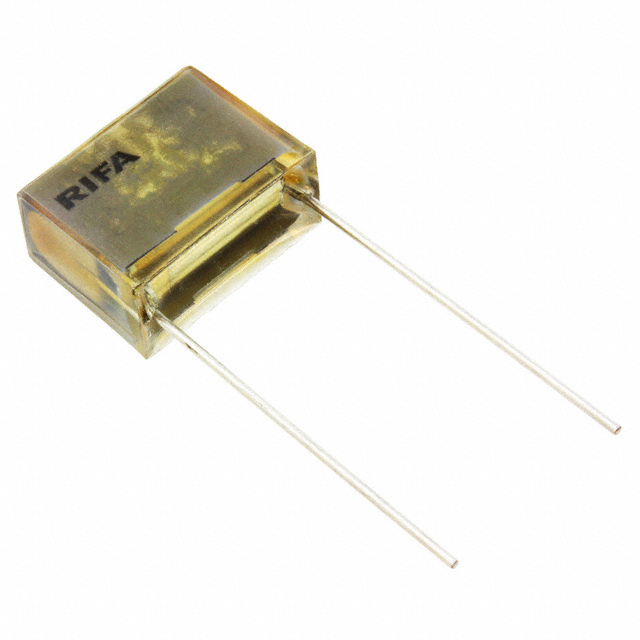

CAP FILM 0.022UF 20% 630VDC RAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsKEM_F3014_PME271E_X1_300.pdf P277QN223M300A +1

PME271E522MR30

Obsolete

KEMET

CAP FILM 0.022UF 20% 630VDC RAD

Deep-Dive with AI

DocumentsKEM_F3014_PME271E_X1_300.pdf P277QN223M300A +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PME271E522MR30

Applications	EMI, RFI Suppression
Capacitance	0.022 µF
Dielectric Material	Paper, Metallized
Height - Seated (Max) [Max] [z]	13 mm
Height - Seated (Max) [Max] [z]	0.512 "
Lead Spacing	0.598 in
Lead Spacing	15.2 mm
Mounting Type	Through Hole
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Ratings	X1
Size / Dimension [x]	0.748 in
Size / Dimension [x]	19 mm
Size / Dimension [y]	7.3 mm
Size / Dimension [y]	0.287 in
Termination	PC Pins
Tolerance	20 %
Voltage Rating - AC	300 V

PME271 Series

Part	Height - Seated (Max)	Height - Seated (Max) [Max]	Tolerance	Ratings	Capacitance	Voltage Rating - AC	Dielectric Material	Applications	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Package / Case	Lead Spacing	Lead Spacing	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Voltage Rating - DC	Voltage Rating - DC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET PME271MB6100KR30	14.3 mm	0.563 in	10 %	X2	100000 pF	275 V	Paper Metallized	EMI RFI Suppression	Through Hole	-40 °C	110 °C	PC Pins	Radial	0.598 in	15.2 mm	8.5 mm	0.728 in	0.335 in	18.5 mm
KEMET PME271M510MR30		0.413 in	20 %	X2	10000 pF	275 V	Paper Metallized	EMI RFI Suppression	Through Hole	-40 °C	110 °C	PC Pins	Radial	0.598 in	15.2 mm		0.728 in	0.205 "	18.5 mm	5.2 mm	10.5 mm
KEMET PME271Y522MR19T0			20 %	Y2	0.022 µF	250 V	Paper Metallized	EMI RFI Suppression	Through Hole	-40 °C	100 °C	PC Pins	Radial	0.598 in	15.2 mm	7.3 mm	0.728 in	0.287 in	18.5 mm			1 kVDC	1 kV	13 mm	0.512 "
KEMET PME271E522MR30			20 %	X1	0.022 µF	300 V	Paper Metallized	EMI RFI Suppression	Through Hole	-40 °C	110 °C	PC Pins	Radial	0.598 in	15.2 mm	7.3 mm	0.748 in	0.287 in	19 mm					13 mm	0.512 "
KEMET PME271M547MR04		0.492 in	20 %	X2		275 V	Paper Metallized	EMI RFI Suppression	Through Hole	-40 °C	110 °C	PC Pins	Radial	0.598 in	15.2 mm	6 mm	0.728 in	0.236 in	18.5 mm		12.5 mm
KEMET PME271M610KR30	14 mm	0.551 "	10 %	X2	100000 pF	275 V	Paper Metallized	EMI RFI Suppression	Through Hole	-40 °C	110 °C	PC Pins	Radial	0.799 in	20.3 mm	7.6 mm	0.945 in	0.299 in	24 mm
KEMET PME271M447MR30		0.413 in	20 %	X2	4700 pF	275 V	Paper Metallized	EMI RFI Suppression	Through Hole	-40 °C	110 °C	PC Pins	Radial			5.1 mm	0.531 in	0.201 "	13.5 mm		10.5 mm
KEMET PME271Y410MR19T0			20 %	Y2	0.001 µF	250 V	Paper Metallized	EMI RFI Suppression	Through Hole	-40 °C	100 °C	PC Pins	Radial			3.9 mm	0.531 in	0.154 in	13.5 mm			1 kVDC	1 kV	7.5 mm	0.295 in
KEMET PME271M410MR30			20 %	X2	0.001 µF	275 V	Paper Metallized	EMI RFI Suppression	Through Hole	-40 °C	110 °C	PC Pins	Radial			3.9 mm	0.531 in	0.154 in	13.5 mm					7.5 mm	0.295 in
KEMET PME271MB6100MR30	14.3 mm	0.563 in	20 %	X2	100000 pF	275 V	Paper Metallized	EMI RFI Suppression	Through Hole	-40 °C	110 °C	PC Pins	Radial	0.598 in	15.2 mm	8.5 mm	0.728 in	0.335 in	18.5 mm
