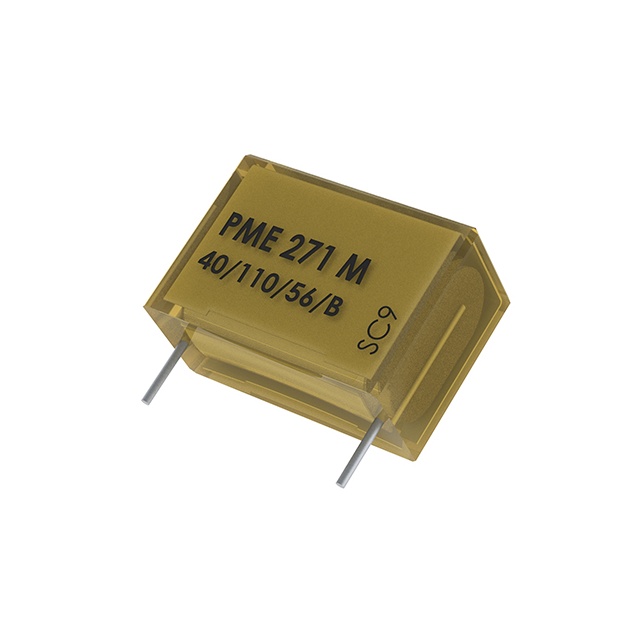

PME271M610KR30

Active

KEMET

CAP FILM 0.1UF 10% 630VDC RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PME271M610KR30

Active

KEMET

CAP FILM 0.1UF 10% 630VDC RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PME271M610KR30

Applications	EMI, RFI Suppression
Capacitance	100000 pF
Dielectric Material	Paper, Metallized
Height - Seated (Max)	14 mm
Height - Seated (Max) [Max]	0.551 "
Lead Spacing	20.3 mm
Lead Spacing	0.799 in
Mounting Type	Through Hole
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Ratings	X2
Size / Dimension [x]	24 mm
Size / Dimension [x]	0.945 in
Size / Dimension [y]	7.6 mm
Size / Dimension [y]	0.299 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	275 V

PME271 Series

Part	Height - Seated (Max)	Height - Seated (Max) [Max]	Tolerance	Ratings	Capacitance	Voltage Rating - AC	Dielectric Material	Applications	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Package / Case	Lead Spacing	Lead Spacing	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max]	Voltage Rating - DC	Voltage Rating - DC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET PME271MB6100KR30	14.3 mm	0.563 in	10 %	X2	100000 pF	275 V	Paper Metallized	EMI RFI Suppression	Through Hole	-40 °C	110 °C	PC Pins	Radial	0.598 in	15.2 mm	8.5 mm	0.728 in	0.335 in	18.5 mm
KEMET PME271M510MR30		0.413 in	20 %	X2	10000 pF	275 V	Paper Metallized	EMI RFI Suppression	Through Hole	-40 °C	110 °C	PC Pins	Radial	0.598 in	15.2 mm		0.728 in	0.205 "	18.5 mm	5.2 mm	10.5 mm
KEMET PME271Y522MR19T0			20 %	Y2	0.022 µF	250 V	Paper Metallized	EMI RFI Suppression	Through Hole	-40 °C	100 °C	PC Pins	Radial	0.598 in	15.2 mm	7.3 mm	0.728 in	0.287 in	18.5 mm			1 kVDC	1 kV	13 mm	0.512 "
KEMET PME271E522MR30			20 %	X1	0.022 µF	300 V	Paper Metallized	EMI RFI Suppression	Through Hole	-40 °C	110 °C	PC Pins	Radial	0.598 in	15.2 mm	7.3 mm	0.748 in	0.287 in	19 mm					13 mm	0.512 "
KEMET PME271M547MR04		0.492 in	20 %	X2		275 V	Paper Metallized	EMI RFI Suppression	Through Hole	-40 °C	110 °C	PC Pins	Radial	0.598 in	15.2 mm	6 mm	0.728 in	0.236 in	18.5 mm		12.5 mm
KEMET PME271M610KR30	14 mm	0.551 "	10 %	X2	100000 pF	275 V	Paper Metallized	EMI RFI Suppression	Through Hole	-40 °C	110 °C	PC Pins	Radial	0.799 in	20.3 mm	7.6 mm	0.945 in	0.299 in	24 mm
KEMET PME271M447MR30		0.413 in	20 %	X2	4700 pF	275 V	Paper Metallized	EMI RFI Suppression	Through Hole	-40 °C	110 °C	PC Pins	Radial			5.1 mm	0.531 in	0.201 "	13.5 mm		10.5 mm
KEMET PME271Y410MR19T0			20 %	Y2	0.001 µF	250 V	Paper Metallized	EMI RFI Suppression	Through Hole	-40 °C	100 °C	PC Pins	Radial			3.9 mm	0.531 in	0.154 in	13.5 mm			1 kVDC	1 kV	7.5 mm	0.295 in
KEMET PME271M410MR30			20 %	X2	0.001 µF	275 V	Paper Metallized	EMI RFI Suppression	Through Hole	-40 °C	110 °C	PC Pins	Radial			3.9 mm	0.531 in	0.154 in	13.5 mm					7.5 mm	0.295 in
KEMET PME271MB6100MR30	14.3 mm	0.563 in	20 %	X2	100000 pF	275 V	Paper Metallized	EMI RFI Suppression	Through Hole	-40 °C	110 °C	PC Pins	Radial	0.598 in	15.2 mm	8.5 mm	0.728 in	0.335 in	18.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1.84
		10	$ 1.42
		50	$ 1.30
		100	$ 1.08
		500	$ 0.87
		1000	$ 0.76
		2500	$ 0.73
		5000	$ 0.71

Description

General part information

PME271 Series

0.1 µF Film Capacitor 275V 630V Paper, Metallized Radial
