17-10039

Active

Amphenol CONEC

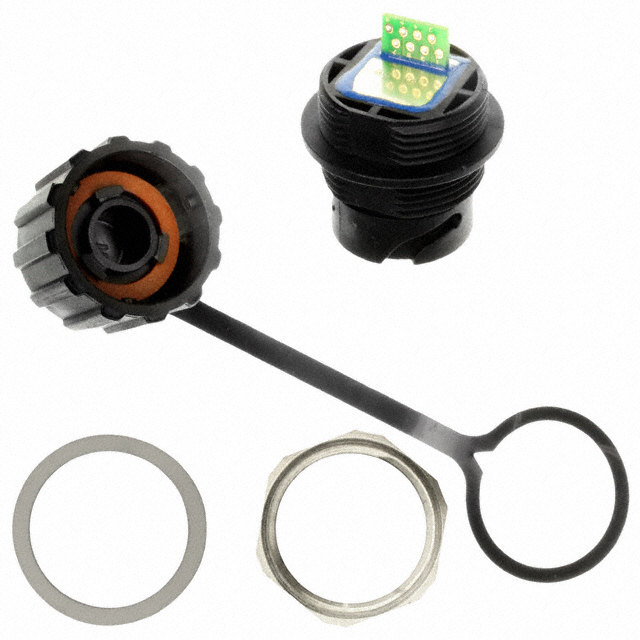

MODULAR CONN, RJ45 JACK, 8P8C, PANEL ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN Datasheet

17-10039

Active

Amphenol CONEC

MODULAR CONN, RJ45 JACK, 8P8C, PANEL ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDrawing EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	17-10039

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Features	Circular Bayonet Coupling, Potted, Cover
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Ingress Protection	IP67 - Dust Tight, Waterproof
LED Color	Does Not Contain LED
Mounting Type	Bulkhead, Panel Mount
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Straight
Ratings	Cat5e
Shielding	Shielded
Tab Direction	User Selectable
Termination	PC Board, Solder

17-1003 Series

Part	LED Color	Number of Positions/Contacts	Mounting Type	Number of Rows	Tab Direction	Orientation	Number of Ports	Termination	Contact Finish	Housing Material	Connector Type	Ratings	Contact Finish Thickness	Contact Finish Thickness	Features	Ingress Protection	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Style	Color	Cable Type
Amphenol CONEC 17-10037	Does Not Contain LED	8p8c (RJ45 Ethernet)	Bulkhead Panel Mount	1	User Selectable	Straight	1	Color Coded Block IDC	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Jack	Cat5e	50 µin	1.27 µm	Circular Bayonet Coupling Cover Potted	IP67 - Dust Tight Waterproof	Phosphor Bronze	85 °C	-40 °C	Shielded
Amphenol CONEC 17-10039	Does Not Contain LED	8p8c (RJ45 Ethernet)	Bulkhead Panel Mount	1	User Selectable	Straight	1	PC Board Solder	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Jack	Cat5e	50 µin	1.27 µm	Circular Bayonet Coupling Cover Potted	IP67 - Dust Tight Waterproof	Phosphor Bronze	85 °C	-40 °C	Shielded
Amphenol CONEC 17-10035	Does Not Contain LED	8p8c (RJ45 Ethernet)	Bulkhead Panel Mount	1	User Selectable	Straight	1	PC Board Solder	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Jack	Cat5e	50 µin	1.27 µm	Circular Bayonet Coupling Potted	IP67 - Dust Tight Waterproof	Phosphor Bronze	85 °C	-40 °C	Shielded
Amphenol CONEC 17-10030		8p8c (RJ45 Ethernet)	Free Hanging (In-Line)								Plug to Plug				Circular Bayonet Coupling Molded Plugs					Shielded	Cat5e Industrial Environments - IP67	Black	Round Cable
Amphenol CONEC 17-10033	Does Not Contain LED	8p8c (RJ45 Ethernet)	Bulkhead Panel Mount	1	User Selectable	Straight	1	Color Coded Block IDC	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Jack	Cat5e	50 µin	1.27 µm	Circular Bayonet Coupling Potted	IP67 - Dust Tight Waterproof	Phosphor Bronze	85 °C	-40 °C	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.81
		10	$ 16.00
Newark	Each	1	$ 23.30
		5	$ 22.08
		10	$ 20.97
		25	$ 19.99
		50	$ 19.01
		100	$ 18.15

Description

General part information

17-1003 Series

Jack Modular Connector 8p8c (RJ45, Ethernet) Straight Shielded Cat5e

Documents

Technical documentation and resources

Drawing EN

Datasheet
