17-10030

Active

Amphenol CONEC

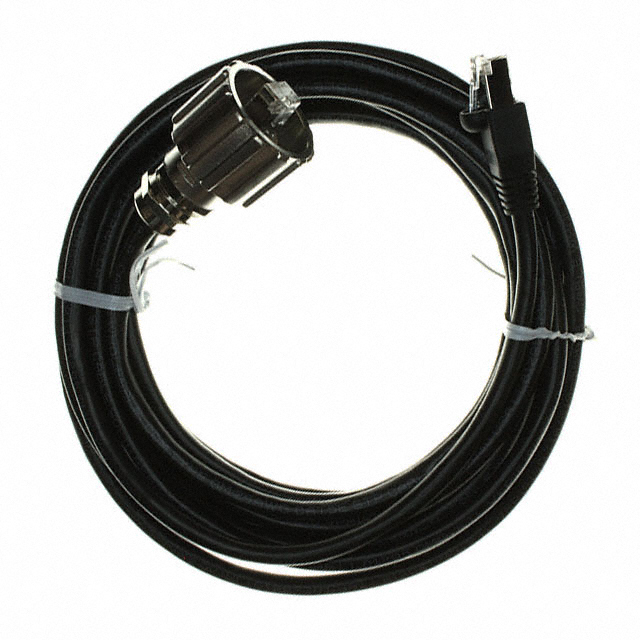

CABLE MOD 8P8C PLUG-PLUG 16.4'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSealed Industrial Ethernet Circular IP67 RJ45

17-10030

Active

Amphenol CONEC

CABLE MOD 8P8C PLUG-PLUG 16.4'

Deep-Dive with AI

DocumentsSealed Industrial Ethernet Circular IP67 RJ45

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	17-10030

Cable Type	Round Cable
Color	Black
Connector Type	Plug to Plug
Features	Circular Bayonet Coupling, Molded Plugs
Mounting Type	Free Hanging (In-Line)
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Shielding	Shielded
Style	Cat5e, Industrial Environments - IP67

17-1003 Series

Part	LED Color	Number of Positions/Contacts	Mounting Type	Number of Rows	Tab Direction	Orientation	Number of Ports	Termination	Contact Finish	Housing Material	Connector Type	Ratings	Contact Finish Thickness	Contact Finish Thickness	Features	Ingress Protection	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Style	Color	Cable Type
Amphenol CONEC 17-10037	Does Not Contain LED	8p8c (RJ45 Ethernet)	Bulkhead Panel Mount	1	User Selectable	Straight	1	Color Coded Block IDC	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Jack	Cat5e	50 µin	1.27 µm	Circular Bayonet Coupling Cover Potted	IP67 - Dust Tight Waterproof	Phosphor Bronze	85 °C	-40 °C	Shielded
Amphenol CONEC 17-10039	Does Not Contain LED	8p8c (RJ45 Ethernet)	Bulkhead Panel Mount	1	User Selectable	Straight	1	PC Board Solder	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Jack	Cat5e	50 µin	1.27 µm	Circular Bayonet Coupling Cover Potted	IP67 - Dust Tight Waterproof	Phosphor Bronze	85 °C	-40 °C	Shielded
Amphenol CONEC 17-10035	Does Not Contain LED	8p8c (RJ45 Ethernet)	Bulkhead Panel Mount	1	User Selectable	Straight	1	PC Board Solder	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Jack	Cat5e	50 µin	1.27 µm	Circular Bayonet Coupling Potted	IP67 - Dust Tight Waterproof	Phosphor Bronze	85 °C	-40 °C	Shielded
Amphenol CONEC 17-10030		8p8c (RJ45 Ethernet)	Free Hanging (In-Line)								Plug to Plug				Circular Bayonet Coupling Molded Plugs					Shielded	Cat5e Industrial Environments - IP67	Black	Round Cable
Amphenol CONEC 17-10033	Does Not Contain LED	8p8c (RJ45 Ethernet)	Bulkhead Panel Mount	1	User Selectable	Straight	1	Color Coded Block IDC	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Jack	Cat5e	50 µin	1.27 µm	Circular Bayonet Coupling Potted	IP67 - Dust Tight Waterproof	Phosphor Bronze	85 °C	-40 °C	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	25	$ 30.45

Description

General part information

17-1003 Series

Modular Cable Plug to Plug 8p8c (RJ45, Ethernet) 16.40' (5.00m) Shielded

Documents

Technical documentation and resources

Sealed Industrial Ethernet Circular IP67 RJ45

Datasheet
