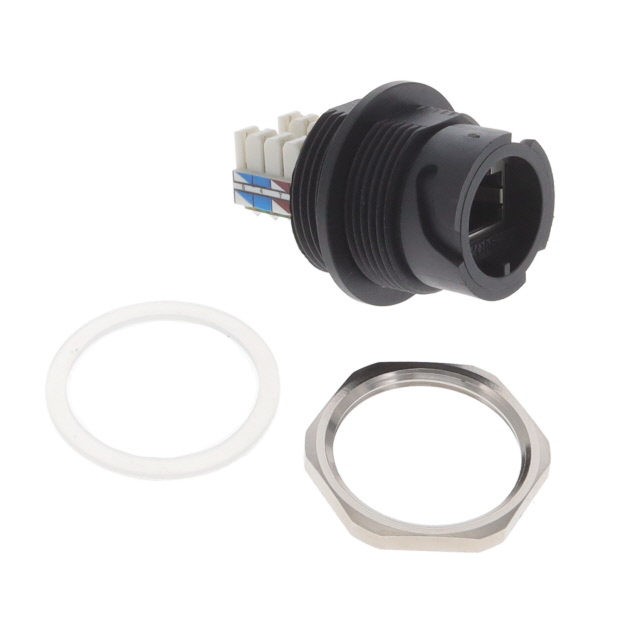

17-10033
ActiveAmphenol CONEC
CONN MOD JACK 8P8C SHIELDED
Deep-Dive with AI
Search across all available documentation for this part.
17-10033
ActiveAmphenol CONEC
CONN MOD JACK 8P8C SHIELDED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 17-10033 |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Phosphor Bronze |
| Features | Potted, Circular Bayonet Coupling |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| LED Color | Does Not Contain LED |
| Mounting Type | Bulkhead, Panel Mount |
| Number of Ports | 1 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Straight |
| Ratings | Cat5e |
| Shielding | Shielded |
| Tab Direction | User Selectable |
| Termination | IDC, Color Coded Block |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 21.97 | |
| 10 | $ 19.24 | |||
| 25 | $ 18.41 | |||
| 50 | $ 17.82 | |||
| 100 | $ 17.22 | |||
| 250 | $ 16.27 | |||
| 500 | $ 15.80 | |||
Description
General part information
17-1003 Series
Jack Modular Connector 8p8c (RJ45, Ethernet) Straight Shielded Cat5e
