Technical Specifications
Parameters and characteristics for this part

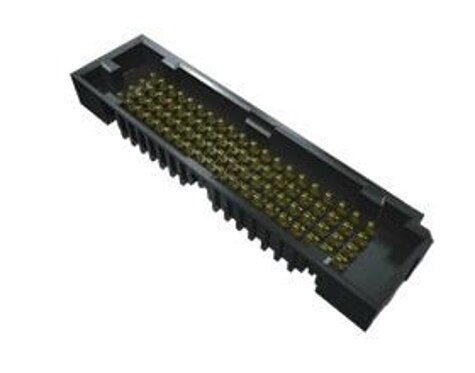

| Specification | LPAM-20-01.5-S-08-2-K-TR |
|---|---|
| Connector Type | Male Pins, Array |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Pick and Place, Board Guide |
| Height Above Board | 0.165 " |
| Height Above Board | 4.2 mm |
| Mated Stacking Heights | 4.5 mm, 5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 160 |
| Number of Rows | 8 |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
