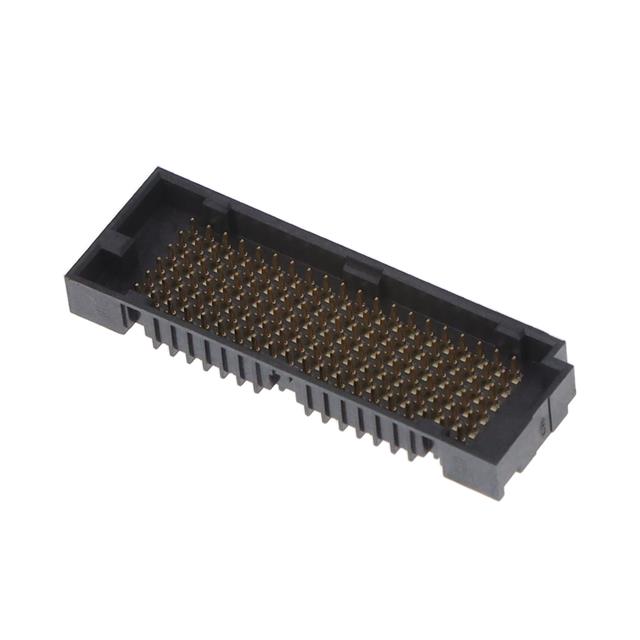

LPAM-20-01.5-L-06-2-K-TR

Active

Samtec Inc.

OPEN PIN FIELD ARRAY M 120 1.27M

Search across all available documentation for this part.

Active

Samtec Inc.

OPEN PIN FIELD ARRAY M 120 1.27M

Technical Specifications

Parameters and characteristics for this part

Board to Board & Mezzanine Connectors .050" LP Array High-Speed High-Density Low Profile Open-Pin-Field Array, Terminal

Part	Number of Positions	Mounting Type	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Features	Number of Rows	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights	Contact Finish	Height Above Board	Height Above Board
Samtec Inc. LPAM-20-01.0-L-06-2-K-TR	120	Surface Mount	Array Male Pins	10 Áin	0.25 Ám	0.05 in	1.27 mm	Board Guide Pick and Place	6	3.68 mm	0.145 in	4 mm 4.5 mm	Gold
Samtec Inc. LPAM-20-01.5-S-08-2-K-TR	160	Surface Mount	Array Male Pins	30 Áin	0.76 Ám	0.05 in	1.27 mm	Board Guide Pick and Place	8			4.5 mm 5 mm	Gold	0.165 "	4.2 mm
Samtec Inc. LPAM-20-01.5-S-08-1-K-TR	160	Surface Mount	Array Male Pins	30 Áin	0.76 Ám	0.05 in	1.27 mm	Board Guide Pick and Place	8			4.5 mm 5 mm	Gold	0.165 "	4.2 mm
Samtec Inc. LPAM-20-01.5-L-06-2-K-TR	120	Surface Mount	Array Male Pins	10 Áin	0.25 Ám	0.05 in	1.27 mm	Board Guide Pick and Place	6			4.5 mm 5 mm	Gold	0.165 "	4.2 mm
Samtec Inc. LPAM-20-01.0-S-08-2-K-TR	160	Surface Mount	Array Male Pins	30 Áin	0.76 Ám	0.05 in	1.27 mm	Board Guide Pick and Place	8	3.68 mm	0.145 in	4 mm 4.5 mm	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Board to Board & Mezzanine Connectors .050" LP Array High-Speed High-Density Low Profile Open-Pin-Field Array, Terminal
