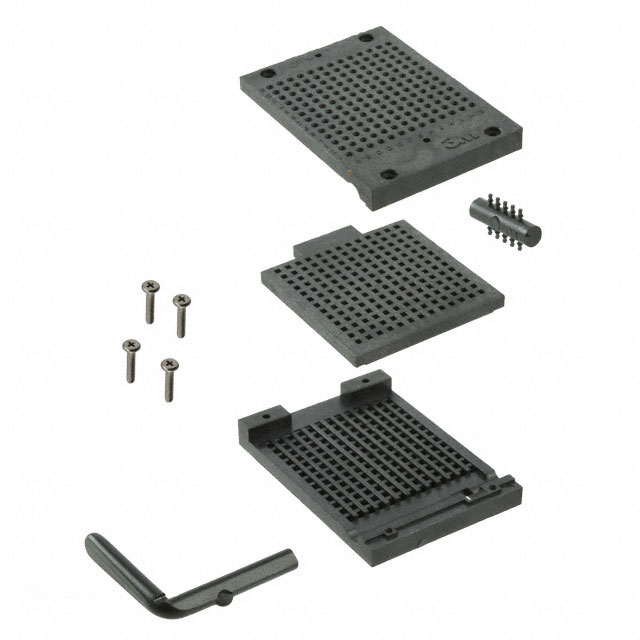

CONN SOCKET PGA ZIF 169POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Txtool™ Burn-In Grid ZIP Sockets +1

200-6313-9UN-1900

Active

CONN SOCKET PGA ZIF 169POS GOLD

Deep-Dive with AI

DocumentsDatasheet Txtool™ Burn-In Grid ZIP Sockets +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

200 Series

169 (13 x 13) Pos PGA, ZIF (ZIP) Socket Gold Through Hole

Documents

Technical documentation and resources

Datasheet

Txtool™ Burn-In Grid ZIP Sockets

Datasheet

Textool™ Test, Burn-In Socket Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	200-6313-9UN-1900	200 Series

Accessory Type	-	Plug
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	30 µin	30 µin
Contact Finish Thickness - Post	0.76 µm	0.76 µm
Contact Material - Mating	Beryllium Copper	Beryllium Copper
Contact Material - Post	Beryllium Copper	Beryllium Copper
Current Rating (Amps)	1 A	1 A
For Use With/Related Products	-	3M™ PGA Sockets
Housing Material	Polyethersulfone (PES)	Polyethersulfone (PES)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions or Pins (Grid)	169	121 - 625
Number of Positions or Pins (Grid)	-	17
Number of Positions or Pins (Grid)	-	289
Number of Positions or Pins (Grid)	-	17
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Pitch - Post	2.54 mm	2.54 mm
Pitch - Post	0.1 in	0.1 in
Termination	Solder	Solder
Termination Post Length	3.3 mm	3.3 mm
Termination Post Length	0.13 in	0.13 in
Type	ZIF (ZIP), PGA	ZIF (ZIP), PGA

200 Series

CONN SOCKET PGA ZIF 361POS GOLD

Part	Contact Material - Post	Termination Post Length	Termination Post Length	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Mounting Type	Material Flammability Rating	Number of Positions or Pins (Grid)	Current Rating (Amps)	Contact Finish - Post	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Type	Contact Material - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Post	Pitch - Post	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Accessory Type	For Use With/Related Products
3M 200-6319-9UN-1900	Beryllium Copper	3.3 mm	0.13 in	30 Áin	0.76 Ám	Solder	Through Hole	UL94 V-0	361	1 A	Gold	Polyethersulfone (PES)	-55 °C	150 °C	0.1 in	2.54 mm	Gold	PGA, ZIF (ZIP)	Beryllium Copper	30 µin	0.76 µm	2.54 mm	0.1 in
3M 200-6313-9UN-1900	Beryllium Copper	3.3 mm	0.13 in	30 Áin	0.76 Ám	Solder	Through Hole	UL94 V-0	169	1 A	Gold	Polyethersulfone (PES)	-55 °C	150 °C	0.1 in	2.54 mm	Gold	PGA, ZIF (ZIP)	Beryllium Copper	30 µin	0.76 µm	2.54 mm	0.1 in
3M 200-6317-9UN-1900	Beryllium Copper	3.3 mm	0.13 in	30 Áin	0.76 Ám	Solder	Through Hole	UL94 V-0		1 A	Gold	Polyethersulfone (PES)	-55 °C	150 °C	0.1 in	2.54 mm	Gold	PGA, ZIF (ZIP)	Beryllium Copper	30 µin	0.76 µm	2.54 mm	0.1 in	17	289	17
3M 200-6321-9UN-1900	Beryllium Copper	3.3 mm	0.13 in	30 Áin	0.76 Ám	Solder	Through Hole	UL94 V-0	441	1 A	Gold	Polyethersulfone (PES)	-55 °C	150 °C	0.1 in	2.54 mm	Gold	PGA, ZIF (ZIP)	Beryllium Copper	30 µin	0.76 µm	2.54 mm	0.1 in
3M 200-4660-14-1900								UL94 V-0					-55 °C	150 °C													Plug	3M™ PGA Sockets
3M 200-6325-9UN-1900	Beryllium Copper	3.3 mm	0.13 in	30 Áin	0.76 Ám	Solder	Through Hole	UL94 V-0	625	1 A	Gold	Polyethersulfone (PES)	-55 °C	150 °C	0.1 in	2.54 mm	Gold	PGA, ZIF (ZIP)	Beryllium Copper	30 µin	0.76 µm	2.54 mm	0.1 in
3M 200-6311-9UN-1900	Beryllium Copper	3.3 mm	0.13 in	30 Áin	0.76 Ám	Solder	Through Hole	UL94 V-0	121	1 A	Gold	Polyethersulfone (PES)	-55 °C	150 °C	0.1 in	2.54 mm	Gold	PGA, ZIF (ZIP)	Beryllium Copper	30 µin	0.76 µm	2.54 mm	0.1 in
