IPZA60R120P7XKSA1

Obsolete

Infineon Technologies

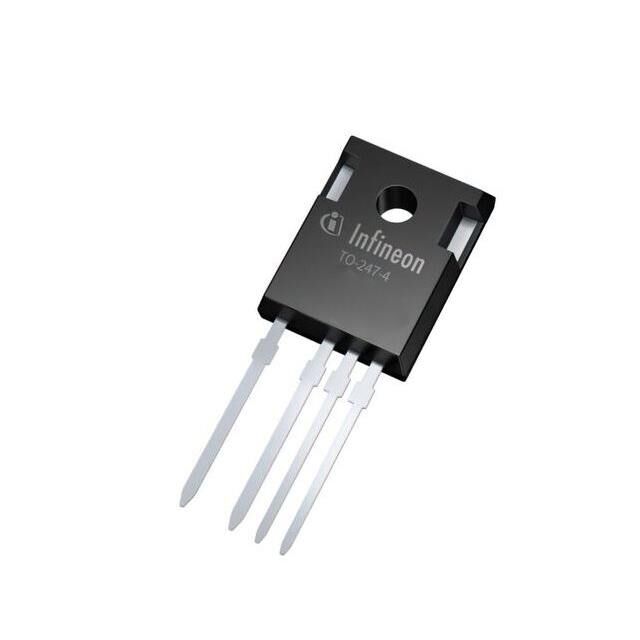

COOLMOS™ P7 N-CHANNEL SUPERJUNCTION MOSFET 600 V ; TO-247 4PIN PACKAGE; 120 MOHM; PRICE/PERFORMANCE

Deep-Dive with AI

Search across all available documentation for this part.

IPZA60R120P7XKSA1

Obsolete

Infineon Technologies

COOLMOS™ P7 N-CHANNEL SUPERJUNCTION MOSFET 600 V ; TO-247 4PIN PACKAGE; 120 MOHM; PRICE/PERFORMANCE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPZA60R120P7XKSA1

Current - Continuous Drain (Id) @ 25°C	26 A
Drain to Source Voltage (Vdss)	600 V
Drive Voltage (Max Rds On, Min Rds On)	10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	36 nC
Input Capacitance (Ciss) (Max) @ Vds [Max]	1544 pF
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	TO-247-4
Power Dissipation (Max) [Max]	95 W
Rds On (Max) @ Id, Vgs [Max]	120 mOhm
Supplier Device Package	PG-TO247-4
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	4 V

IPZA60 Series

Part	Gate Charge (Qg) (Max) @ Vgs [Max]	FET Type	Drain to Source Voltage (Vdss)	Drive Voltage (Max Rds On, Min Rds On)	Input Capacitance (Ciss) (Max) @ Vds	Operating Temperature [Min]	Operating Temperature [Max]	Vgs(th) (Max) @ Id	Vgs (Max)	Package / Case	Current - Continuous Drain (Id) @ 25°C	Mounting Type	Supplier Device Package	Technology	Power Dissipation (Max) [Max]	Input Capacitance (Ciss) (Max) @ Vds [Max]	Rds On (Max) @ Id, Vgs [Max]	Gate Charge (Qg) (Max) @ Vgs
Infineon Technologies IPZA60R024P7XKSA1	164 nC	N-Channel	600 V	10 V	7144 pF	-55 °C	150 °C	4 V	20 V	TO-247-4	101 A	Through Hole	PG-TO247-4-3	MOSFET (Metal Oxide)	291 W
Infineon Technologies IPZA60R120P7XKSA1		N-Channel	600 V	10 V		-55 °C	150 °C	4 V	20 V	TO-247-4	26 A	Through Hole	PG-TO247-4	MOSFET (Metal Oxide)	95 W	1544 pF	120 mOhm	36 nC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Newark	Each	1	$ 4.86
		10	$ 3.62
		25	$ 3.46
		50	$ 3.32
		100	$ 3.16
		480	$ 3.15
		720	$ 2.88

Description

General part information

IPZA60 Series

The600V CoolMOS™ P7superjunction (SJ) MOSFET is the successor to the600V CoolMOS™ P6series. It continues to balance the need for high efficiency against the ease-of-use in the design process. The best-in-class RonxA and the inherently low gate charge (QG) of the CoolMOS™ 7th generation platform ensure its high efficiency.
