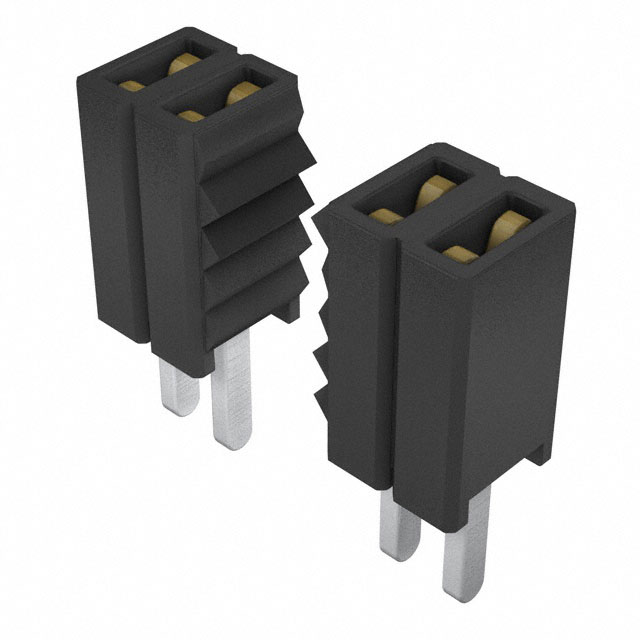

SLM-105-01-L-S

Active

Samtec Inc.

CONN RCPT 5POS 0.05 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsThrough-Hole Micro Socket, 0.050" x 0.100" Pitch SLM Datasheet +1

SLM-105-01-L-S

Active

Samtec Inc.

CONN RCPT 5POS 0.05 GOLD PCB

Deep-Dive with AI

DocumentsThrough-Hole Micro Socket, 0.050" x 0.100" Pitch SLM Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SLM-105-01-L-S

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post	2.92 mm
Contact Length - Post	0.115 in
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.57 mm
Insulation Height	0.18 "
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Termination	Solder

SLM-105 Series

Part	Fastening Type	Number of Positions	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Connector Type	Contact Finish - Post	Number of Positions Loaded	Contact Type	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Insulation Color	Mounting Type	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Insulation Material	Pitch - Mating	Pitch - Mating	Termination
Samtec Inc. SLM-105-01-G-D	Push-Pull	10	Rectangular	-55 °C	125 °C	2.54 mm	0.1 in	Phosphor Bronze	Receptacle	Gold	All	Forked	4.57 mm	0.18 "	2.92 mm	0.115 in	Black	Through Hole	2	3 µin	0.076 µm	0.51 µm	20 µin	Gold	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Solder
Samtec Inc. SLM-105-01-F-D	Push-Pull	10	Rectangular	-55 °C	125 °C	2.54 mm	0.1 in	Phosphor Bronze	Receptacle	Tin	All	Forked	4.57 mm	0.18 "	2.92 mm	0.115 in	Black	Through Hole	2			0.076 µm	3 µin	Gold	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Solder
Samtec Inc. SLM-105-01-L-S	Push-Pull		Rectangular	-55 °C	125 °C			Phosphor Bronze	Receptacle	Tin	All	Forked	4.57 mm	0.18 "	2.92 mm	0.115 in	Black	Through Hole	1			0.25 çm	10 çin	Gold	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Solder
Samtec Inc. SLM-105-01-S-S	Push-Pull		Rectangular	-55 °C	125 °C			Phosphor Bronze	Receptacle	Tin	All	Forked	4.57 mm	0.18 "	2.92 mm	0.115 in	Black	Through Hole	1			0.76 Ám	30 Áin	Gold	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Solder
Samtec Inc. SLM-105-01-S-D	Push-Pull	10	Rectangular	-55 °C	125 °C	2.54 mm	0.1 in	Phosphor Bronze	Receptacle	Tin	All	Forked	4.57 mm	0.18 "	2.92 mm	0.115 in	Black	Through Hole	2			0.76 Ám	30 Áin	Gold	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.19
		50	$ 0.92
		100	$ 0.74
		500	$ 0.63
		1000	$ 0.59

Description

General part information

SLM-105 Series

5 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold

Documents

Technical documentation and resources

Through-Hole Micro Socket, 0.050" x 0.100" Pitch

SLM Datasheet

Datasheet
