SLM-105-01-G-D
ActiveSamtec Inc.

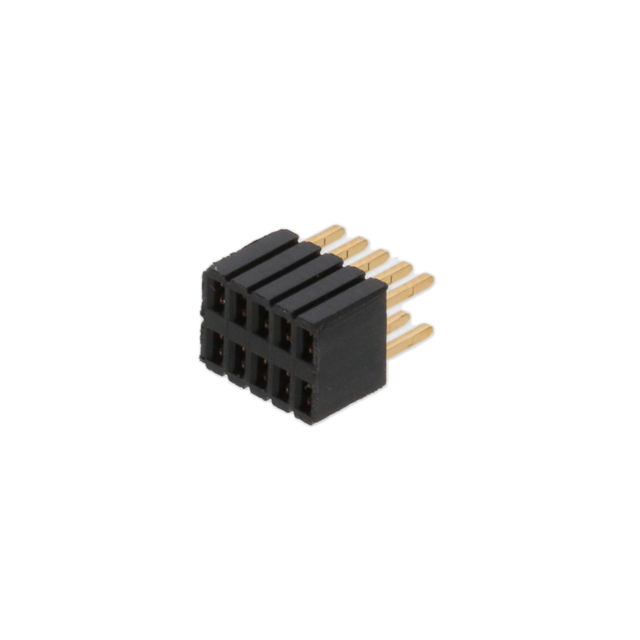

CONN SOCKET STRIP SKT 10 POS 1.2
Deep-Dive with AI
Search across all available documentation for this part.
SLM-105-01-G-D
ActiveSamtec Inc.
CONN SOCKET STRIP SKT 10 POS 1.2
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SLM-105-01-G-D |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 0.51 µm |
| Contact Finish Thickness - Mating | 20 µin |
| Contact Finish Thickness - Post | 3 µin |
| Contact Finish Thickness - Post | 0.076 µm |
| Contact Length - Post | 2.92 mm |
| Contact Length - Post | 0.115 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Rectangular |
| Contact Type | Forked |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 4.57 mm |
| Insulation Height | 0.18 " |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Termination | Solder |
SLM-105 Series
| Part | Fastening Type | Number of Positions | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Material | Connector Type | Contact Finish - Post | Number of Positions Loaded | Contact Type | Insulation Height | Insulation Height | Contact Length - Post | Contact Length - Post | Insulation Color | Mounting Type | Number of Rows | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Insulation Material | Pitch - Mating | Pitch - Mating | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Push-Pull | 10 | Rectangular | -55 °C | 125 °C | 2.54 mm | 0.1 in | Phosphor Bronze | Receptacle | Gold | All | Forked | 4.57 mm | 0.18 " | 2.92 mm | 0.115 in | Black | Through Hole | 2 | 3 µin | 0.076 µm | 0.51 µm | 20 µin | Gold | Liquid Crystal Polymer (LCP) | 0.05 in | 1.27 mm | Solder |
Samtec Inc. | Push-Pull | 10 | Rectangular | -55 °C | 125 °C | 2.54 mm | 0.1 in | Phosphor Bronze | Receptacle | Tin | All | Forked | 4.57 mm | 0.18 " | 2.92 mm | 0.115 in | Black | Through Hole | 2 | 0.076 µm | 3 µin | Gold | Liquid Crystal Polymer (LCP) | 0.05 in | 1.27 mm | Solder | ||
Samtec Inc. | Push-Pull | Rectangular | -55 °C | 125 °C | Phosphor Bronze | Receptacle | Tin | All | Forked | 4.57 mm | 0.18 " | 2.92 mm | 0.115 in | Black | Through Hole | 1 | 0.25 çm | 10 çin | Gold | Liquid Crystal Polymer (LCP) | 0.05 in | 1.27 mm | Solder | |||||
Samtec Inc. | Push-Pull | Rectangular | -55 °C | 125 °C | Phosphor Bronze | Receptacle | Tin | All | Forked | 4.57 mm | 0.18 " | 2.92 mm | 0.115 in | Black | Through Hole | 1 | 0.76 Ám | 30 Áin | Gold | Liquid Crystal Polymer (LCP) | 0.05 in | 1.27 mm | Solder | |||||
Samtec Inc. | Push-Pull | 10 | Rectangular | -55 °C | 125 °C | 2.54 mm | 0.1 in | Phosphor Bronze | Receptacle | Tin | All | Forked | 4.57 mm | 0.18 " | 2.92 mm | 0.115 in | Black | Through Hole | 2 | 0.76 Ám | 30 Áin | Gold | Liquid Crystal Polymer (LCP) | 0.05 in | 1.27 mm | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.33 | |
| 50 | $ 1.90 | |||
| 100 | $ 1.61 | |||
| 500 | $ 1.44 | |||
| 1000 | $ 1.34 | |||
Description
General part information
SLM-105 Series
10 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
