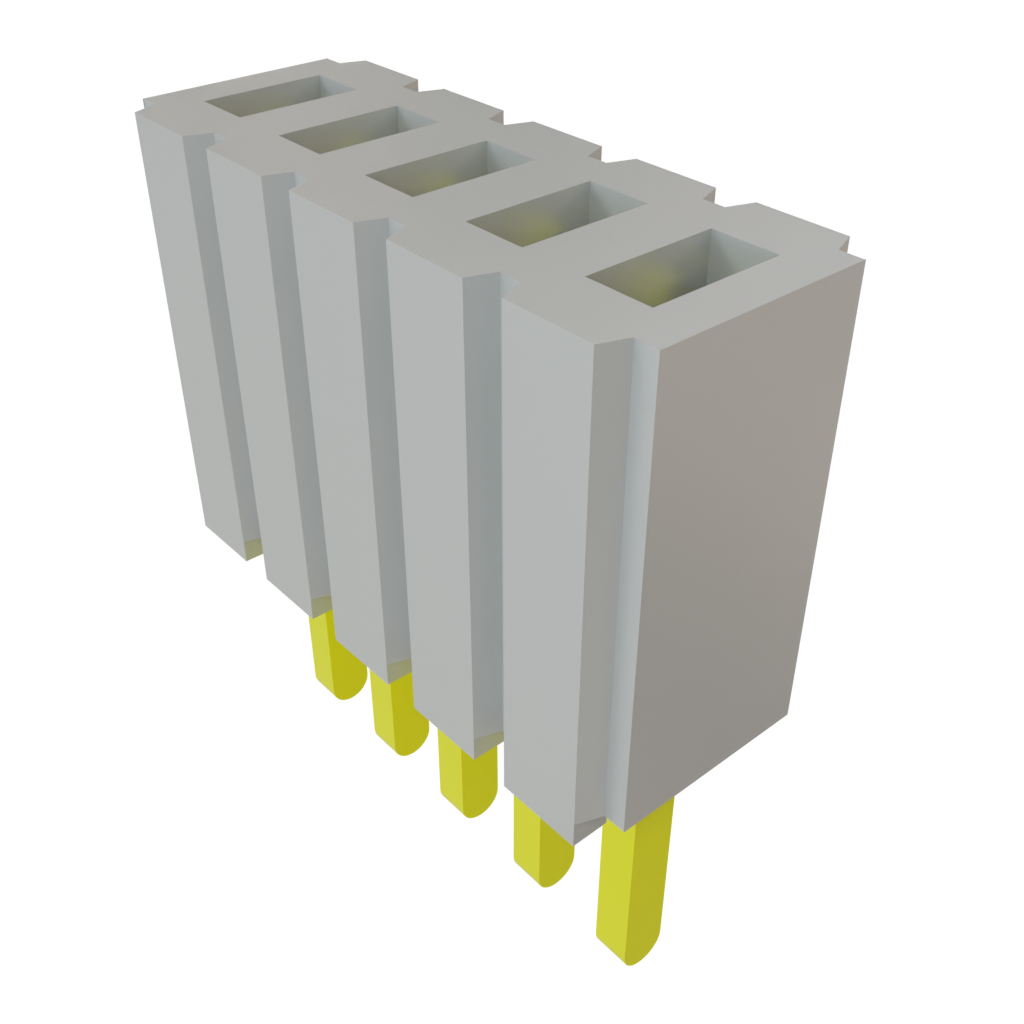

SLM-105 Series
Manufacturer: Samtec Inc.
Beta
⌘K
CONN SOCKET STRIP SKT 10 POS 1.2
| Part | Number of Rows | Contact Finish - Post | Termination | Number of Positions | Insulation Color | Pitch - Mating | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Length - Post | Insulation Height | Mounting Type | Connector Type | Contact Type | Number of Positions Loaded | Operating Temperature (Max) | Operating Temperature (Min) | Style | Row Spacing - Mating | Fastening Type | Insulation Material | Contact Shape | Contact Material | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Samtec Inc. | 2 | Gold | Solder | 10 | Black | 0.05 in | Gold | 20 Ąin | 0.115 in | 0.18 in | Through Hole | Receptacle | Forked | All | 125 °C | -55 °C | Board | 0.1 in | Push-Pull | Liquid Crystal Polymer (LCP) | Rectangular | Phosphor Bronze | 3 µin |
 Samtec Inc. | 2 | Tin | Solder | 10 | Black | 0.05 in | Gold | 3 µin | 0.115 in | 0.18 in | Through Hole | Receptacle | Forked | All | 125 °C | -55 °C | Board | 0.1 in | Push-Pull | Liquid Crystal Polymer (LCP) | Rectangular | Phosphor Bronze | |
 Samtec Inc. | 1 | Tin | Solder | 5 | Black | 0.05 in | Gold | 10 µin | 0.115 in | 0.18 in | Through Hole | Receptacle | Forked | All | 125 °C | -55 °C | Board | Push-Pull | Liquid Crystal Polymer (LCP) | Rectangular | Phosphor Bronze | ||
 Samtec Inc. | 1 | Tin | Solder | 5 | Black | 0.05 in | Gold | 30 µin | 0.115 in | 0.18 in | Through Hole | Receptacle | Forked | All | 125 °C | -55 °C | Board | Push-Pull | Liquid Crystal Polymer (LCP) | Rectangular | Phosphor Bronze | ||
 Samtec Inc. | 2 | Tin | Solder | 10 | Black | 0.05 in | Gold | 30 µin | 0.115 in | 0.18 in | Through Hole | Receptacle | Forked | All | 125 °C | -55 °C | Board | 0.1 in | Push-Pull | Liquid Crystal Polymer (LCP) | Rectangular | Phosphor Bronze |
