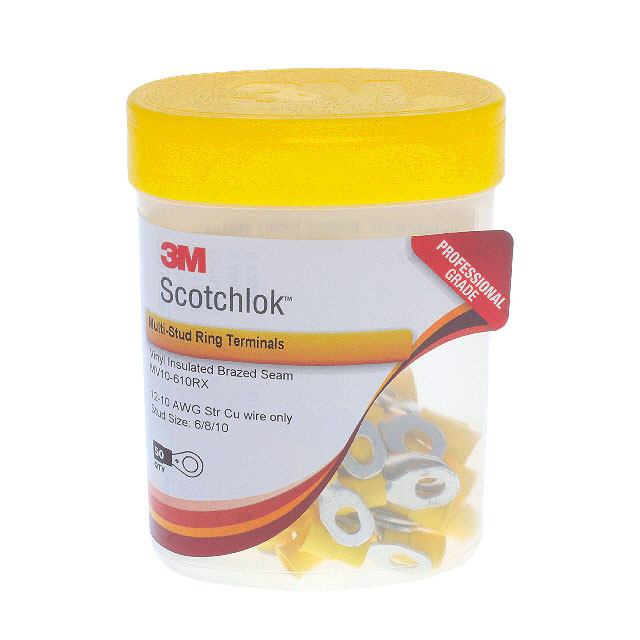

MV10-610RX-BOTTLE
Active3M
CONN RING MULTSTUD 10-12AWG 50PC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MV10-610RX-BOTTLE
Active3M
CONN RING MULTSTUD 10-12AWG 50PC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MV10-610RX-BOTTLE | MV10 Series |
|---|---|---|
| Color | Yellow | Yellow |
| Contact Finish | Tin | Tin |
| Contact Material | ETP, Copper | ETP, Copper |
| Features | Brazed Seam | Brazed Seam |
| Insulation | Insulated | Insulated, Fully Insulated |
| Insulation Diameter | 0.25 " | 0.25 " |
| Insulation Diameter | 6.35 mm | 6.35 mm |
| Length - Overall | 30.23 mm | 26.16 - 30.23 mm |
| Length - Overall | 1.19 in | 1.19 in |
| Length - Overall | - | 1.03 - 1.5 in |
| Length - Overall | - | 31.5 - 38.1 mm |
| Length - Ring Center to Termination | - | 7.11 - 7.37 mm |
| Length - Ring Center to Termination | - | 0.28 - 0.29 in |
| Length - Ring Center to Termination | - | 0.44 in |
| Length - Ring Center to Termination | - | 11.18 mm |
| Length - Termination | - | 13.97 mm |
| Length - Termination | - | 0.55 in |
| Material - Insulation | Vinyl | Vinyl |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Wire Entries | - | 2 |
| Stud/Tab Size | 10 Stud, 8 Stud, 6 Stud | 0.25 - 10 Stud |
| Stud/Tab Size | - | 8 Stud, 1/2 Stud |
| Terminal Type | Multi-Stud | Circular, Multi-Stud, Snap, Spring, Standard, Butt Splice, Inline, Individual Openings |
| Termination | Crimp | Crimp |
| Thickness | 0.04 in | 0.04 in |
| Thickness | 1.02 mm | 1.02 mm |
| Width - Outer Edges | 9.91 mm | 9.91 - 13.46 mm |
| Width - Outer Edges | 0.39 in | 0.39 in |
| Width - Outer Edges | - | 0.28 - 0.75 in |
| Width - Outer Edges | - | 7.11 - 19.05 mm |
| Width - Outer Edges | - | 9.65 mm |
| Width - Outer Edges | - | 0.38 " |
| Wire Gauge [Max] | 12 AWG | 12 AWG |
| Wire Gauge [Min] | 10 AWG | 10 AWG |
MV10 Series
CONN RING CIRC 10-12AWG 50PC
| Part | Termination | Features | Thickness | Thickness | Wire Gauge [Max] | Wire Gauge [Min] | Mounting Type | Contact Finish | Length - Overall [x] | Length - Overall [x] | Width - Outer Edges [y] | Width - Outer Edges | Insulation | Terminal Type | Contact Material | Stud/Tab Size | Color | Material - Insulation | Insulation Diameter | Insulation Diameter | Width - Outer Edges | Length - Overall | Length - Overall | Length - Termination | Length - Termination | Length - Ring Center to Termination | Length - Ring Center to Termination | Width - Outer Edges [y] | Stud/Tab Size | Length - Ring Center to Termination [x] | Length - Ring Center to Termination [x] | Width - Outer Edges [x] | Width - Outer Edges [x] | Number of Wire Entries |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Crimp | Brazed Seam | 0.04 in | 1.02 mm | 12 AWG | 10 AWG | Free Hanging (In-Line) | Tin | 1.26 in | 32 mm | 0.53 in | 13.46 mm | Insulated | Circular | Copper, ETP | 0.3125 Stud | Yellow | Vinyl | 0.25 " | 6.35 mm | |||||||||||||||
Crimp | Brazed Seam | 0.04 in | 1.02 mm | 12 AWG | 10 AWG | Free Hanging (In-Line) | Tin | 9.91 mm | Insulated | Multi-Stud | Copper, ETP | 6 Stud, 8 Stud, 10 Stud | Yellow | Vinyl | 0.25 " | 6.35 mm | 0.39 in | 30.23 mm | 1.19 in | |||||||||||||||
Crimp | Brazed Seam | 12 AWG | 10 AWG | Free Hanging (In-Line) | Tin | 1.03 in | 0.32 in | Insulated | Snap, Spring | Copper, ETP | 10 Stud | Yellow | Vinyl | 0.25 " | 6.35 mm | 26.16 mm | 13.97 mm | 0.55 in | 7.11 mm | 0.28 in | 8.13 mm | |||||||||||||
Crimp | Brazed Seam | 12 AWG | 10 AWG | Free Hanging (In-Line) | Tin | 1.03 in | 0.32 in | Insulated | Snap, Spring | Copper, ETP | Yellow | Vinyl | 0.25 " | 6.35 mm | 26.16 mm | 13.97 mm | 0.55 in | 7.11 mm | 0.28 in | 8.13 mm | 8 Stud | |||||||||||||
Crimp | Brazed Seam | 12 AWG | 10 AWG | Free Hanging (In-Line) | Tin | 1.03 in | 0.32 in | Insulated | Standard | Copper, ETP | 6 Stud | Yellow | Vinyl | 0.25 " | 6.35 mm | 26.16 mm | 13.97 mm | 0.55 in | 7.37 mm | 0.29 in | 8.13 mm | |||||||||||||
Crimp | Brazed Seam | 12 AWG | 10 AWG | Free Hanging (In-Line) | Tin | 1.03 in | 0.32 in | Insulated | Snap, Spring | Copper, ETP | Yellow | Vinyl | 0.25 " | 6.35 mm | 26.16 mm | 13.97 mm | 0.55 in | 7.11 mm | 0.28 in | 8.13 mm | 8 Stud | |||||||||||||
Crimp | Brazed Seam | 12 AWG | 10 AWG | Free Hanging (In-Line) | Tin | 1.24 in | 31.5 mm | 0.43 " | Insulated | Snap, Spring | Copper, ETP | 0.25 Stud | Yellow | Vinyl | 0.25 " | 6.35 mm | 13.97 mm | 0.55 in | 10.92 mm | 0.44 in | 11.18 mm | |||||||||||||
3M MV10-8RK | Crimp | Brazed Seam | 0.04 in | 1.02 mm | 12 AWG | 10 AWG | Free Hanging (In-Line) | Tin | 1.03 in | Insulated | Circular | Copper, ETP | Yellow | Vinyl | 0.25 " | 6.35 mm | 26.16 mm | 8 Stud | 9.65 mm | 0.38 " | ||||||||||||||
Crimp | Brazed Seam | 0.04 in | 1.02 mm | 12 AWG | 10 AWG | Free Hanging (In-Line) | Tin | 1.5 in | 38.1 mm | 0.75 in | Insulated | Circular | Copper, ETP | Yellow | Vinyl | 0.25 " | 6.35 mm | 19.05 mm | 1/2 Stud | |||||||||||||||
Crimp | Brazed Seam | 0.04 in | 1.02 mm | 12 AWG | 10 AWG | Free Hanging (In-Line) | 1.03 in | Insulated | Circular | 6 Stud | Yellow | Vinyl | 0.25 " | 6.35 mm | 26.16 mm | 9.65 mm | 0.38 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 59.36 | |
Description
General part information
MV10 Series
Ring Terminal Connector 6, 8, 10 Stud Multi-Stud 10-12 AWG Crimp
