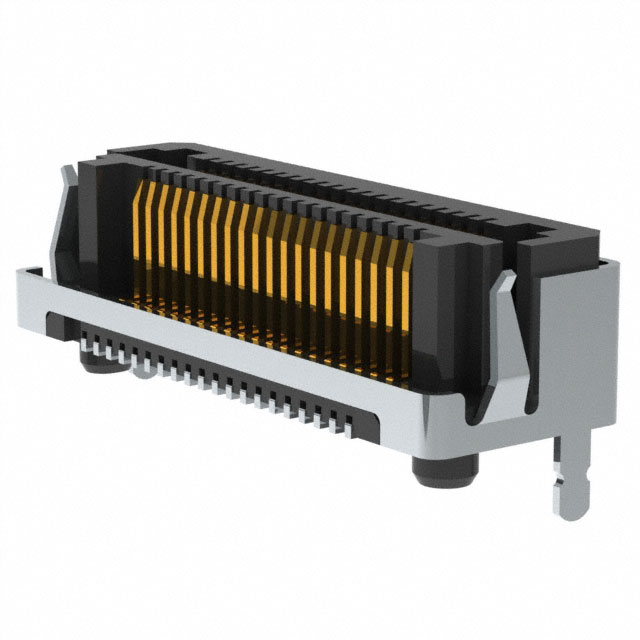

LSHM-120-02.5-L-DV-A-S-K-TR

Active

Samtec Inc.

MEZZANINE CONNECTOR, HIGH-SPEED, HERMAPHRODITIC, 0.5 MM, 2 ROWS, 40 CONTACTS, SURFACE MOUNT

Deep-Dive with AI

DocumentsLSHM Series Datasheet 03 LSHM Datasheet +6

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LSHM-120-02.5-L-DV-A-S-K-TR

Connector Type	Self Mating, Non-Gendered, Hermaphroditic
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place, Board Guide, Shielded
Height Above Board [z]	3.96 mm
Height Above Board [z]	0.156 in
Mated Stacking Heights	8.5 mm, 5 mm, 6.5 mm, 5.5 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

LSHM-120 Series

Part	Pitch [x]	Pitch [x]	Number of Rows	Features	Number of Positions	Contact Finish	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Height Above Board	Height Above Board
Samtec Inc. LSHM-120-01-F-DV-A-N	0.5 mm	0.02 in	2	Board Guide	40	Gold	Surface Mount	3 Áin	0.076 Ám	Self Mating Non-Gendered Hermaphroditic
Samtec Inc. LSHM-120-06.0-L-DV-A-S-TR	0.5 mm	0.02 in	2	Board Guide Shielded	40	Gold	Surface Mount	10 Áin	0.25 Ám	Self Mating Non-Gendered Hermaphroditic	8.5 mm 9 mm 10 mm 12 mm	7.45 mm	0.293 in
Samtec Inc. LSHM-120-L1-F-DH-A-N-K-TR	0.5 mm	0.02 in	2	Board Guide Pick and Place	40	Gold	Surface Mount Right Angle	3 Áin	0.076 Ám	Self Mating Non-Gendered Hermaphroditic				0.202 in	5.13 mm
Samtec Inc. LSHM-120-L1-L-DH-A-N-TR	0.5 mm	0.02 in	2	Board Guide	40	Gold	Surface Mount Right Angle	10 Áin	0.25 Ám	Self Mating Non-Gendered Hermaphroditic				0.202 in	5.13 mm
Samtec Inc. LSHM-120-02.5-L-DV-A-S-K-TR	0.5 mm	0.02 in	2	Board Guide Pick and Place Shielded	40	Gold	Surface Mount	10 Áin	0.25 Ám	Self Mating Non-Gendered Hermaphroditic	5 mm 5.5 mm 6.5 mm 8.5 mm	3.96 mm	0.156 in
Samtec Inc. LSHM-120-02.5-F-DV-A-N-TR	0.5 mm	0.02 in	2	Board Guide	40	Gold	Surface Mount	3 Áin	0.076 Ám	Self Mating Non-Gendered Hermaphroditic	5 mm 5.5 mm 6.5 mm 8.5 mm	3.96 mm	0.156 in
Samtec Inc. LSHM-120-02.5-L-A-N-K-TR	0.5 mm	0.02 in	2	Board Guide Pick and Place	40	Gold		10 Áin	0.25 Ám	Self Mating Non-Gendered Hermaphroditic
Samtec Inc. LSHM-120-02.5-F-DV-A-N-K-TR	0.5 mm	0.02 in	2	Board Guide Pick and Place	40	Gold	Surface Mount	3 Áin	0.076 Ám	Self Mating Non-Gendered Hermaphroditic	5 mm 5.5 mm 6.5 mm 8.5 mm	3.96 mm	0.156 in
Samtec Inc. LSHM-120-06.0-L-DV-A-S-K-TR	0.5 mm	0.02 in	2	Board Guide Pick and Place Shielded	40	Gold	Surface Mount	10 Áin	0.25 Ám	Self Mating Non-Gendered Hermaphroditic	8.5 mm 9 mm 10 mm 12 mm	7.45 mm	0.293 in
Samtec Inc. LSHM-120-06.0-F-DV-A-N-TR	0.5 mm	0.02 in	2	Board Guide	40	Gold	Surface Mount	3 Áin	0.076 Ám	Self Mating Non-Gendered Hermaphroditic	8.5 mm 9 mm 10 mm 12 mm	7.45 mm	0.293 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.86
		50	$ 4.46
		100	$ 4.18
		250	$ 3.77
	Digi-Reel®	1	$ 4.86
		50	$ 4.46
		100	$ 4.18
		250	$ 3.77
	Tape & Reel (TR)	750	$ 3.61
		1500	$ 3.38
Newark	Each (Supplied on Cut Tape)	1	$ 4.98
		10	$ 4.61
		25	$ 4.46
		50	$ 4.33
		100	$ 4.05
		250	$ 3.66

Description

General part information

LSHM-120 Series

40 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount Gold

Documents

Technical documentation and resources

LSHM Series Datasheet 03

Datasheet

LSHM Datasheet

Datasheet

LSHM Series Other Related Documents 03

0.50 mm Razor Beam™ High-Speed Hermaphroditic Terminal/Socket Strip, Optional Shielding

Datasheet

LSHM-120-02.5-L-DV-A-S-K-TR

Deep-Dive with AI

LSHM-120-02.5-L-DV-A-S-K-TR

Deep-Dive with AI

Technical Specifications

LSHM-120 Series

Pricing

Description

LSHM-120 Series

Documents

LSHM Series Datasheet 03

LSHM Datasheet

LSHM Series Other Related Documents 03

0.50 mm Razor Beam&#8482; High-Speed Hermaphroditic Terminal/Socket Strip, Optional Shielding

Datasheet

Manufacturer Catalogue EN

Technical Data Sheet EN

One Page Summary EN

LSHM-120 Series

0.50 mm Razor Beam™ High-Speed Hermaphroditic Terminal/Socket Strip, Optional Shielding
