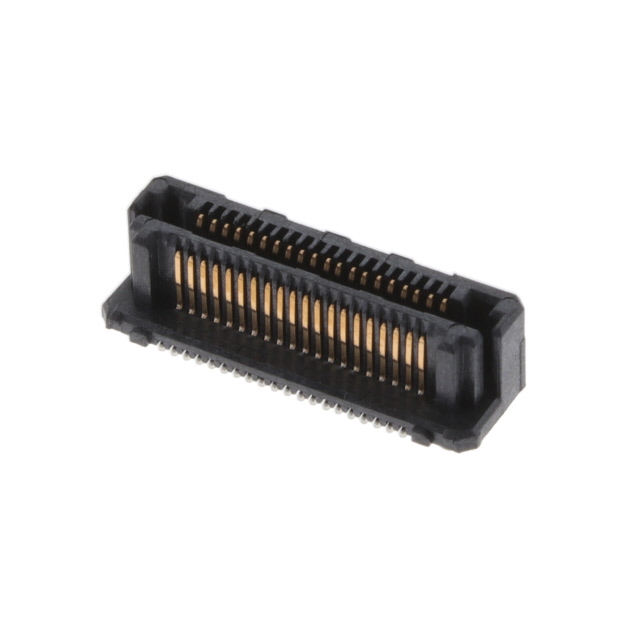

LSHM-120-02.5-F-DV-A-N-TR
ActiveSamtec Inc.
CONN SELF-MATE 40P SMD GALVANIZD
Deep-Dive with AI
Search across all available documentation for this part.
LSHM-120-02.5-F-DV-A-N-TR
ActiveSamtec Inc.
CONN SELF-MATE 40P SMD GALVANIZD
Technical Specifications
Parameters and characteristics for this part
| Specification | LSHM-120-02.5-F-DV-A-N-TR |
|---|---|
| Connector Type | Self Mating, Non-Gendered, Hermaphroditic |
| Contact Finish | Gold |
| Contact Finish Thickness | 3 Áin |
| Contact Finish Thickness | 0.076 Ám |
| Features | Board Guide |
| Height Above Board [z] | 3.96 mm |
| Height Above Board [z] | 0.156 in |
| Mated Stacking Heights | 8.5 mm, 5 mm, 6.5 mm, 5.5 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
LSHM-120 Series
| Part | Pitch [x] | Pitch [x] | Number of Rows | Features | Number of Positions | Contact Finish | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Mated Stacking Heights | Height Above Board [z] | Height Above Board [z] | Height Above Board | Height Above Board |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | 0.5 mm | 0.02 in | 2 | Board Guide | 40 | Gold | Surface Mount | 3 Áin | 0.076 Ám | Self Mating Non-Gendered Hermaphroditic | |||||
Samtec Inc. | 0.5 mm | 0.02 in | 2 | Board Guide Shielded | 40 | Gold | Surface Mount | 10 Áin | 0.25 Ám | Self Mating Non-Gendered Hermaphroditic | 8.5 mm 9 mm 10 mm 12 mm | 7.45 mm | 0.293 in | ||
Samtec Inc. | 0.5 mm | 0.02 in | 2 | Board Guide Pick and Place | 40 | Gold | Surface Mount Right Angle | 3 Áin | 0.076 Ám | Self Mating Non-Gendered Hermaphroditic | 0.202 in | 5.13 mm | |||
Samtec Inc. | 0.5 mm | 0.02 in | 2 | Board Guide | 40 | Gold | Surface Mount Right Angle | 10 Áin | 0.25 Ám | Self Mating Non-Gendered Hermaphroditic | 0.202 in | 5.13 mm | |||
Samtec Inc. | 0.5 mm | 0.02 in | 2 | Board Guide Pick and Place Shielded | 40 | Gold | Surface Mount | 10 Áin | 0.25 Ám | Self Mating Non-Gendered Hermaphroditic | 5 mm 5.5 mm 6.5 mm 8.5 mm | 3.96 mm | 0.156 in | ||
Samtec Inc. | 0.5 mm | 0.02 in | 2 | Board Guide | 40 | Gold | Surface Mount | 3 Áin | 0.076 Ám | Self Mating Non-Gendered Hermaphroditic | 5 mm 5.5 mm 6.5 mm 8.5 mm | 3.96 mm | 0.156 in | ||
Samtec Inc. | 0.5 mm | 0.02 in | 2 | Board Guide Pick and Place | 40 | Gold | 10 Áin | 0.25 Ám | Self Mating Non-Gendered Hermaphroditic | ||||||
Samtec Inc. | 0.5 mm | 0.02 in | 2 | Board Guide Pick and Place | 40 | Gold | Surface Mount | 3 Áin | 0.076 Ám | Self Mating Non-Gendered Hermaphroditic | 5 mm 5.5 mm 6.5 mm 8.5 mm | 3.96 mm | 0.156 in | ||
Samtec Inc. | 0.5 mm | 0.02 in | 2 | Board Guide Pick and Place Shielded | 40 | Gold | Surface Mount | 10 Áin | 0.25 Ám | Self Mating Non-Gendered Hermaphroditic | 8.5 mm 9 mm 10 mm 12 mm | 7.45 mm | 0.293 in | ||
Samtec Inc. | 0.5 mm | 0.02 in | 2 | Board Guide | 40 | Gold | Surface Mount | 3 Áin | 0.076 Ám | Self Mating Non-Gendered Hermaphroditic | 8.5 mm 9 mm 10 mm 12 mm | 7.45 mm | 0.293 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.67 | |
| 25 | $ 4.37 | |||
| 50 | $ 4.16 | |||
| 100 | $ 3.78 | |||
| Digi-Reel® | 1 | $ 4.67 | ||
| 25 | $ 4.37 | |||
| 50 | $ 4.16 | |||
| 100 | $ 3.78 | |||
| Tape & Reel (TR) | 800 | $ 3.34 | ||
| 1600 | $ 2.92 | |||
Description
General part information
LSHM-120 Series
40 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount Gold
