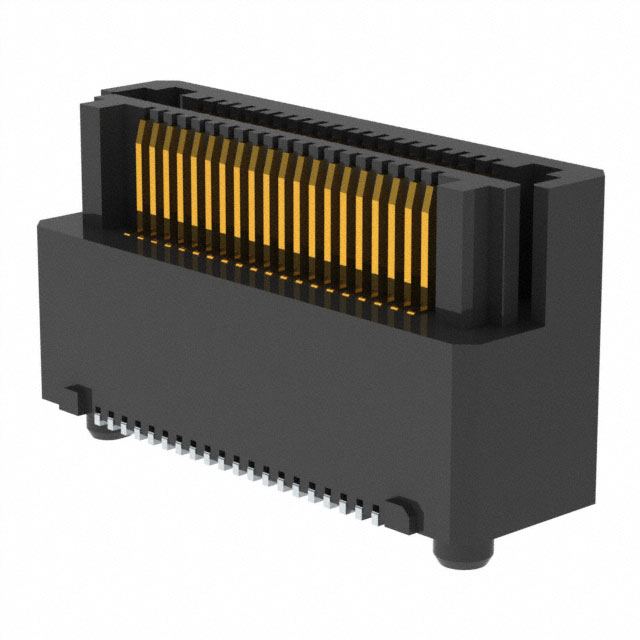

LSHM-120-06.0-F-DV-A-N-TR
ActiveSamtec Inc.
CONN SELF-MATE 40POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
LSHM-120-06.0-F-DV-A-N-TR
ActiveSamtec Inc.
CONN SELF-MATE 40POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LSHM-120-06.0-F-DV-A-N-TR |
|---|---|
| Connector Type | Self Mating, Non-Gendered, Hermaphroditic |
| Contact Finish | Gold |
| Contact Finish Thickness | 3 Áin |
| Contact Finish Thickness | 0.076 Ám |
| Features | Board Guide |
| Height Above Board [z] | 7.45 mm |
| Height Above Board [z] | 0.293 in |
| Mated Stacking Heights | 10 mm, 9 mm, 8.5 mm, 12 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.09 | |
| 25 | $ 4.77 | |||
| 50 | $ 4.53 | |||
| 100 | $ 4.12 | |||
| Digi-Reel® | 1 | $ 5.09 | ||
| 25 | $ 4.77 | |||
| 50 | $ 4.53 | |||
| 100 | $ 4.12 | |||
| Tape & Reel (TR) | 400 | $ 4.12 | ||
| 800 | $ 3.64 | |||
| 1200 | $ 3.18 | |||
| 2800 | $ 3.11 | |||
Description
General part information
LSHM-120 Series
40 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount Gold
