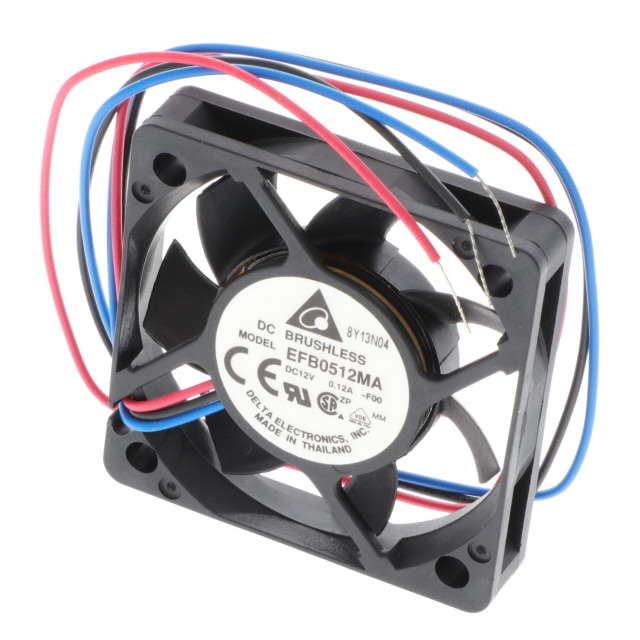

EFB0512MA-F00

Active

Delta Electronics

DC AXIAL FAN, 12 V, SQUARE, 50 MM, 10 MM, BALL BEARING, 9.21 CFM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

EFB0512MA-F00

Active

Delta Electronics

DC AXIAL FAN, 12 V, SQUARE, 50 MM, 10 MM, BALL BEARING, 9.21 CFM

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EFB0512MA-F00

Air Flow	0.258 m³/min
Air Flow	9.2 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	25 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
RPM	4500 RPM
Size / Dimension [x]	50 mm
Size / Dimension [z]	50 mm
Static Pressure	0.113 in H2O
Static Pressure	28.1 Pa
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	7 V
Weight	0.057 lb
Weight	25.85 g
Width [y]	10 mm

EFB0512 Series

Part	Termination	Width [y]	Lifetime @ Temp.	Approval Agency	Air Flow	Air Flow	RPM	Fan Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [x]	Static Pressure	Static Pressure	Power (Watts)	Material - Frame	Bearing Type	Current Rating (Amps)	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Voltage - Rated	Weight	Weight	Features	Noise	Size / Dimension [diameter]	Width [x]
Delta Electronics EFB0512HA-TP42	4 Wire Leads	10 mm	70000 Hrs	CE CSA UL VDE	0.319 m³/min	11.4 CFM	5500 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	50 mm	50 mm	41.6 Pa	0.167 in H2O	1.2 W	Plastic	Ball	100 mA	Plastic	10.8 VDC	12.6 VDC	12 VDC	0.057 lb	25.85 g	Locked Rotor Protection PWM Control Speed Sensor (Tach)	30 dB(A)
Delta Electronics EFB0512HA	2 Wire Leads	10 mm	70000 Hrs	CE CSA UL VDE	0.319 m³/min	11.4 CFM	5500 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	50 mm	50 mm	41.6 Pa	0.167 in H2O	1.2 W	Plastic	Ball	100 mA	Plastic	7 V	13.8 VDC	12 VDC	0.057 lb	25.85 g		30 dB(A)
Delta Electronics EFB0512HHAFAH	3 Wire Leads	9.8 mm	50000 Hrs	CE cURus VDE	0.21 mł/min	7.5 CFM	5000 RPM	Frameless Tubeaxial	70 °C	70 °C	-10 °C	-10 °C					1.56 W		Ball		Plastic	5 VDC	13.2 VDC	12 VDC	0.027 lb	12.25 g	Locked Rotor Protection Speed Sensor (Tach)	29.5 dB(A)	45 mm
Delta Electronics EFB0512HA-F00	3 Wire Leads	10 mm	70000 Hrs	CE CSA UL VDE	0.319 m³/min	11.4 CFM	5500 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	50 mm	50 mm	41.6 Pa	0.167 in H2O	1.2 W	Plastic	Ball	100 mA	Plastic	7 V	13.8 VDC	12 VDC	0.057 lb	25.85 g	Locked Rotor Protection Speed Sensor (Tach)	30 dB(A)
Delta Electronics EFB0512HHA	2 Wire Leads	10 mm	70000 Hrs	CE CSA UL VDE	0.381 mł/min	13.6 CFM	6500 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	50 mm	50 mm	57.8 Pa	0.232 in H2O	1.8 W	Plastic	Ball	150 mA	Plastic	7 V	13.8 VDC	12 VDC	0.057 lb	25.85 g		33.5 dB(A)
Delta Electronics EFB0512HHA-R00	3 Wire Leads	10 mm	70000 Hrs	CE CSA UL VDE	0.381 mł/min	13.6 CFM	6500 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	50 mm	50 mm	57.8 Pa	0.232 in H2O	1.8 W	Plastic	Ball	150 mA	Plastic	7 V	13.8 VDC	12 VDC	0.057 lb	25.85 g	Locked Rotor Sensor	33.5 dB(A)
Delta Electronics EFB0512VHBBBN	3 Wire Leads				0.367 mł/min	13.1 CFM	7600 RPM	Tubeaxial	105 °C	105 ░C	-40 °C	-40 °C	50 mm	50 mm	55.3 Pa	0.222 in H2O		Plastic	Ball		Plastic	9 V	16 V	13.5 VDC	0.078 lb	35.38 g	Locked Rotor Protection Speed Sensor (Tach)	35 dB		15 mm
Delta Electronics EFB0512LA	2 Wire Leads	10 mm	70000 Hrs	CE CSA UL VDE	0.21 mł/min	7.5 CFM	3500 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	50 mm	50 mm	17 Pa	0.068 in H2O	600 mW	Plastic	Ball	50 mA	Plastic	7 V	13.8 VDC	12 VDC	0.057 lb	25.85 g		18 dB(A)
Delta Electronics EFB0512HHA-F00	3 Wire Leads	10 mm	70000 Hrs	CE CSA UL VDE	0.381 mł/min	13.6 CFM	6500 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	50 mm	50 mm	57.8 Pa	0.232 in H2O	1.8 W	Plastic	Ball	150 mA	Plastic	7 V	13.8 VDC	12 VDC	0.057 lb	25.85 g	Locked Rotor Protection Speed Sensor (Tach)	33.5 dB(A)
Delta Electronics EFB0512MA-F00	3 Wire Leads	10 mm	70000 Hrs	CE CSA UL VDE	0.258 m³/min	9.2 CFM	4500 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	50 mm	50 mm	28.1 Pa	0.113 in H2O		Plastic	Ball		Plastic	7 V	13.8 VDC	12 VDC	0.057 lb	25.85 g	Locked Rotor Protection Speed Sensor (Tach)	25 dB(A)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 13.31
		10	$ 12.44
		25	$ 11.29
		50	$ 10.42
		100	$ 9.12
		492	$ 8.54
		984	$ 7.96
Newark	Each	1	$ 11.46
		1500	$ 10.92

Description

General part information

EFB0512 Series

Fan Tubeaxial 12VDC Square - 50mm L x 50mm H Ball 9.2 CFM (0.258m³/min) 3 Wire Leads
