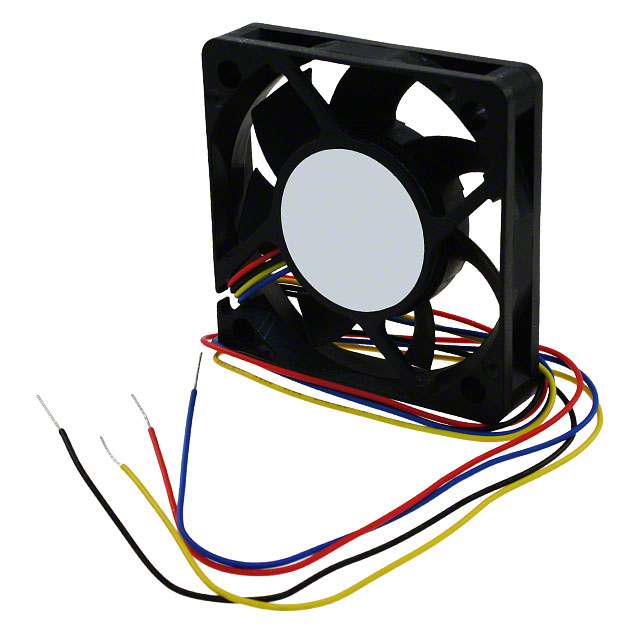

EFB0512HA-TP42

Obsolete

Delta Electronics

FAN AXIAL 50X10MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans, Electric - Component UL Cert Fans VDE Cert +2

EFB0512HA-TP42

Obsolete

Delta Electronics

FAN AXIAL 50X10MM 12VDC WIRE

Deep-Dive with AI

DocumentsFans, Electric - Component UL Cert Fans VDE Cert +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EFB0512HA-TP42

Air Flow	0.319 m³/min
Air Flow	11.4 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	100 mA
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	30 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	1.2 W
RPM	5500 RPM
Size / Dimension [x]	50 mm
Size / Dimension [z]	50 mm
Static Pressure	41.6 Pa
Static Pressure	0.167 in H2O
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	12.6 VDC
Voltage Range [Min]	10.8 VDC
Weight	0.057 lb
Weight	25.85 g
Width [y]	10 mm

EFB0512 Series

Part	Termination	Width [y]	Lifetime @ Temp.	Approval Agency	Air Flow	Air Flow	RPM	Fan Type	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [x]	Static Pressure	Static Pressure	Power (Watts)	Material - Frame	Bearing Type	Current Rating (Amps)	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Voltage - Rated	Weight	Weight	Features	Noise	Size / Dimension [diameter]	Width [x]
Delta Electronics EFB0512HA-TP42	4 Wire Leads	10 mm	70000 Hrs	CE CSA UL VDE	0.319 m³/min	11.4 CFM	5500 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	50 mm	50 mm	41.6 Pa	0.167 in H2O	1.2 W	Plastic	Ball	100 mA	Plastic	10.8 VDC	12.6 VDC	12 VDC	0.057 lb	25.85 g	Locked Rotor Protection PWM Control Speed Sensor (Tach)	30 dB(A)
Delta Electronics EFB0512HA	2 Wire Leads	10 mm	70000 Hrs	CE CSA UL VDE	0.319 m³/min	11.4 CFM	5500 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	50 mm	50 mm	41.6 Pa	0.167 in H2O	1.2 W	Plastic	Ball	100 mA	Plastic	7 V	13.8 VDC	12 VDC	0.057 lb	25.85 g		30 dB(A)
Delta Electronics EFB0512HHAFAH	3 Wire Leads	9.8 mm	50000 Hrs	CE cURus VDE	0.21 mł/min	7.5 CFM	5000 RPM	Frameless Tubeaxial	70 °C	70 °C	-10 °C	-10 °C					1.56 W		Ball		Plastic	5 VDC	13.2 VDC	12 VDC	0.027 lb	12.25 g	Locked Rotor Protection Speed Sensor (Tach)	29.5 dB(A)	45 mm
Delta Electronics EFB0512HA-F00	3 Wire Leads	10 mm	70000 Hrs	CE CSA UL VDE	0.319 m³/min	11.4 CFM	5500 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	50 mm	50 mm	41.6 Pa	0.167 in H2O	1.2 W	Plastic	Ball	100 mA	Plastic	7 V	13.8 VDC	12 VDC	0.057 lb	25.85 g	Locked Rotor Protection Speed Sensor (Tach)	30 dB(A)
Delta Electronics EFB0512HHA	2 Wire Leads	10 mm	70000 Hrs	CE CSA UL VDE	0.381 mł/min	13.6 CFM	6500 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	50 mm	50 mm	57.8 Pa	0.232 in H2O	1.8 W	Plastic	Ball	150 mA	Plastic	7 V	13.8 VDC	12 VDC	0.057 lb	25.85 g		33.5 dB(A)
Delta Electronics EFB0512HHA-R00	3 Wire Leads	10 mm	70000 Hrs	CE CSA UL VDE	0.381 mł/min	13.6 CFM	6500 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	50 mm	50 mm	57.8 Pa	0.232 in H2O	1.8 W	Plastic	Ball	150 mA	Plastic	7 V	13.8 VDC	12 VDC	0.057 lb	25.85 g	Locked Rotor Sensor	33.5 dB(A)
Delta Electronics EFB0512VHBBBN	3 Wire Leads				0.367 mł/min	13.1 CFM	7600 RPM	Tubeaxial	105 °C	105 ░C	-40 °C	-40 °C	50 mm	50 mm	55.3 Pa	0.222 in H2O		Plastic	Ball		Plastic	9 V	16 V	13.5 VDC	0.078 lb	35.38 g	Locked Rotor Protection Speed Sensor (Tach)	35 dB		15 mm
Delta Electronics EFB0512LA	2 Wire Leads	10 mm	70000 Hrs	CE CSA UL VDE	0.21 mł/min	7.5 CFM	3500 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	50 mm	50 mm	17 Pa	0.068 in H2O	600 mW	Plastic	Ball	50 mA	Plastic	7 V	13.8 VDC	12 VDC	0.057 lb	25.85 g		18 dB(A)
Delta Electronics EFB0512HHA-F00	3 Wire Leads	10 mm	70000 Hrs	CE CSA UL VDE	0.381 mł/min	13.6 CFM	6500 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	50 mm	50 mm	57.8 Pa	0.232 in H2O	1.8 W	Plastic	Ball	150 mA	Plastic	7 V	13.8 VDC	12 VDC	0.057 lb	25.85 g	Locked Rotor Protection Speed Sensor (Tach)	33.5 dB(A)
Delta Electronics EFB0512MA-F00	3 Wire Leads	10 mm	70000 Hrs	CE CSA UL VDE	0.258 m³/min	9.2 CFM	4500 RPM	Tubeaxial	70 °C	70 °C	-10 °C	-10 °C	50 mm	50 mm	28.1 Pa	0.113 in H2O		Plastic	Ball		Plastic	7 V	13.8 VDC	12 VDC	0.057 lb	25.85 g	Locked Rotor Protection Speed Sensor (Tach)	25 dB(A)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

EFB0512 Series

Fan Tubeaxial 12VDC Square - 50mm L x 50mm H Ball 11.4 CFM (0.319m³/min) 4 Wire Leads
