EFB0512HHA
ActiveDelta Electronics

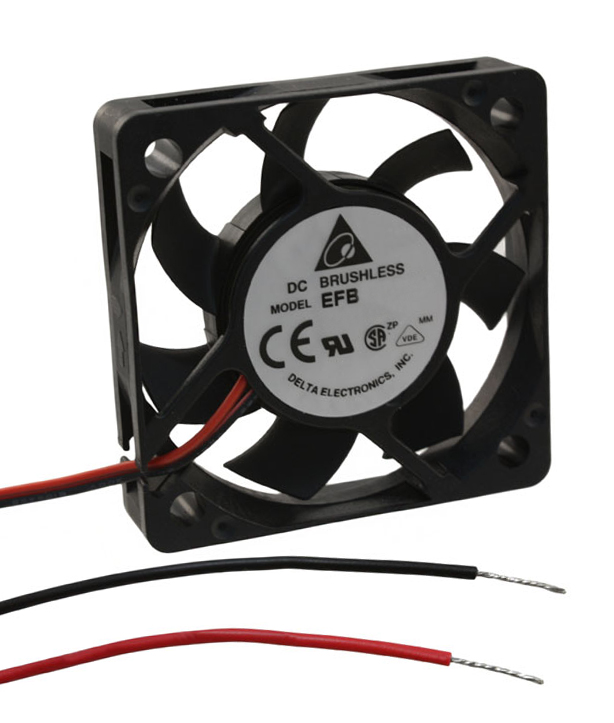

FAN AXIAL 50X10MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
EFB0512HHA
ActiveDelta Electronics
FAN AXIAL 50X10MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EFB0512HHA |
|---|---|
| Air Flow | 13.6 CFM |
| Air Flow | 0.381 mł/min |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 150 mA |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 33.5 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 1.8 W |
| RPM | 6500 RPM |
| Size / Dimension [x] | 50 mm |
| Size / Dimension [z] | 50 mm |
| Static Pressure | 0.232 in H2O |
| Static Pressure | 57.8 Pa |
| Termination | 2 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.8 VDC |
| Voltage Range [Min] | 7 V |
| Weight | 0.057 lb |
| Weight | 25.85 g |
| Width [y] | 10 mm |
EFB0512 Series
| Part | Termination | Width [y] | Lifetime @ Temp. | Approval Agency | Air Flow | Air Flow | RPM | Fan Type | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Size / Dimension [z] | Size / Dimension [x] | Static Pressure | Static Pressure | Power (Watts) | Material - Frame | Bearing Type | Current Rating (Amps) | Material - Blade | Voltage Range [Min] | Voltage Range [Max] | Voltage - Rated | Weight | Weight | Features | Noise | Size / Dimension [diameter] | Width [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics | 4 Wire Leads | 10 mm | 70000 Hrs | CE CSA UL VDE | 0.319 m³/min | 11.4 CFM | 5500 RPM | Tubeaxial | 70 °C | 70 °C | -10 °C | -10 °C | 50 mm | 50 mm | 41.6 Pa | 0.167 in H2O | 1.2 W | Plastic | Ball | 100 mA | Plastic | 10.8 VDC | 12.6 VDC | 12 VDC | 0.057 lb | 25.85 g | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 30 dB(A) | ||
Delta Electronics | 2 Wire Leads | 10 mm | 70000 Hrs | CE CSA UL VDE | 0.319 m³/min | 11.4 CFM | 5500 RPM | Tubeaxial | 70 °C | 70 °C | -10 °C | -10 °C | 50 mm | 50 mm | 41.6 Pa | 0.167 in H2O | 1.2 W | Plastic | Ball | 100 mA | Plastic | 7 V | 13.8 VDC | 12 VDC | 0.057 lb | 25.85 g | 30 dB(A) | |||
Delta Electronics | 3 Wire Leads | 9.8 mm | 50000 Hrs | CE cURus VDE | 0.21 mł/min | 7.5 CFM | 5000 RPM | Frameless Tubeaxial | 70 °C | 70 °C | -10 °C | -10 °C | 1.56 W | Ball | Plastic | 5 VDC | 13.2 VDC | 12 VDC | 0.027 lb | 12.25 g | Locked Rotor Protection Speed Sensor (Tach) | 29.5 dB(A) | 45 mm | |||||||
Delta Electronics | 3 Wire Leads | 10 mm | 70000 Hrs | CE CSA UL VDE | 0.319 m³/min | 11.4 CFM | 5500 RPM | Tubeaxial | 70 °C | 70 °C | -10 °C | -10 °C | 50 mm | 50 mm | 41.6 Pa | 0.167 in H2O | 1.2 W | Plastic | Ball | 100 mA | Plastic | 7 V | 13.8 VDC | 12 VDC | 0.057 lb | 25.85 g | Locked Rotor Protection Speed Sensor (Tach) | 30 dB(A) | ||
Delta Electronics | 2 Wire Leads | 10 mm | 70000 Hrs | CE CSA UL VDE | 0.381 mł/min | 13.6 CFM | 6500 RPM | Tubeaxial | 70 °C | 70 °C | -10 °C | -10 °C | 50 mm | 50 mm | 57.8 Pa | 0.232 in H2O | 1.8 W | Plastic | Ball | 150 mA | Plastic | 7 V | 13.8 VDC | 12 VDC | 0.057 lb | 25.85 g | 33.5 dB(A) | |||
Delta Electronics | 3 Wire Leads | 10 mm | 70000 Hrs | CE CSA UL VDE | 0.381 mł/min | 13.6 CFM | 6500 RPM | Tubeaxial | 70 °C | 70 °C | -10 °C | -10 °C | 50 mm | 50 mm | 57.8 Pa | 0.232 in H2O | 1.8 W | Plastic | Ball | 150 mA | Plastic | 7 V | 13.8 VDC | 12 VDC | 0.057 lb | 25.85 g | Locked Rotor Sensor | 33.5 dB(A) | ||
Delta Electronics | 3 Wire Leads | 0.367 mł/min | 13.1 CFM | 7600 RPM | Tubeaxial | 105 °C | 105 ░C | -40 °C | -40 °C | 50 mm | 50 mm | 55.3 Pa | 0.222 in H2O | Plastic | Ball | Plastic | 9 V | 16 V | 13.5 VDC | 0.078 lb | 35.38 g | Locked Rotor Protection Speed Sensor (Tach) | 35 dB | 15 mm | ||||||
Delta Electronics | 2 Wire Leads | 10 mm | 70000 Hrs | CE CSA UL VDE | 0.21 mł/min | 7.5 CFM | 3500 RPM | Tubeaxial | 70 °C | 70 °C | -10 °C | -10 °C | 50 mm | 50 mm | 17 Pa | 0.068 in H2O | 600 mW | Plastic | Ball | 50 mA | Plastic | 7 V | 13.8 VDC | 12 VDC | 0.057 lb | 25.85 g | 18 dB(A) | |||
Delta Electronics | 3 Wire Leads | 10 mm | 70000 Hrs | CE CSA UL VDE | 0.381 mł/min | 13.6 CFM | 6500 RPM | Tubeaxial | 70 °C | 70 °C | -10 °C | -10 °C | 50 mm | 50 mm | 57.8 Pa | 0.232 in H2O | 1.8 W | Plastic | Ball | 150 mA | Plastic | 7 V | 13.8 VDC | 12 VDC | 0.057 lb | 25.85 g | Locked Rotor Protection Speed Sensor (Tach) | 33.5 dB(A) | ||
Delta Electronics | 3 Wire Leads | 10 mm | 70000 Hrs | CE CSA UL VDE | 0.258 m³/min | 9.2 CFM | 4500 RPM | Tubeaxial | 70 °C | 70 °C | -10 °C | -10 °C | 50 mm | 50 mm | 28.1 Pa | 0.113 in H2O | Plastic | Ball | Plastic | 7 V | 13.8 VDC | 12 VDC | 0.057 lb | 25.85 g | Locked Rotor Protection Speed Sensor (Tach) | 25 dB(A) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 984 | $ 7.53 | |
Description
General part information
EFB0512 Series
Fan Tubeaxial 12VDC Square - 50mm L x 50mm H Ball 13.6 CFM (0.381m³/min) 2 Wire Leads
