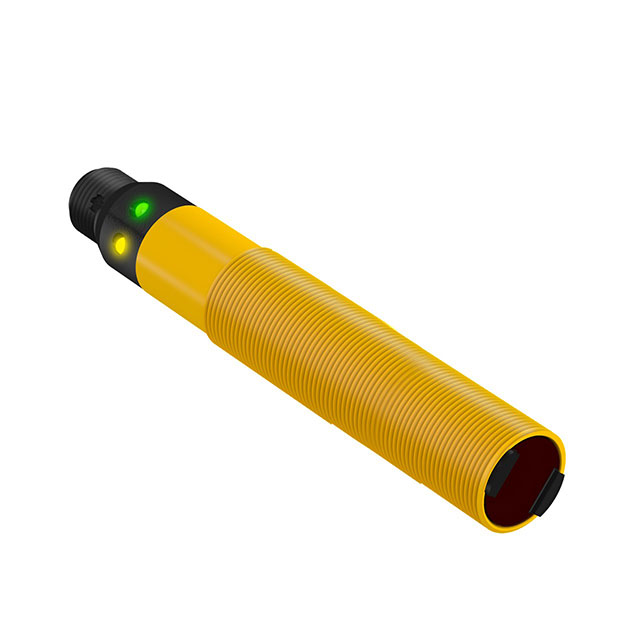

S18AW3FF100Q1

Active

BANNER ENGINEERING

EZ-BEAM S18 SERIES: FIXED FIELD

Search across all available documentation for this part.

Active

BANNER ENGINEERING

EZ-BEAM S18 SERIES: FIXED FIELD

Technical Specifications

Parameters and characteristics for this part

Part	Light Source	Connection Method	Sensing Method	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Response Time	Cable Length	Cable Length	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensing Distance	Sensing Distance	Output Configuration
BANNER ENGINEERING S18AW3D-81836	Infrared LED	Cable	Diffuse	-40 °C	70 °C	IEC IP67 IEC IP69K NEMA 6P	16 ms	78.74 in	2 m	20 VAC	250 VAC	3.937 in	100 mm
BANNER ENGINEERING S18AW3R	Infrared LED	Cable	Through-Beam	-40 °C	70 °C	IEC IP67 IEC IP69K NEMA 6P	16 ms	78.74 in	2 m	20 VAC	250 VAC	787.402 in	20 m
BANNER ENGINEERING S18AW3FF100Q1	Infrared LED	Connector	Background Suppression	-40 °C	70 °C	IEC IP69K NEMA 6P	16 ms			20 VAC	250 VAC	3.937 in	100 mm
BANNER ENGINEERING S18AW3D	Infrared LED	Cable	Diffuse	-40 °C	70 °C	IEC IP67 IEC IP69K NEMA 6P	16 ms	78.74 in	2 m	20 VAC	250 VAC	3.937 in	100 mm
BANNER ENGINEERING S18AW3L W/30	Infrared (950nm)	Cable with Connector	NonPolarized Retroreflective	-40 °C	70 °C	IEC IP67 IP69K NEMA 6P	16 ms	354.33 in	9 m	20 VAC	250 VAC	78.74 "	2 m	Light-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 170.00
Newark	Each	1	$ 173.00

General part information

Background Suppression Optical Sensor 3.937" (100mm)

Technical documentation and resources
