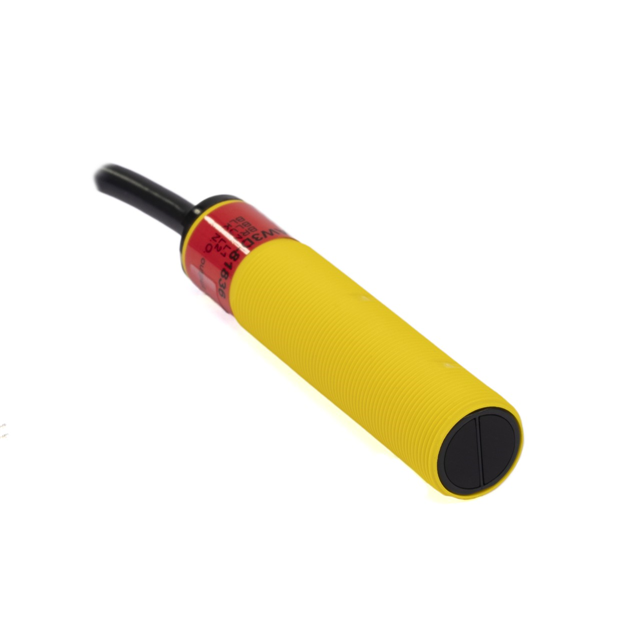

S18AW3D-81836

Active

BANNER ENGINEERING

PHOTO SEN DIFFUSED 100MM SPST

Search across all available documentation for this part.

Active

BANNER ENGINEERING

PHOTO SEN DIFFUSED 100MM SPST

Technical Specifications

Parameters and characteristics for this part

Part	Light Source	Connection Method	Sensing Method	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Response Time	Cable Length	Cable Length	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensing Distance	Sensing Distance	Output Configuration
BANNER ENGINEERING S18AW3D-81836	Infrared LED	Cable	Diffuse	-40 °C	70 °C	IEC IP67 IEC IP69K NEMA 6P	16 ms	78.74 in	2 m	20 VAC	250 VAC	3.937 in	100 mm
BANNER ENGINEERING S18AW3R	Infrared LED	Cable	Through-Beam	-40 °C	70 °C	IEC IP67 IEC IP69K NEMA 6P	16 ms	78.74 in	2 m	20 VAC	250 VAC	787.402 in	20 m
BANNER ENGINEERING S18AW3FF100Q1	Infrared LED	Connector	Background Suppression	-40 °C	70 °C	IEC IP69K NEMA 6P	16 ms			20 VAC	250 VAC	3.937 in	100 mm
BANNER ENGINEERING S18AW3D	Infrared LED	Cable	Diffuse	-40 °C	70 °C	IEC IP67 IEC IP69K NEMA 6P	16 ms	78.74 in	2 m	20 VAC	250 VAC	3.937 in	100 mm
BANNER ENGINEERING S18AW3L W/30	Infrared (950nm)	Cable with Connector	NonPolarized Retroreflective	-40 °C	70 °C	IEC IP67 IP69K NEMA 6P	16 ms	354.33 in	9 m	20 VAC	250 VAC	78.74 "	2 m	Light-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 90.00

General part information

Diffuse Optical Sensor 3.937" (100mm)

Technical documentation and resources
