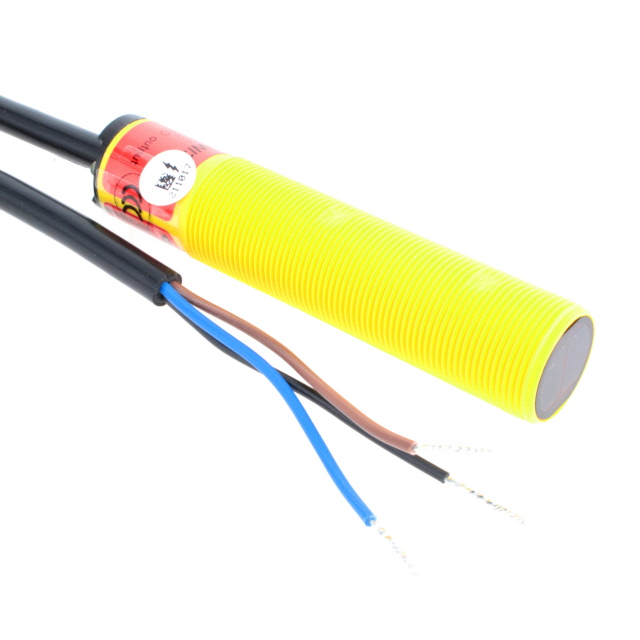

S18AW3L W/30

Active

BANNER ENGINEERING

RANGE: 2 M; INPUT: 20-250 V AC

Search across all available documentation for this part.

Active

BANNER ENGINEERING

RANGE: 2 M; INPUT: 20-250 V AC

Technical Specifications

Parameters and characteristics for this part

Specification	S18AW3L W/30

Cable Length	354.33 in
Cable Length	9 m
Connection Method	Cable with Connector
Ingress Protection	IP67, NEMA 6P, IP69K, IEC
Light Source	Infrared (950nm)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Light-On
Response Time	16 ms
Sensing Distance	78.74 "
Sensing Distance	2 m
Sensing Method	NonPolarized, Retroreflective
Voltage - Supply [Max]	250 VAC
Voltage - Supply [Min]	20 VAC

Part	Light Source	Connection Method	Sensing Method	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Response Time	Cable Length	Cable Length	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensing Distance	Sensing Distance	Output Configuration
BANNER ENGINEERING S18AW3D-81836	Infrared LED	Cable	Diffuse	-40 °C	70 °C	IEC IP67 IEC IP69K NEMA 6P	16 ms	78.74 in	2 m	20 VAC	250 VAC	3.937 in	100 mm
BANNER ENGINEERING S18AW3R	Infrared LED	Cable	Through-Beam	-40 °C	70 °C	IEC IP67 IEC IP69K NEMA 6P	16 ms	78.74 in	2 m	20 VAC	250 VAC	787.402 in	20 m
BANNER ENGINEERING S18AW3FF100Q1	Infrared LED	Connector	Background Suppression	-40 °C	70 °C	IEC IP69K NEMA 6P	16 ms			20 VAC	250 VAC	3.937 in	100 mm
BANNER ENGINEERING S18AW3D	Infrared LED	Cable	Diffuse	-40 °C	70 °C	IEC IP67 IEC IP69K NEMA 6P	16 ms	78.74 in	2 m	20 VAC	250 VAC	3.937 in	100 mm
BANNER ENGINEERING S18AW3L W/30	Infrared (950nm)	Cable with Connector	NonPolarized Retroreflective	-40 °C	70 °C	IEC IP67 IP69K NEMA 6P	16 ms	354.33 in	9 m	20 VAC	250 VAC	78.74 "	2 m	Light-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 122.00

General part information

Retroreflective, NonPolarized Optical Sensor 78.740" (2m) Light-On

Technical documentation and resources
