CSD87381PT

Active

Texas Instruments

30-V, N CHANNEL SYNCHRONOUS BUCK NEXFET™ POWER MOSFET, 3 MM X 2.5 MM LGA, 15 A

Find alt

Alpha

CSD87381PT

Active

Texas Instruments

30-V, N CHANNEL SYNCHRONOUS BUCK NEXFET™ POWER MOSFET, 3 MM X 2.5 MM LGA, 15 A

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

CSD87381 Series

The CSD87381P NexFET™ power block II is a highly optimized design for synchronous buck applications offering high current and high efficiency capability in a small 3 mm × 2.5 mm outline. Optimized for 5 V gate drive applications, this product offers an efficient and flexible solution capable of providing a high density power supply when paired with any 5 V gate driver from an external controller/driver.

Technical Specifications

Parameters and characteristics for this part

Specification	CSD87381PT

Channel Count	2
Configuration	N-Channel
Configuration - Features	Half Bridge
Current - Continuous Drain (Id)	15 A
Drain to Source Voltage (Vdss)	30 V
FET Feature	Logic Level Gate
Gate Charge (Max)	5 nC
Input Capacitance (Ciss) (Max)	564 pF
Mounting Type	Surface Mount
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-55 °C
Package / Case	5-LGA
Package Length	3 mm
Package Name	5-PTAB
Package Width	2.5 mm
Power - Max	4 VA
Rds On (Max)	16.3 mOhm
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max)	1.9 V

CSD87381 Series

Part	Gate Charge (Max)	Package / Case	Channel Count	Configuration - Features	Configuration	Package Name	Package Length	Package Width	Vgs(th) (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Rds On (Max)	Drain to Source Voltage (Vdss)	FET Feature	Power - Max	Mounting Type	Current - Continuous Drain (Id)	Input Capacitance (Ciss) (Max)	Technology	Total Output Count	Output Type	Non-Isolated Output Count	Board Type	Supplied Contents	Voltage - Input (Maximum)	Voltage - Input (Minimum)	Voltage - Output	Current - Output	Utilized IC / Part	Regulator Topology	Frequency - Switching	Main Purpose	Contents
Texas Instruments CSD87381P	5 nC	5-LGA	2	Half Bridge	N-Channel	5-PTAB	3 mm	2.5 mm	1.9 V	-55 °C	150 °C	16.3 mOhm	30 V	Logic Level Gate	4 VA	Surface Mount	15 A	564 pF	MOSFET (Metal Oxide)

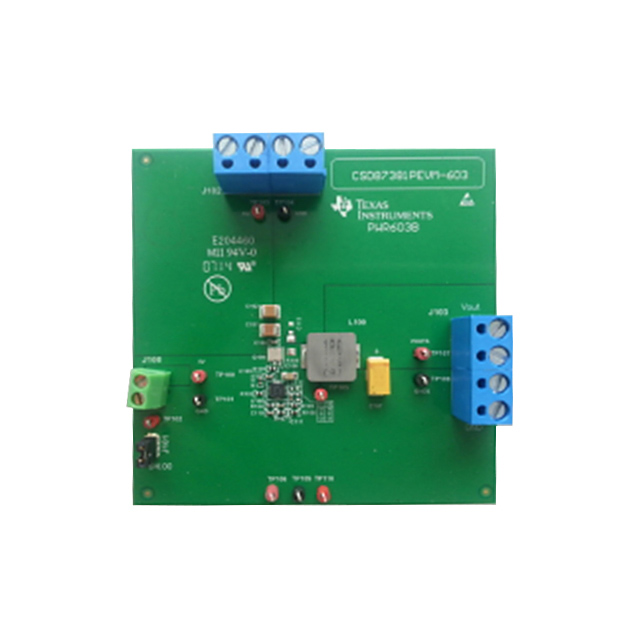

Texas Instruments CSD87381PEVM-603																				1	Non-Isolated	1 count	Fully Populated	Board(s)	20 V	8 V	1.35 V	15 A	CSD87381P TPS51219	Buck	300 kHz	DC/DC Step Down	Board
Texas Instruments CSD87381PT	5 nC	5-LGA	2	Half Bridge	N-Channel	5-PTAB	3 mm	2.5 mm	1.9 V	-55 °C	150 °C	16.3 mOhm	30 V	Logic Level Gate	4 VA	Surface Mount	15 A	564 pF	MOSFET (Metal Oxide)
