SRH3-4475

Active

AUTONICS

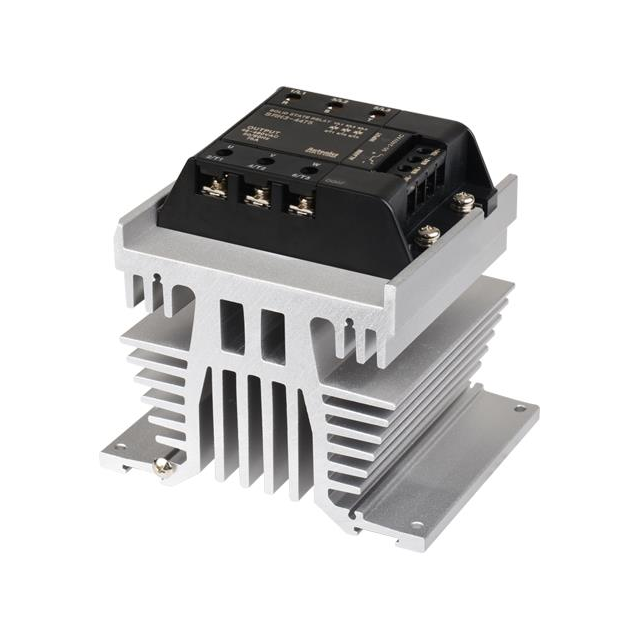

SSR RELAY 3PST-NO 75A 48-480V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SRH3-4475

Active

AUTONICS

SSR RELAY 3PST-NO 75A 48-480V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 243.00

Description

General part information

- Series

Solid State 3PST-NO (3 Form A) SSR with Integrated Heat Sink

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SRH3-4475	- Series

Circuit	3PST-NO (3 Form A)	SPST-NO (1 Form A), SPDT (1 Form C), 3PST-NO (3 Form A), DPDT (2 Form C)
Contact Rating @ Voltage	-	3 - 250 VAC
Delay Time	-	1 - 60 Sec
Delay Time	-	5 - 9990 Hrs
Delay Time	-	0.01 - 0.05 Sec
Delay Time	-	Fixed, Weekly, Yearly
Display Characters - Height	-	0.315 in
Display Characters - Height	-	8 mm
Display Characters - Height	-	10 - 14 mm
Display Characters - Height	-	0.394 - 0.551 in
Display Type	-	LED - Red Characters
Features	-	Pulse Meter
Function	-	On-Delay, Programmable (Multi-Function)
Load Current	75 A	15 - 75 A
Measuring Range	-	Multiple
Measuring Range	-	0 A
Measuring Range	-	20 mA
Measuring Type	-	Process
Mounting Type	Chassis Mount or Panel Mount	Chassis Mount, DIN Rail, Socketable, Panel Mount, Chassis Mount or Panel Mount
Number of Characters Per Row	-	4 - 5
Output Type	AC, Zero Cross	AC, Zero Cross, Solid State (5), BCD Output, Relay (3), PV Output, Solid State (5), BCD Output, Solid State (5), PV Output
Output Type	-	1.81 mOhm
Package / Case	SSR with Integrated Heat Sink	SSR with Integrated Heat Sink, Module
Panel Cutout Dimensions	-	45 - 92 mm
Panel Cutout Dimensions	-	22.2 - 68 mm
Relay Type	-	Solid State Relay, Mechanical Relay
Supplier Device Package	Module	Module
Termination Style	Screw Terminal	Plug In, 8 Pin (Octal), Screw Terminal
Timing Adjustment Method	-	Hand Dial, DIP Switches, Up/Down Digit Keys
Timing Initiate Method	-	Input Voltage
Type	-	Process Meter
Voltage - Input	-	24 VAC
Voltage - Input [Max]	240 VAC	30 - 240 VAC
Voltage - Input [Min]	90 VAC	4 - 90 VAC
Voltage - Load [Max]	480 V	240 - 480 V
Voltage - Load [Min]	48 V	24 - 48 V
Voltage - Supply	-	24 - 240 VAC
Voltage - Supply	-	12 - 110 VAC
Voltage - Supply	-	12 - 24 VDC
Voltage - Supply	-	Loop Power

- Series

RELAY TIME DELAY 6SEC 3A 250V
