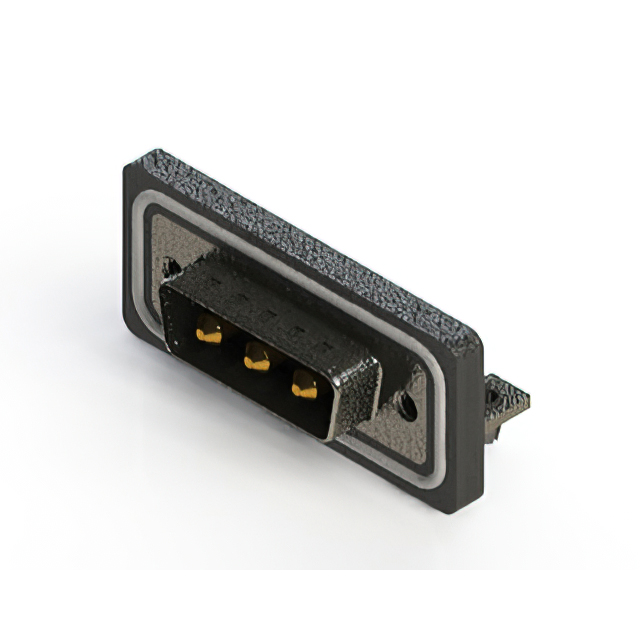

Specification	629W3W3-340-1NB

Color	Black
Connector Layout	A, DA
Connector Style	Combo, D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Material	Copper Alloy
Contact Type	Power
Current Rating	10 A
Dielectric Material	Glass Filled, Polybutylene Terephthalate (PBT)
Features	Mounting Brackets, Filter, Board Lock, Shielded, Grounding Indents
Finish	Nickel Plated
Flange Feature	Shell (M3), Housing
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Through Hole, Right Angle
Number of Positions	3
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Part Code	3W3
Position Types	Power
Shell Material	Steel
Shell Size	2
Termination	Solder
Voltage Rating	125 V

629W3W Series

...

Part	Ingress Protection Description	Ingress Protection IP Rating	Flange Feature	Shell Material	Finish	Features	Number of Positions	Position Types	Contact Type	Current Rating	Mounting Type	Material Flammability Rating	Contact Finish	Number of Rows	Shell Size	Connector Layout	Part Code	Termination	Connector Style	Connector Type	Contact Finish Thickness	Operating Temperature (Max)	Operating Temperature (Min)	Contact Material	Voltage Rating	Dielectric Material	Color
EDAC Inc. 629W3W3-340-3N3	Dust Tight Waterproof	IP67	Housing Shell (4-40)	Steel	Nickel Plated	Board Lock Grounding Indents Mounting Brackets Shielded	3	Power	Power	30 A	Panel Mount Right Angle Through Hole	UL94 V-0	Gold	1	2	A DA	3W3	Solder	Combo D-Sub	Male Pins Plug	15 µin	125 °C	-55 °C	Copper Alloy	125 V	Glass Filled Polybutylene Terephthalate (PBT)	Black
EDAC Inc. 629W3W3-640-4N4	Dust Tight Waterproof	IP67	Housing Shell (4-40)	Steel	Nickel Plated	Grounding Indents Mounting Brackets Shielded	3	Power	Power	40 A	Panel Mount Right Angle Through Hole	UL94 V-0	Gold	1	2	A DA	3W3	Solder	Combo D-Sub	Male Pins Plug	30 µin	125 °C	-55 °C	Copper Alloy	125 V	Glass Filled Polybutylene Terephthalate (PBT)	Black
EDAC Inc. 629W3WK3640-3NB	Dust Tight Waterproof	IP67	Housing Shell (M3)	Steel	Nickel Plated	Board Lock Filter Grounding Indents Mounting Brackets Shielded	3	Power	Power	30 A	Panel Mount Right Angle Through Hole	UL94 V-0	Gold	1	2	3WK3 A DA		Solder	Combo D-Sub	Female Sockets Male Pins Plug	30 µin	125 °C	-55 °C	Copper Alloy	125 V	Glass Filled Polybutylene Terephthalate (PBT)	Black
EDAC Inc. 629W3W3-140-4NC	Dust Tight Waterproof	IP67	Housing Shell (M3)	Steel	Nickel Plated	Grounding Indents Mounting Brackets Shielded	3	Power	Power	40 A	Right Angle Through Hole	UL94 V-0	Gold	1	2	A DA	3W3	Solder	Combo D-Sub	Male Pins Plug	5 µin	125 °C	-55 °C	Copper Alloy	125 V	Glass Filled Polybutylene Terephthalate (PBT)	Black
EDAC Inc. 629W3WK3140-3N3	Dust Tight Waterproof	IP67	Housing Shell (4-40)	Steel	Nickel Plated	Board Lock Grounding Indents Mounting Brackets Shielded	3	Power	Power	30 A	Panel Mount Right Angle Through Hole	UL94 V-0	Gold	1	2	3WK3 A DA		Solder	Combo D-Sub	Female Sockets Male Pins Plug	5 µin	125 °C	-55 °C	Copper Alloy	125 V	Glass Filled Polybutylene Terephthalate (PBT)	Black
EDAC Inc. 629W3WK3640-4N2	Dust Tight Waterproof	IP67	Housing Shell (4-40)	Steel	Nickel Plated	Grounding Indents Shielded	3	Power	Power	40 A	Panel Mount Right Angle Through Hole	UL94 V-0	Gold	1	2	3WK3 A DA		Solder	Combo D-Sub	Female Sockets Male Pins Plug	30 µin	125 °C	-55 °C	Copper Alloy	125 V	Glass Filled Polybutylene Terephthalate (PBT)	Black
EDAC Inc. 629W3WK3140-2N2	Dust Tight Waterproof	IP67	Housing Shell (4-40)	Steel	Nickel Plated	Grounding Indents Shielded	3	Power	Power	20 A	Panel Mount Right Angle Through Hole	UL94 V-0	Gold	1	2	3WK3 A DA		Solder	Combo D-Sub	Female Sockets Male Pins Plug	5 µin	125 °C	-55 °C	Copper Alloy	125 V	Glass Filled Polybutylene Terephthalate (PBT)	Black
EDAC Inc. 629W3W3-140-3NB	Dust Tight Waterproof	IP67	Housing Shell (M3)	Steel	Nickel Plated	Board Lock Filter Grounding Indents Mounting Brackets Shielded	3	Power	Power	30 A	Panel Mount Right Angle Through Hole	UL94 V-0	Gold	1	2	A DA	3W3	Solder	Combo D-Sub	Male Pins Plug	5 µin	125 °C	-55 °C	Copper Alloy	125 V	Glass Filled Polybutylene Terephthalate (PBT)	Black
EDAC Inc. 629W3WK3140-2NA	Dust Tight Waterproof	IP67	Housing Shell (M3)	Steel	Nickel Plated	Grounding Indents Shielded	3	Power	Power	20 A	Panel Mount Right Angle Through Hole	UL94 V-0	Gold	1	2	3WK3 A DA		Solder	Combo D-Sub	Female Sockets Male Pins Plug	5 µin	125 °C	-55 °C	Copper Alloy	125 V	Glass Filled Polybutylene Terephthalate (PBT)	Black
EDAC Inc. 629W3W3-140-1N2	Dust Tight Waterproof	IP67	Housing Shell (4-40)	Steel	Nickel Plated	Grounding Indents Shielded	3	Power	Power	10 A	Panel Mount Right Angle Through Hole	UL94 V-0	Gold	1	2	A DA	3W3	Solder	Combo D-Sub	Male Pins Plug	5 µin	125 °C	-55 °C	Copper Alloy	125 V	Glass Filled Polybutylene Terephthalate (PBT)	Black
