629W3WK3140-2N2

Active

EDAC Inc.

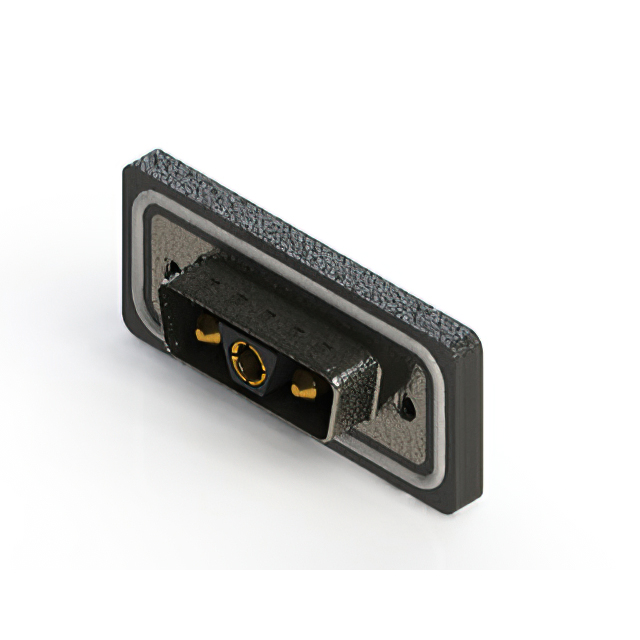

CONN D-SUB PLUG 3POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

629W3WK3140-2N2

Active

EDAC Inc.

CONN D-SUB PLUG 3POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629W3WK3140-2N2

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Male Pins, Plug, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.127 µm
Contact Finish Thickness	5 µin
Contact Material	Copper Alloy
Contact Type	Power
Current Rating (Amps)	20 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents, Shielded
Flange Feature	Housing/Shell (4-40)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	3
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2 (DA, A) - 3WK3
Termination	Solder
Voltage Rating	125 VDC

629W3W Series

...

Part	Shell Material, Finish	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Termination	Contact Finish	Voltage Rating	Connector Style	Material Flammability Rating	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Rows	Features	Ingress Protection	Connector Type	Mounting Type	Flange Feature	Color	Current Rating (Amps)	Dielectric Material	Shell Size, Connector Layout
EDAC Inc. 629W3W3-640-4N4	Nickel Plated Steel	Copper Alloy	-55 °C	125 °C	Power	3	0.76 Ám	30 Áin	Solder	Gold	125 VDC	Combo D-Sub	UL94 V-0	2 (DA A)	3W3	1	Grounding Indents Mounting Brackets Shielded	IP67 - Dust Tight Waterproof	Male Pins Plug	Panel Mount Right Angle Through Hole	Housing/Shell (4-40)	Black	40 A	Polybutylene Terephthalate (PBT) Glass Filled
EDAC Inc. 629W3WK3640-3NB	Nickel Plated Steel	Copper Alloy	-55 °C	125 °C	Power	3	0.76 Ám	30 Áin	Solder	Gold	125 VDC	Combo D-Sub	UL94 V-0			1	Board Lock Filter Grounding Indents Mounting Brackets Shielded	IP67 - Dust Tight Waterproof	Female Sockets Male Pins Plug	Panel Mount Right Angle Through Hole	Housing/Shell (M3)	Black	30 A	Polybutylene Terephthalate (PBT) Glass Filled	2 (DA A) - 3WK3
EDAC Inc. 629W3W3-140-4NC	Nickel Plated Steel	Copper Alloy	-55 °C	125 °C	Power	3	0.127 µm	5 µin	Solder	Gold	125 VDC	Combo D-Sub	UL94 V-0	2 (DA A)	3W3	1	Grounding Indents Mounting Brackets Shielded	IP67 - Dust Tight Waterproof	Male Pins Plug	Through Hole Right Angle	Housing/Shell (M3)	Black	40 A	Polybutylene Terephthalate (PBT) Glass Filled
EDAC Inc. 629W3WK3640-4N2	Nickel Plated Steel	Copper Alloy	-55 °C	125 °C	Power	3	0.76 Ám	30 Áin	Solder	Gold	125 VDC	Combo D-Sub	UL94 V-0			1	Grounding Indents Shielded	IP67 - Dust Tight Waterproof	Female Sockets Male Pins Plug	Panel Mount Right Angle Through Hole	Housing/Shell (4-40)	Black	40 A	Polybutylene Terephthalate (PBT) Glass Filled	2 (DA A) - 3WK3
EDAC Inc. 629W3WK3140-2N2	Nickel Plated Steel	Copper Alloy	-55 °C	125 °C	Power	3	0.127 µm	5 µin	Solder	Gold	125 VDC	Combo D-Sub	UL94 V-0			1	Grounding Indents Shielded	IP67 - Dust Tight Waterproof	Female Sockets Male Pins Plug	Panel Mount Right Angle Through Hole	Housing/Shell (4-40)	Black	20 A	Polybutylene Terephthalate (PBT) Glass Filled	2 (DA A) - 3WK3
EDAC Inc. 629W3W3-140-3NB	Nickel Plated Steel	Copper Alloy	-55 °C	125 °C	Power	3	0.127 µm	5 µin	Solder	Gold	125 VDC	Combo D-Sub	UL94 V-0	2 (DA A)	3W3	1	Board Lock Filter Grounding Indents Mounting Brackets Shielded	IP67 - Dust Tight Waterproof	Male Pins Plug	Panel Mount Right Angle Through Hole	Housing/Shell (M3)	Black	30 A	Polybutylene Terephthalate (PBT) Glass Filled
EDAC Inc. 629W3W3-140-1N2	Nickel Plated Steel	Copper Alloy	-55 °C	125 °C	Power	3	0.127 µm	5 µin	Solder	Gold	125 VDC	Combo D-Sub	UL94 V-0	2 (DA A)	3W3	1	Grounding Indents Shielded	IP67 - Dust Tight Waterproof	Male Pins Plug	Panel Mount Right Angle Through Hole	Housing/Shell (4-40)	Black	10 A	Polybutylene Terephthalate (PBT) Glass Filled
EDAC Inc. 629W3W3-340-3N4	Nickel Plated Steel	Copper Alloy	-55 °C	125 °C	Power	3	0.38 µm	15 µin	Solder	Gold	125 VDC	Combo D-Sub	UL94 V-0	2 (DA A)	3W3	1	Grounding Indents Mounting Brackets Shielded	IP67 - Dust Tight Waterproof	Male Pins Plug	Panel Mount Right Angle Through Hole	Housing/Shell (4-40)	Black	30 A	Polybutylene Terephthalate (PBT) Glass Filled
EDAC Inc. 629W3W3-340-1N2	Nickel Plated Steel	Copper Alloy	-55 °C	125 °C	Power	3	0.38 µm	15 µin	Solder	Gold	125 VDC	Combo D-Sub	UL94 V-0	2 (DA A)	3W3	1	Grounding Indents Shielded	IP67 - Dust Tight Waterproof	Male Pins Plug	Panel Mount Right Angle Through Hole	Housing/Shell (4-40)	Black	10 A	Polybutylene Terephthalate (PBT) Glass Filled
EDAC Inc. 629W3WK3640-3NA	Nickel Plated Steel	Copper Alloy	-55 °C	125 °C	Power	3	0.76 Ám	30 Áin	Solder	Gold	125 VDC	Combo D-Sub	UL94 V-0			1	Grounding Indents Shielded	IP67 - Dust Tight Waterproof	Female Sockets Male Pins Plug	Panel Mount Right Angle Through Hole	Housing/Shell (M3)	Black	30 A	Polybutylene Terephthalate (PBT) Glass Filled	2 (DA A) - 3WK3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	200	$ 14.09

Description

General part information

629W3W Series

3 (Power) Position D-Sub, Combo Plug, Female Sockets and Male Pins Connector
